United States

RDS 3 #3/8 "No. 3 Molded Applicator rod 6.9μm Spreader rod

SE
The production process is formed, the wet film thickness is 6.9 μm, the diameter is 9.52mm, the Total length is 400mm, the width of the Spreader is 300mm, and the material is stainless steel.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 3# 3/8" Applicator rod 3/8 "SPEC

RDS 3# 3/8" Applicator rod 3/8 "Details

RDS 3# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033696
Production process
Formed
WFT
6.9µm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
3# 3/8"
Applicator rod 3/8 "
The production process is formed, the wet film thickness is 6.9 μm, the diameter is 9.52mm, the Total length is 400mm, the width of the Spreader is 300mm, and the material is stainless steel.

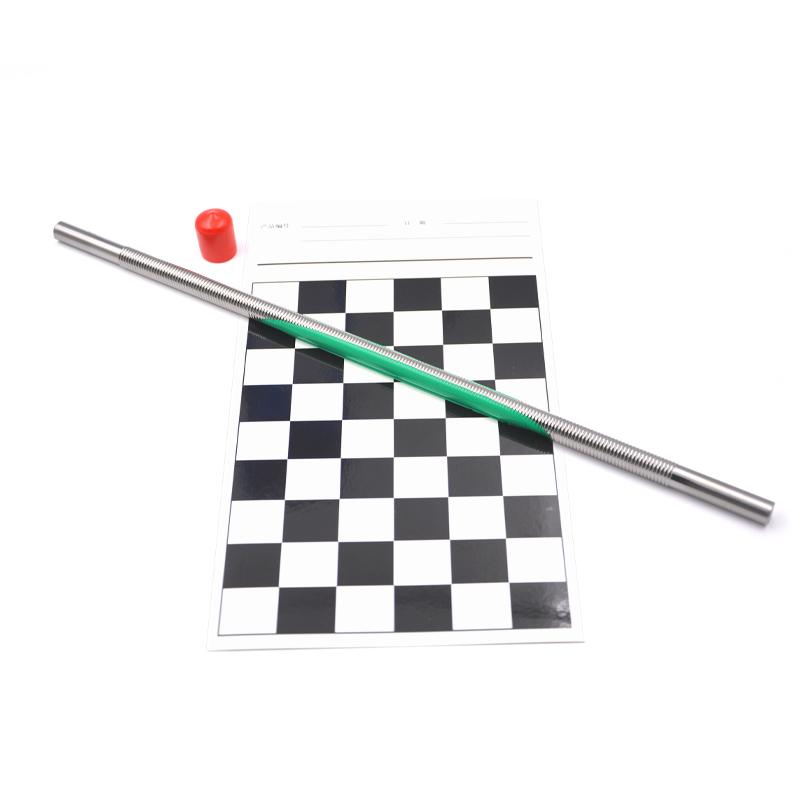

RDS 3 #3/8 "No. 3 Molded Applicator rod 6.9μm Spreader rod Picture

Product description

The RDS wire rod coater is an imported high-precision coating rod. RDS3# is the hot-selling coating thickness rod number. The coating thickness is 6.9 μm and the rod diameter is 9.52mm. It is the most popular rod diameter for domestic (CN) users. series. The RDS forming coating rod adopts the extrusion process, which has the advantages of continuous wire and easy cleaning. The coating effect is the same as that of the wire-wound rod. The coating accuracy is 0.1 μm, and there is no need to be equipped with a coating handle. part.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

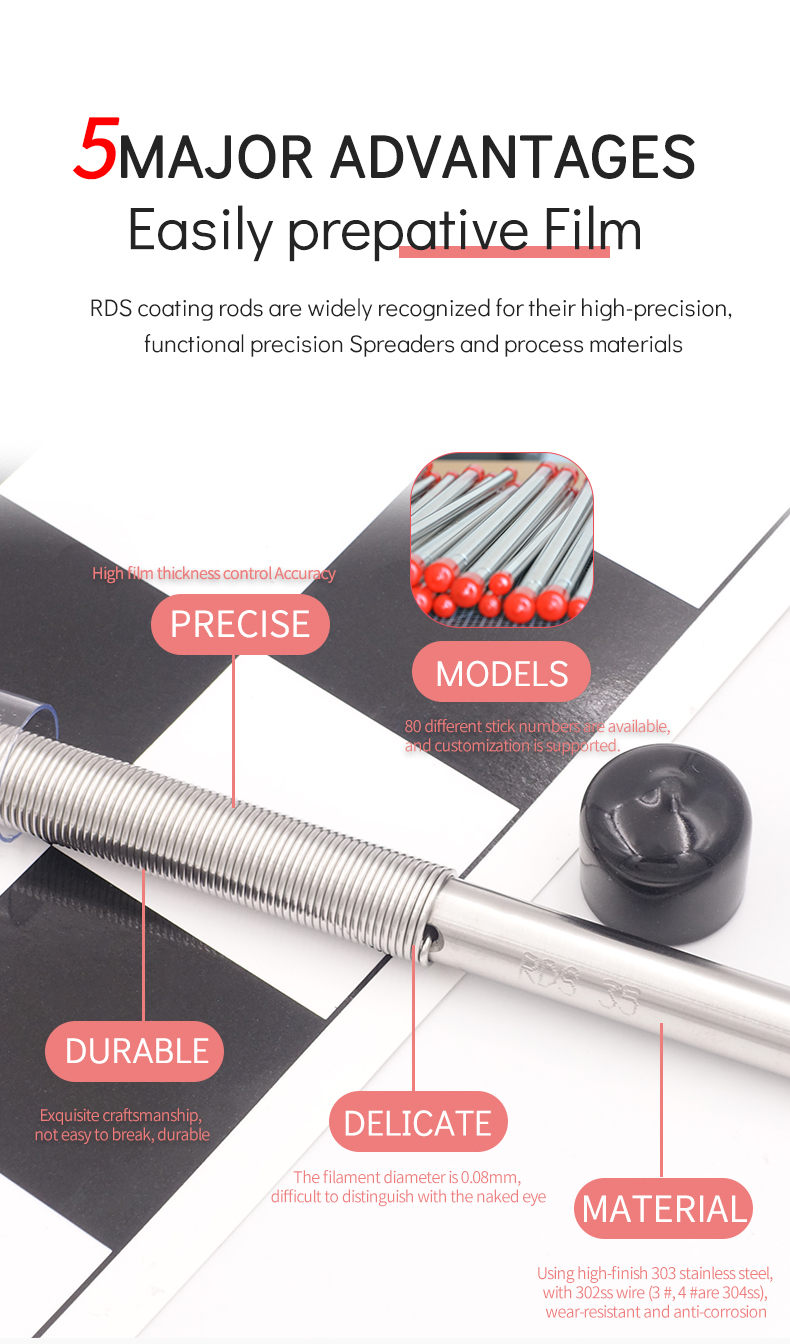

RDS coating Rods Figure 3

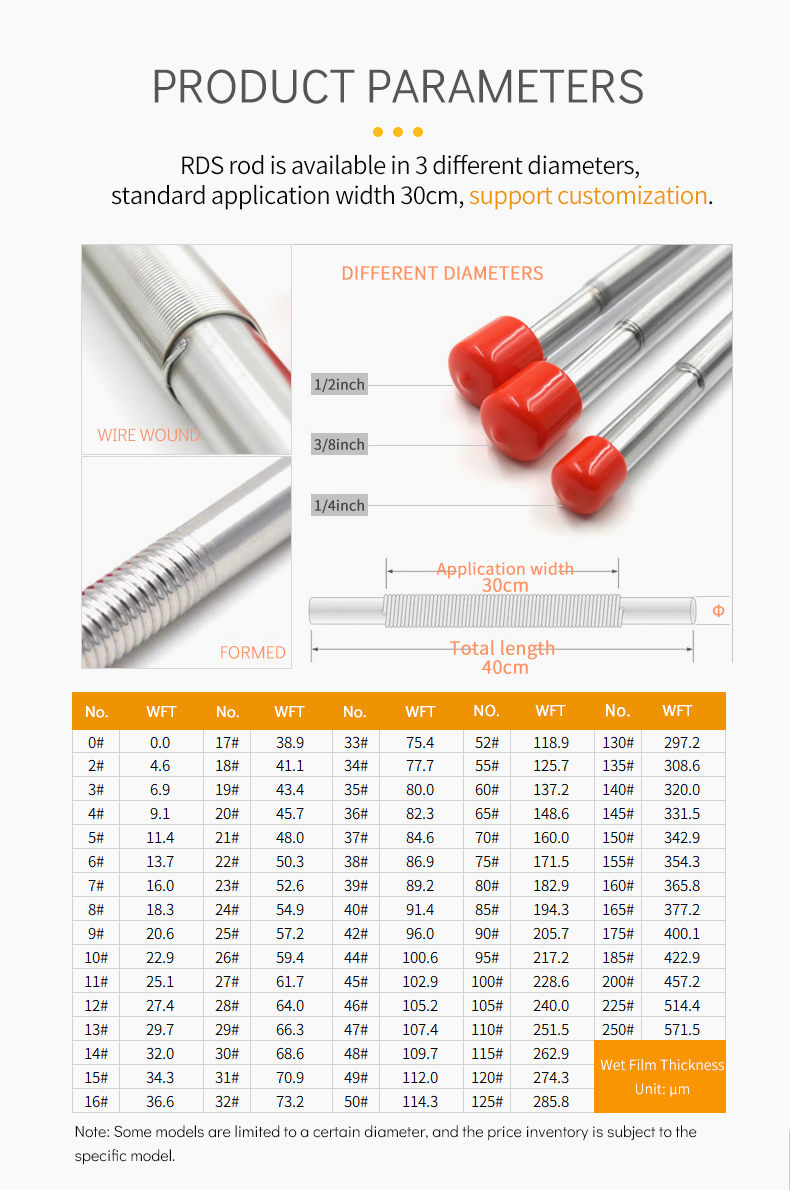

RDS coating Rods Figure 4

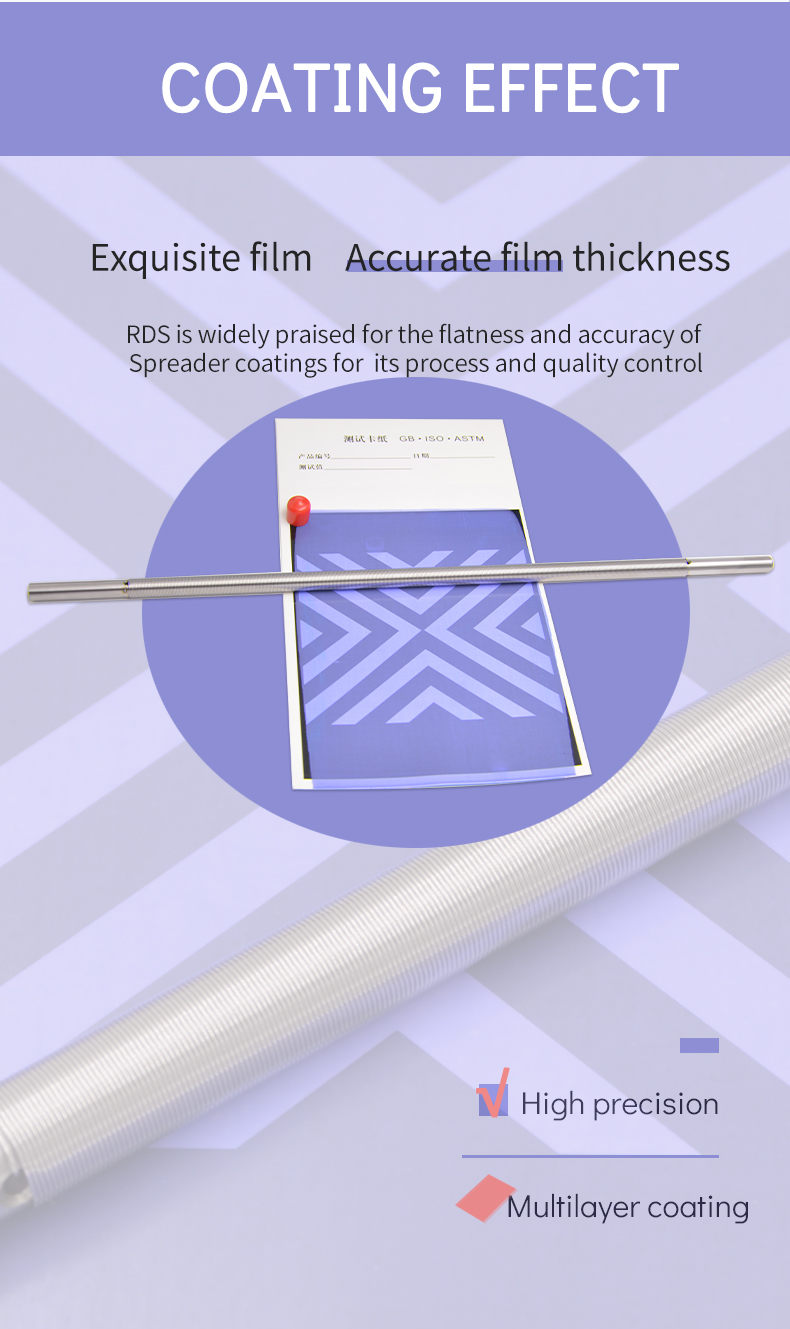

RDS coating Rods Figure 5

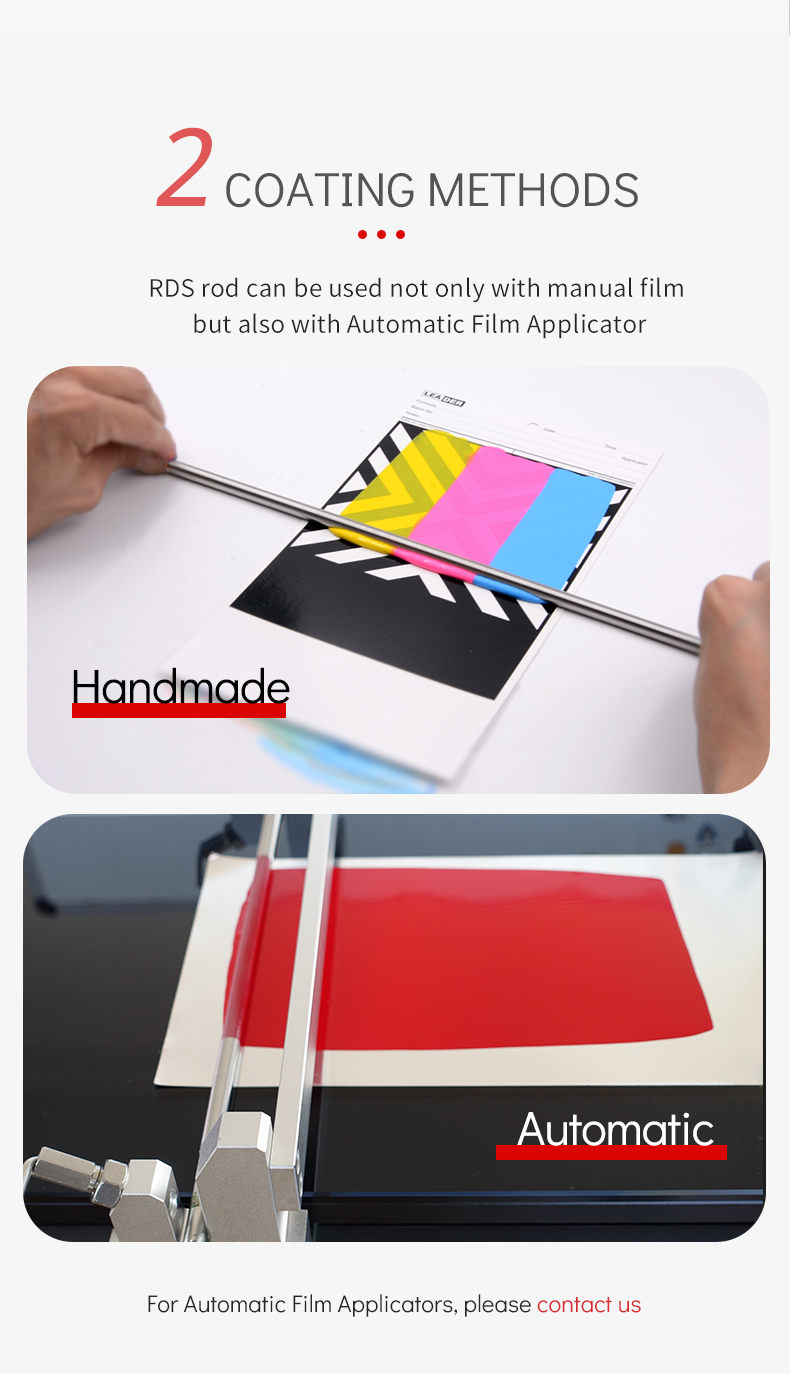

RDS coating Rods Figure 6

RDS coating Rods Figure 7

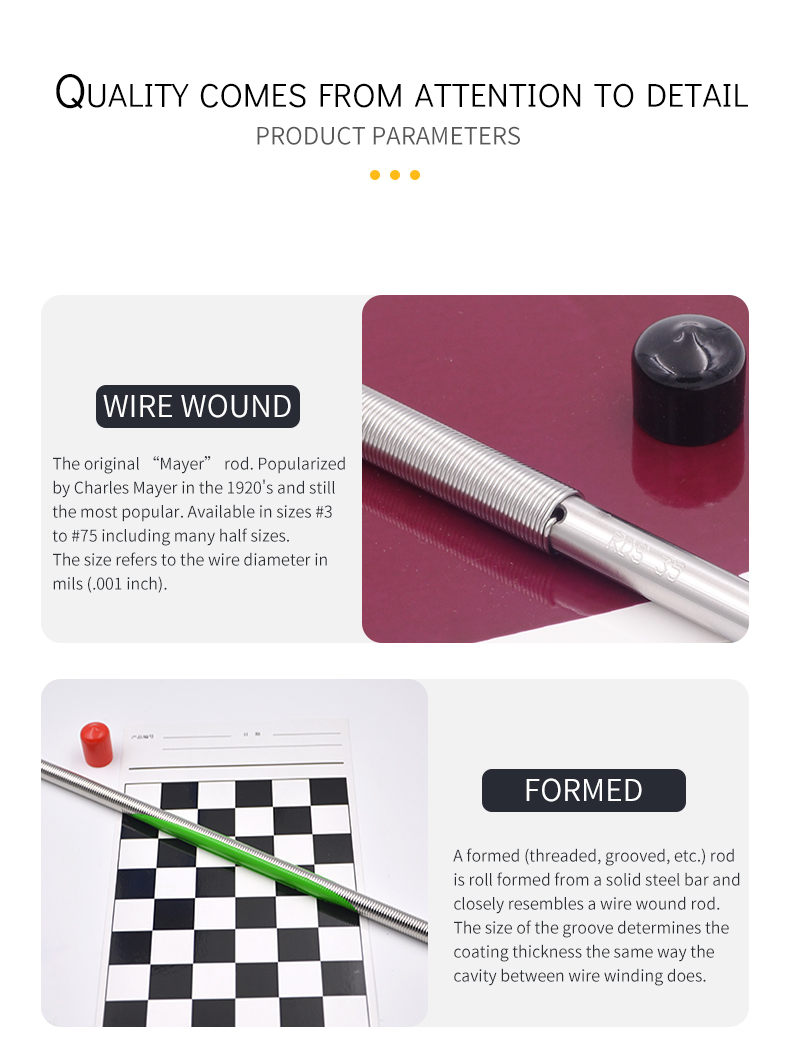

RDS coating Rods Figure 8

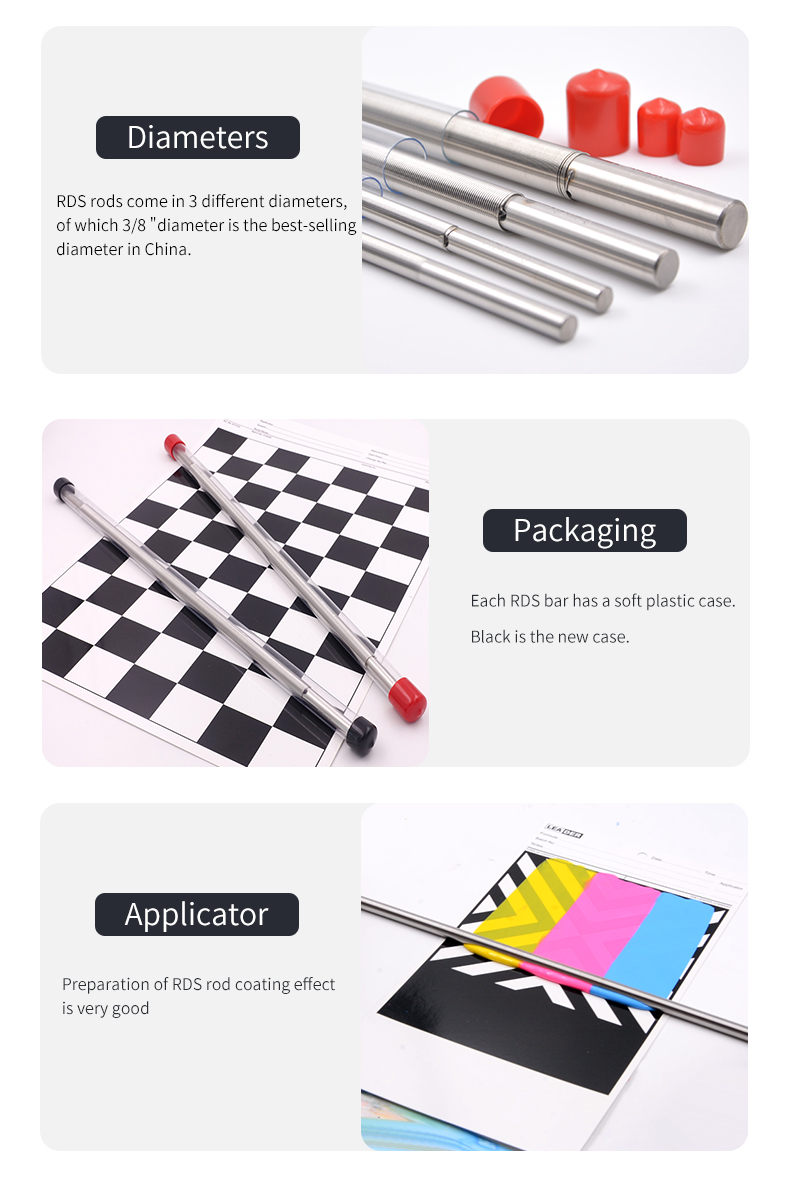

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QHow to calculate the thickness of the Spreader, the solid content is 1%, and the number three stick is selected for each square greater than 4g, is that okay?
A Can be https://tool.nbchao.com/mohou/calculated by wet film thickness calculator
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
