QXP0-100S double-channel Fineness Gauge YONGLIDA QXP Fineness Gauge
SEDouble-channel type, range 0~100μm, scale unit μm, scraper material Cr12 molybdenum vanadium, Graduation 10μm. Special for Coating Fineness Testing.
$192.00/piece
PromotionLoading...
Coupon
Model：
QXP0-100S
Similar products
-
JINGKELIAN QXP 0-100um double-channel Fineness of Ground Gauge with Third Party Measurement Certificate$ 245.00SE -
TQC VF2107 single-channe grinding Fineness of Grinding Gauge 0~100μm with calibrated certificate$ 1044.00SE -
TQC VF2113 double-channel fineness grindometer 0-100 µm with calibrated certificate$ 980.00SE -
Pushen ISO-100um double-channel ISO Fineness gauge 0-100μm$ 192.00SE -
MODERNER QXD-100 small double-channel qxd Fineness gauge 100 micron pigment Fineness gauge
YongLiDa QXP0-100S ISO Grindometer (double-channel)SPEC
YongLiDa QXP0-100S ISO Grindometer (double-channel)Details

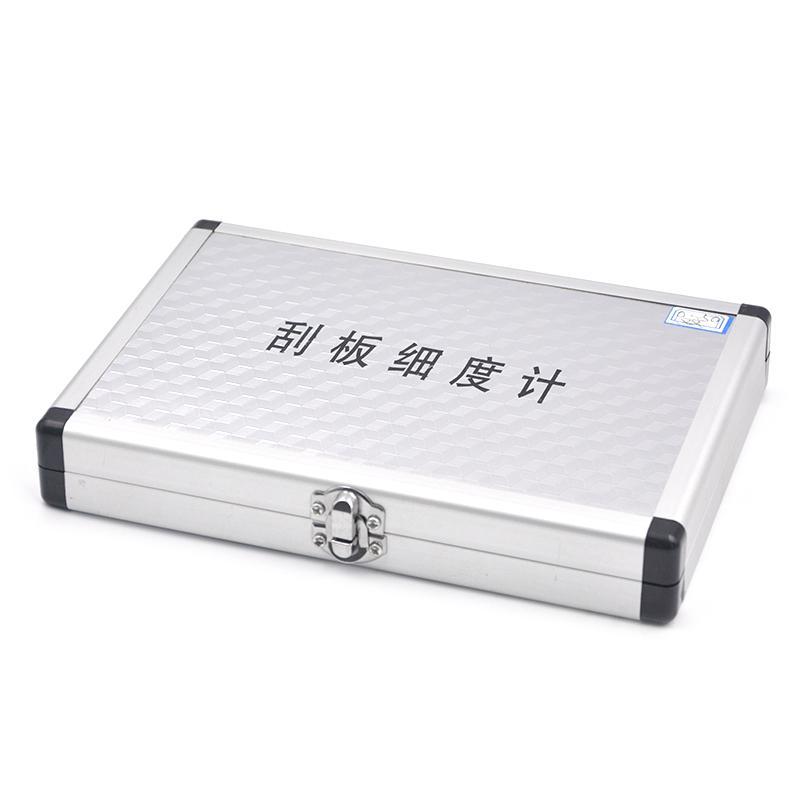

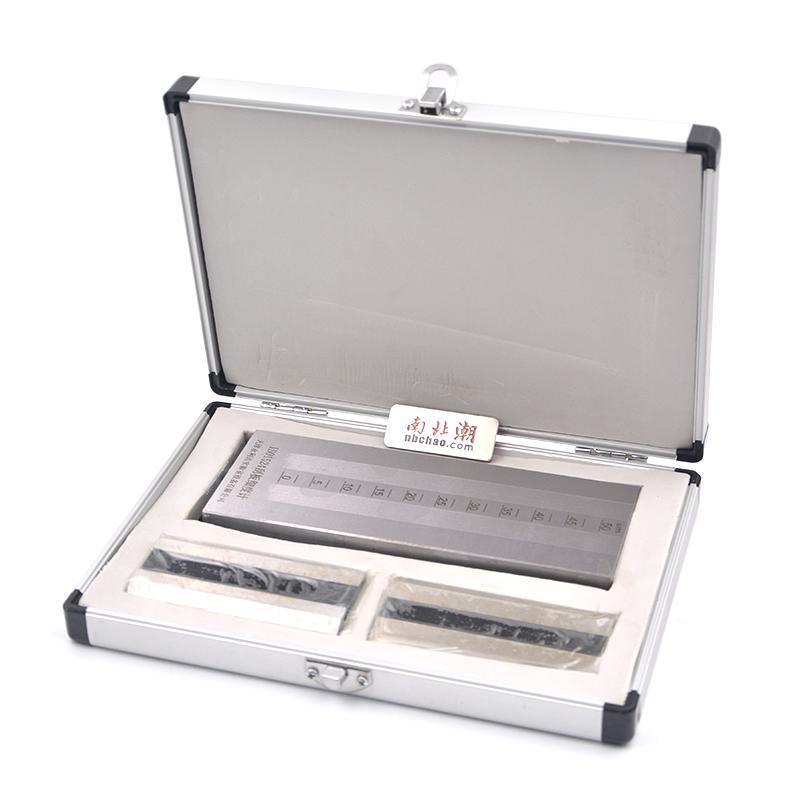

YongLiDa QXP0-100S ISO Grindometer (double-channel)Packing list
- SKU
- NB003370
- Scraper type
- double-channel
- Number of grooves
- 2
- range
- 0 ~ 100µm
- Scale unit
- mm
- Scraper material
- Cr12 molybdenum vanadium
- Scraper size
- 175*65*13mm
- Graduation
- 10µm
QXP0-100S
ISO Grindometer (double-channel)
Double-channel type, range 0~100μm, scale unit μm, scraper material Cr12 molybdenum vanadium, Graduation 10μm. Special for Coating Fineness Testing.
Introduction of QXP0-25/50/100S double channel Fineness gauge
Yonglida QXP double-channel Fineness gauge is an ISO Fineness of Grind Gauge with two grooves. According to the fineness range, it is divided into three models: QXP0-25S, QXP0-50S, and QXP0-100S. The measured fineness range They are 0~25μm, 0~50μm, 0~100μm, and the division values are 2.5μm, 5μm, 10μm respectively. QXP0-25/50/100S double-slot fineness plate can be used in the experiment of the standard "Determination of Coating Fineness".

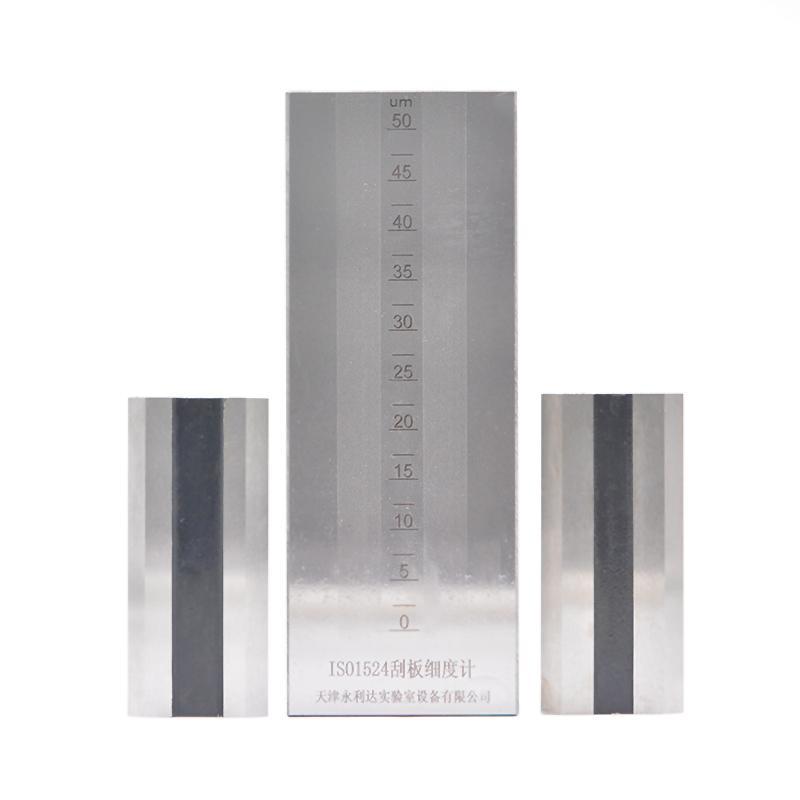

QXP0-25/50/100 double channel Fineness gauge display
FAQ
QWhat material is this QXP0-100S 2 paths Fineness gauge made of?
A
Hello, this material is Cr12 molybdenum vanadium.
QI want to measure the cleanliness of emulsion paint. Is this Fineness Meter suitable?
A
The number of particles in the emulsion paint above the Fineness meter reading is suitable for indicating the cleanliness of the emulsion paint and is therefore appropriate.
QMeet JT/T821.4 Fineness gauge
A
QXP0-100S Fineness gauge, please refer to it.
QCan the QXP100S double-channel Fineness gauge measure the size of 75 μm?
A
Yes, the ISO Fineness of Ground Gauge (double-channel) scraping 0~ 100μm or less material fineness.
Standard
- 1GB/T 12004.5-1992《Polyvinyl chloride plastsols.Determination of fineness of grind》
- 2GB/T 13217.5-2023《Inks drying inspection method》
- 3TB/T 2260-1991《Technical conditions for supply of anti-rust primers for railway rolling stock》
- 4HG/T 5367.1-2018《Coatings for rail transit vehicles - Part 1: Waterborne coatings》
- 5HG/T 5183-2017《Water-based ultraviolet curing coatings for woodenware》
- 6HG/T 5175-2017《Water-based decorative coating for glass and ceramic products》
- 7HG/T 3369-2003《Micaceous ironoxide phenolic anticorrosive paint》
- 8JTJ 275-2000《Corrosion Prevention Technical Specifications for Concrete Structures of Marine Harbour Engineering》
- 9JT/T 821.4-2011《Anti-corrosive coatings for concrete brid ge surface》
- 10JT/T 821.3-2011《Anti-corrosive coatings for concrete bridge surface.Part 3:Flexible coatings》
