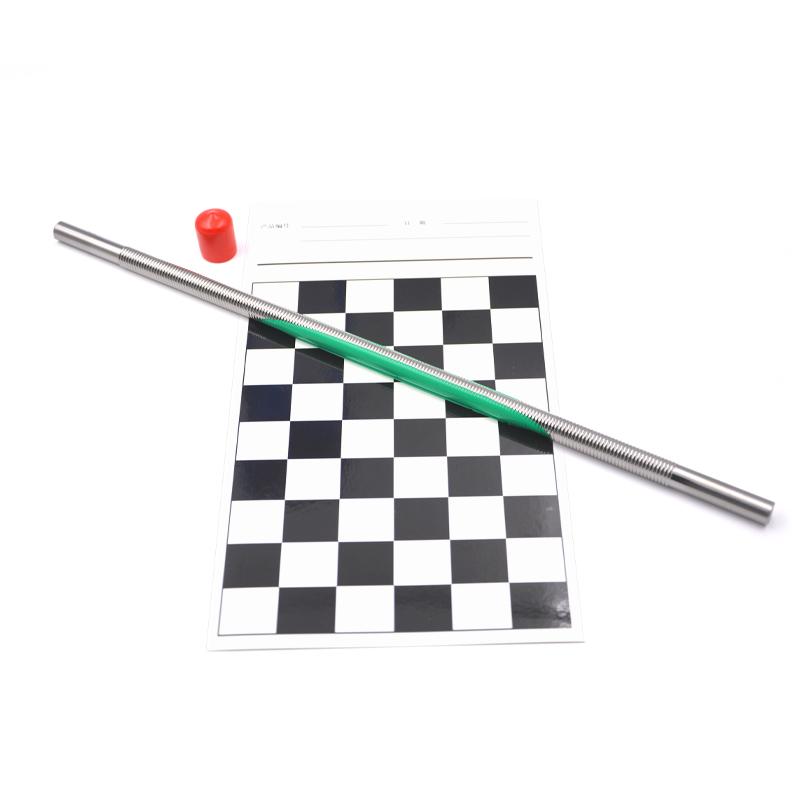

RDS 18 #3/8 "Molded Spreader Wet Rod 41.1μm Experimental Coating Applicator

SE
Production process is formed, wet film thickness 41.1 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 18# 3/8" Applicator rod 3/8 "SPEC

RDS 18# 3/8" Applicator rod 3/8 "Details

RDS 18# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033709
Production process
Formed
WFT
41.1µm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
18# 3/8"
Applicator rod 3/8 "
Production process is formed, wet film thickness 41.1 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
RDS 18 #3/8 "Molded Spreader Wet Rod 41.1μm Experimental Coating Applicator Picture

Product description

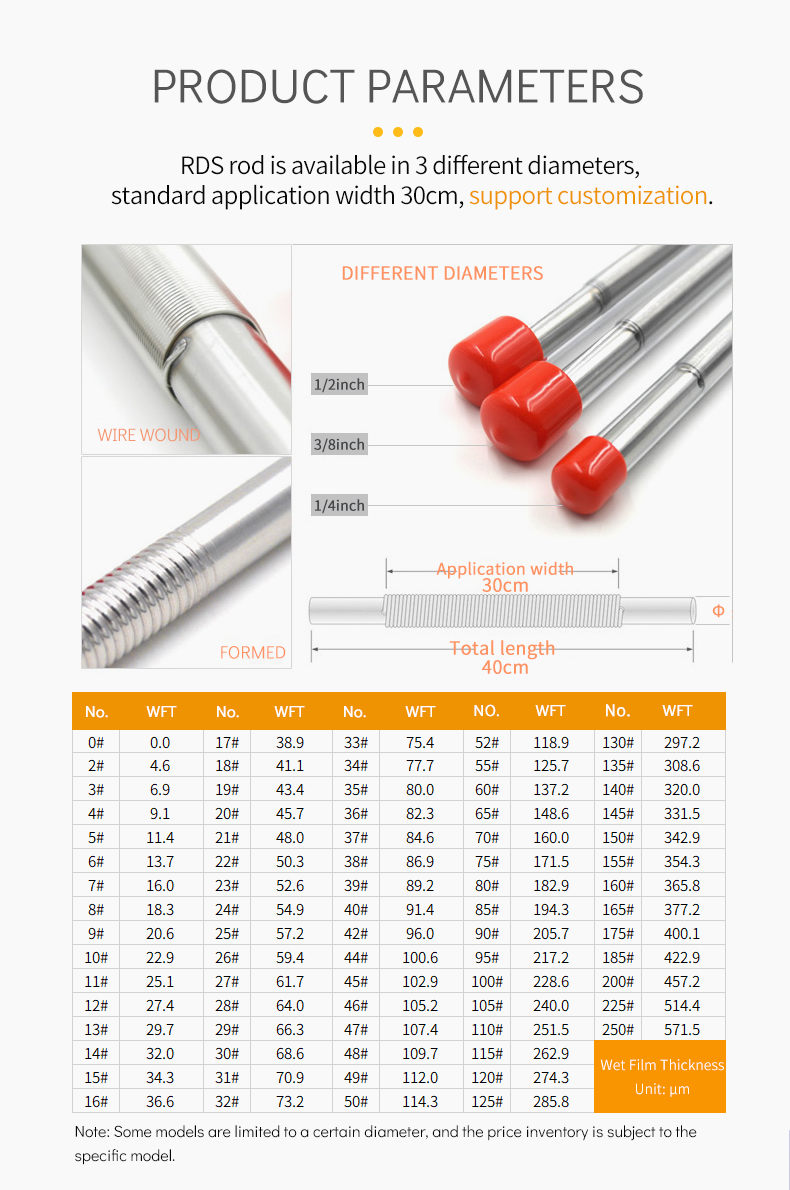

RDS 18# coating wet rod has two coating processes: extrusion type and wire winding type, with three different rod diameters of 1/4'', 3/8'' and 1/2'', and the thickness of the coating film is 41.1 μm. This No. RDS18 applicator is an extrusion molding process, the Total length of the wire rod is 40cm, and it can be used with an automatic coating machine. RDS coating wet sticks are not only suitable for coating inks, but also widely used in printing, plastics, paper and other fields.

RDS coating Rods Figure 1

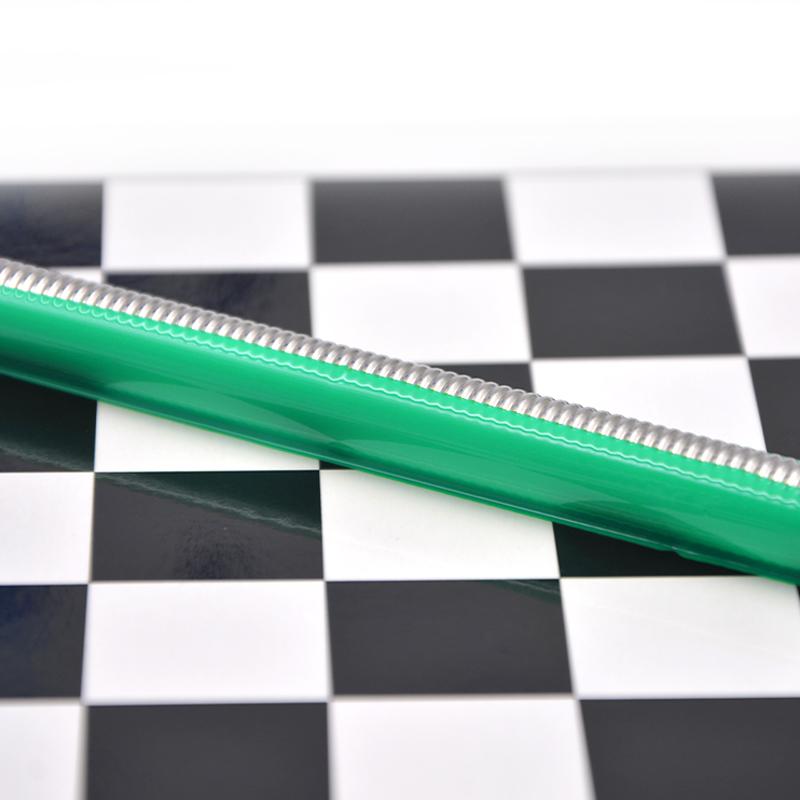

RDS coating Rods Figure 2

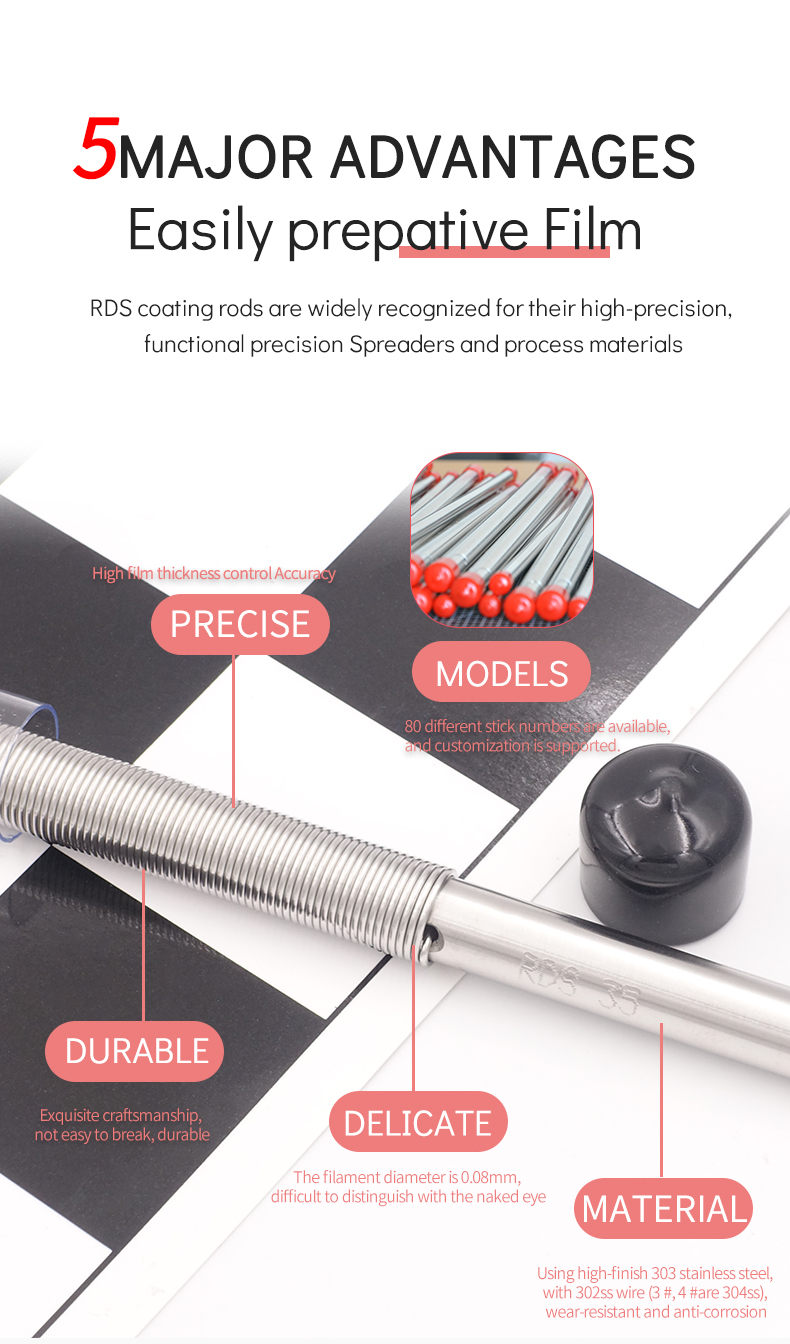

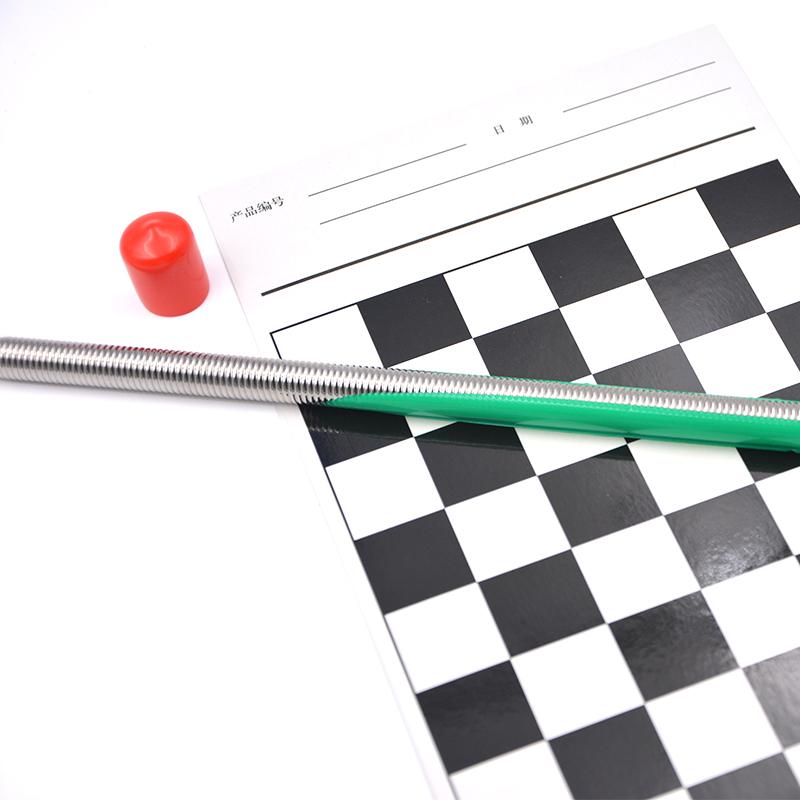

RDS coating Rods Figure 3

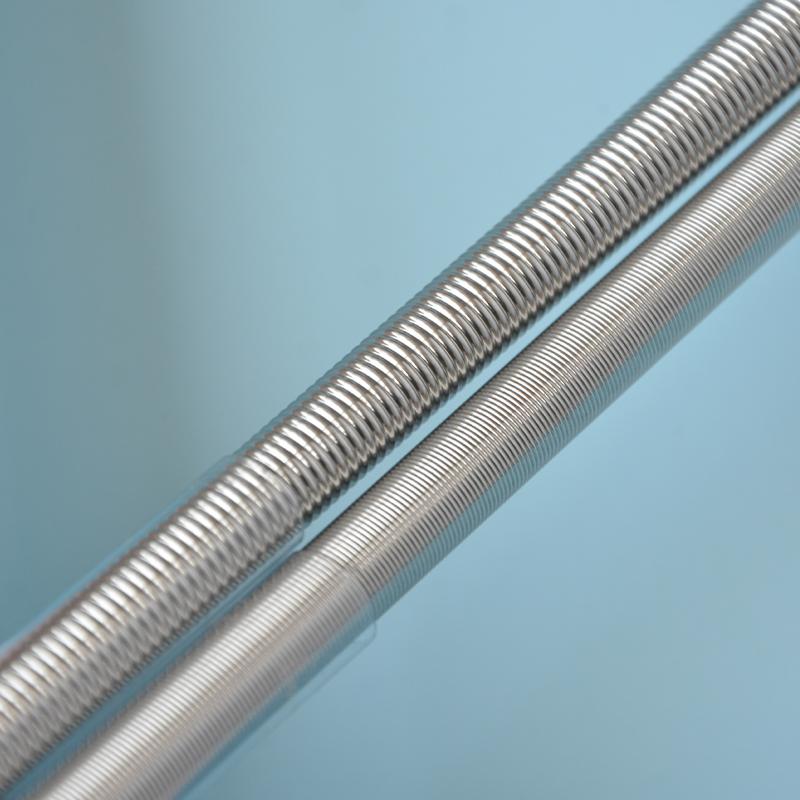

RDS coating Rods Figure 4

RDS coating Rods Figure 5

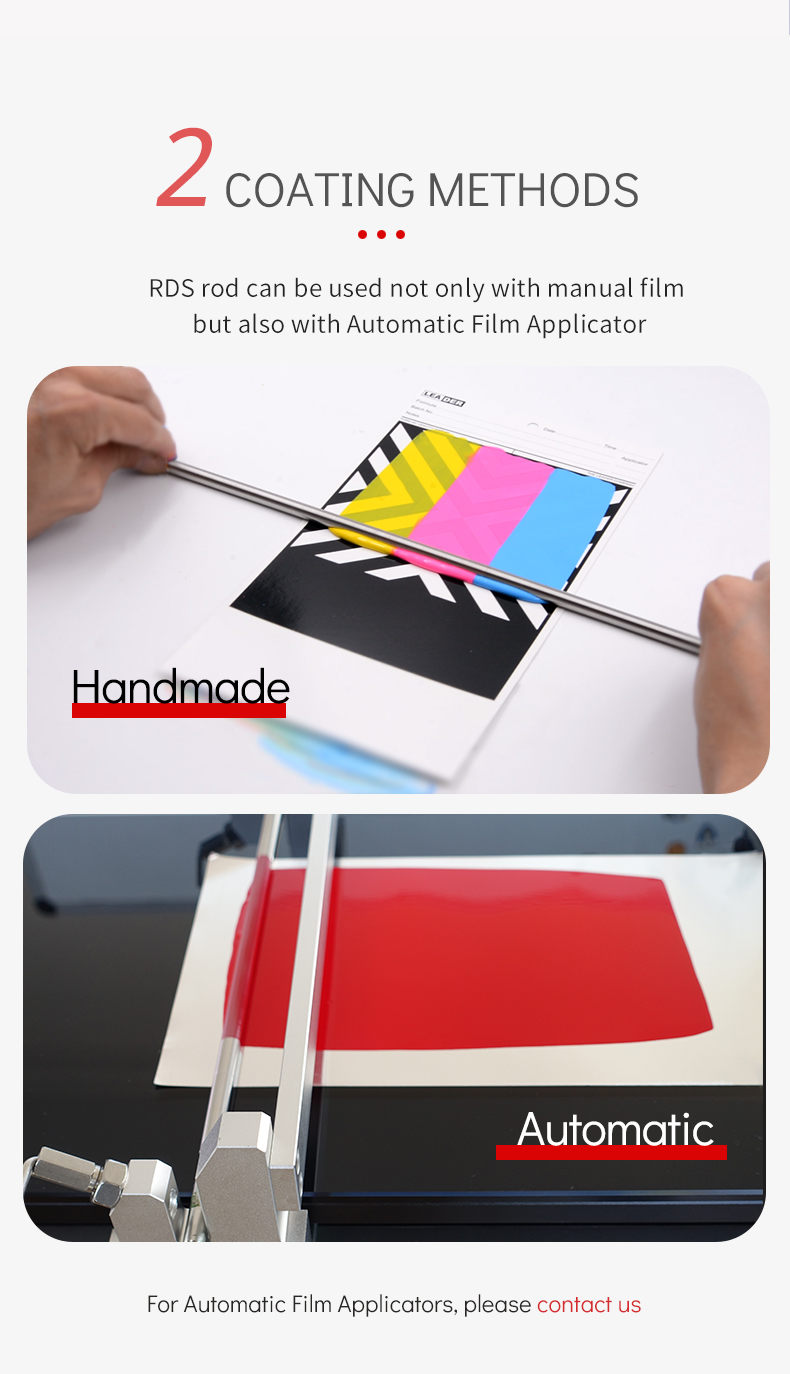

RDS coating Rods Figure 6

RDS coating Rods Figure 7

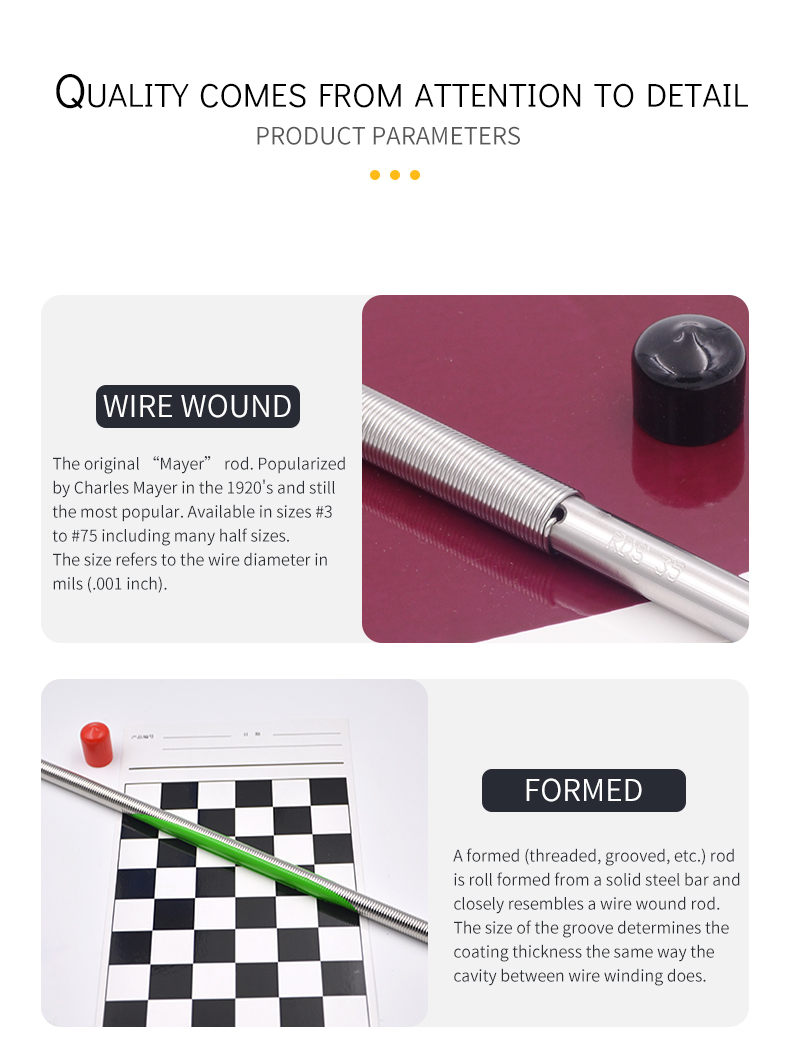

RDS coating Rods Figure 8

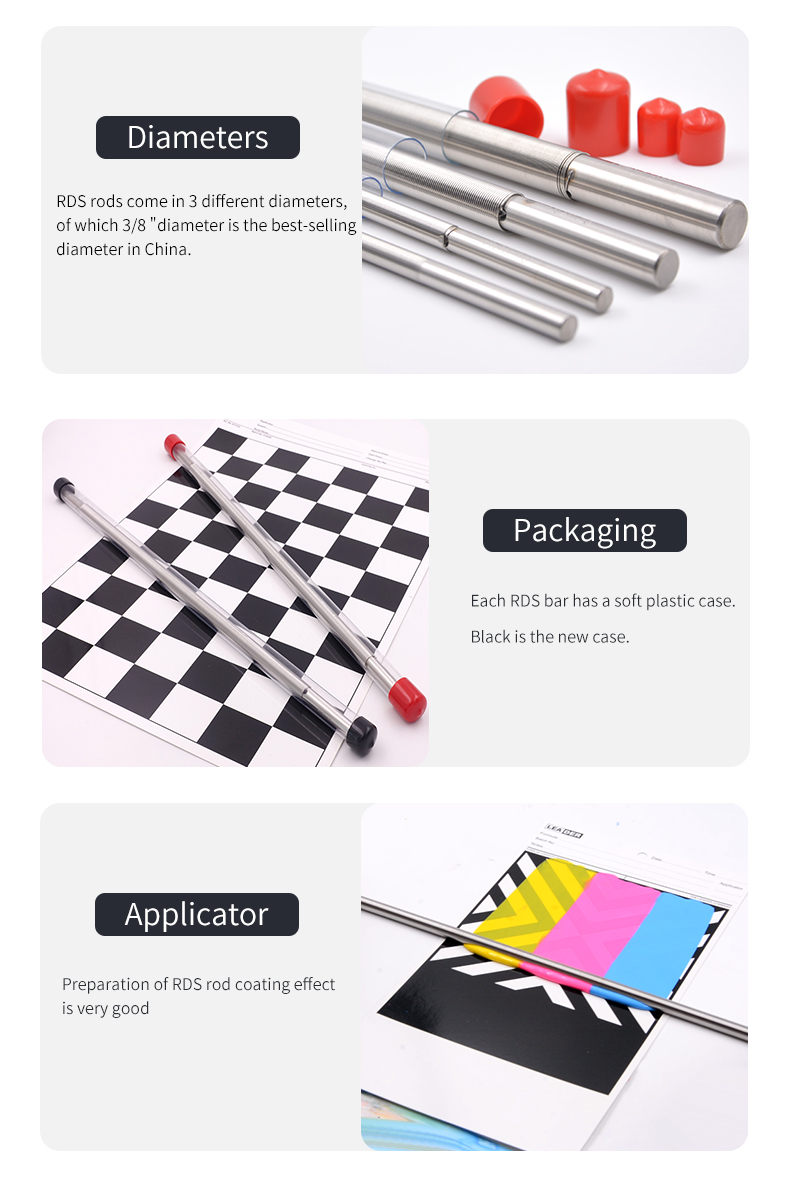

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QCan a solution be applied to a nonwoven substrate?
A Sure.
QPlastic inks Applicator rod Is this one formed?
A Hello, yes.
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
