RDS 28 #3/8 "Paint Scraper 64.0μm Proofing rod

SE
Formed, wet film thickness 64.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.71mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 28# 3/8" Applicator rod 3/8 "SPEC

RDS 28# 3/8" Applicator rod 3/8 "Details

RDS 28# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033716
Production process
Formed
WFT
64.0μ m
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
Wire diameter
0.71mm
28# 3/8"
Applicator rod 3/8 "
Formed, wet film thickness 64.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.71mm.

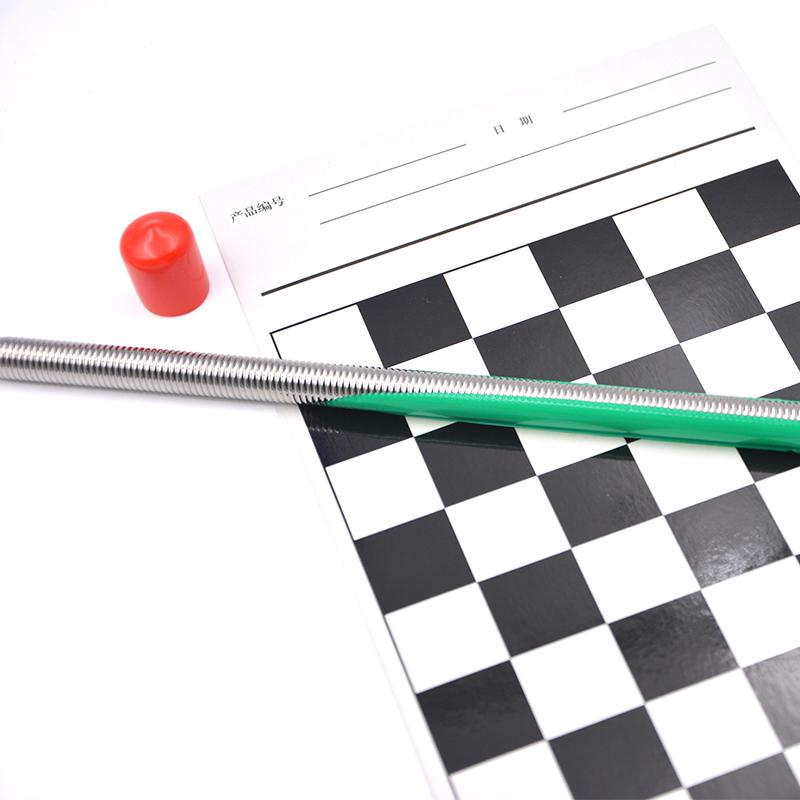

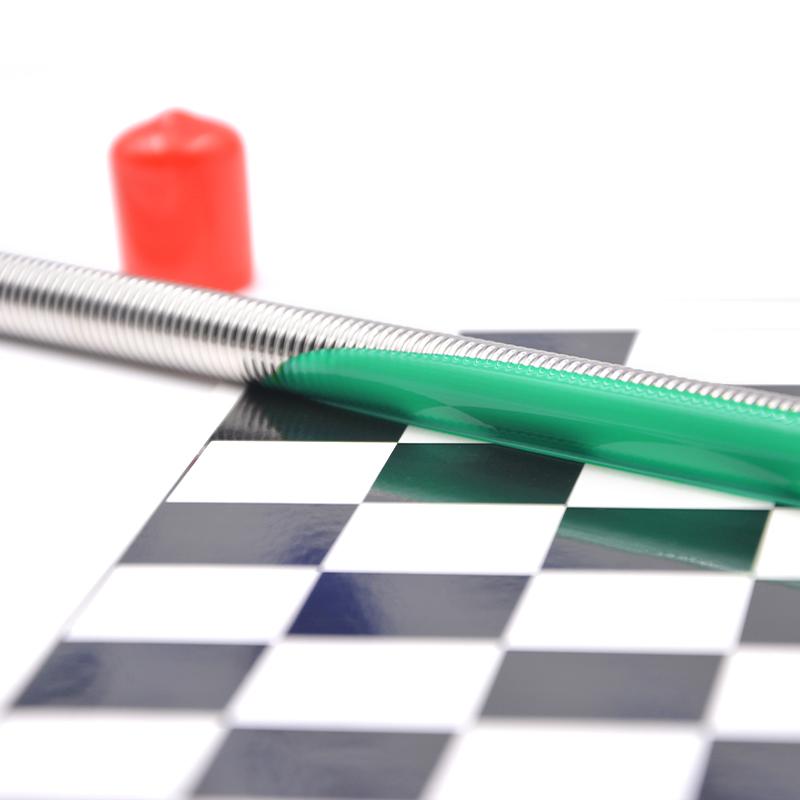

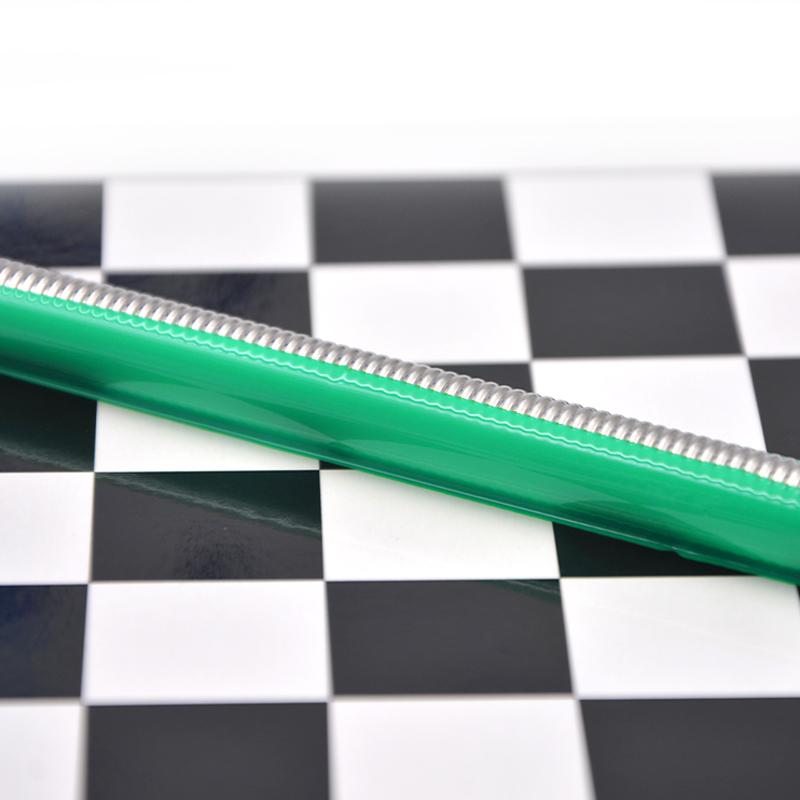

RDS 28 #3/8 "Paint Scraper 64.0μm Proofing rod Picture

Product description

The RDS paint scraper is an imported experimental coating scraper. There are three different diameters: 1/2'', 3/8'', and 1/4''. The coating effect of different diameters is the same. . RDS color sticks have been introduced into CHINA for decades, and are favored by industry users. The film thickness of RDS 28# is 64.0μm, and the effective coating width is 30cm. Austenitic 304 high-grade wear-resistant stainless steel is used, which is suitable for wear-resistant test film.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
