RDS 32 #3/8 "painted scraper 73.2μm painted wire rod

SE
Formed, wet film thickness 73.2 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, stainless steel material.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 32# 3/8" Applicator rod 3/8 "SPEC

RDS 32# 3/8" Applicator rod 3/8 "Details

RDS 32# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033718
Production process
Formed
WFT
73.2µm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
32# 3/8"
Applicator rod 3/8 "
Formed, wet film thickness 73.2 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, stainless steel material.
RDS 32 #3/8 "painted scraper 73.2μm painted wire rod Picture

Product description

Paint squeegee is a common instrument for laboratory coating proofing. The RDS squeegee is an imported brand paint squeegee. It has more than 80 years of history and experience. The technology is mature and the coating accuracy is as high as 0.1 μm. High-grade wear-resistant stainless steel 304, good wear resistance. This RDS 32# 3/8" is an extruded paint rod, which has the advantages of easy cleaning. The thickness of the coating film is 73.2μm, the coating film is uniform, and the reproducibility is good.

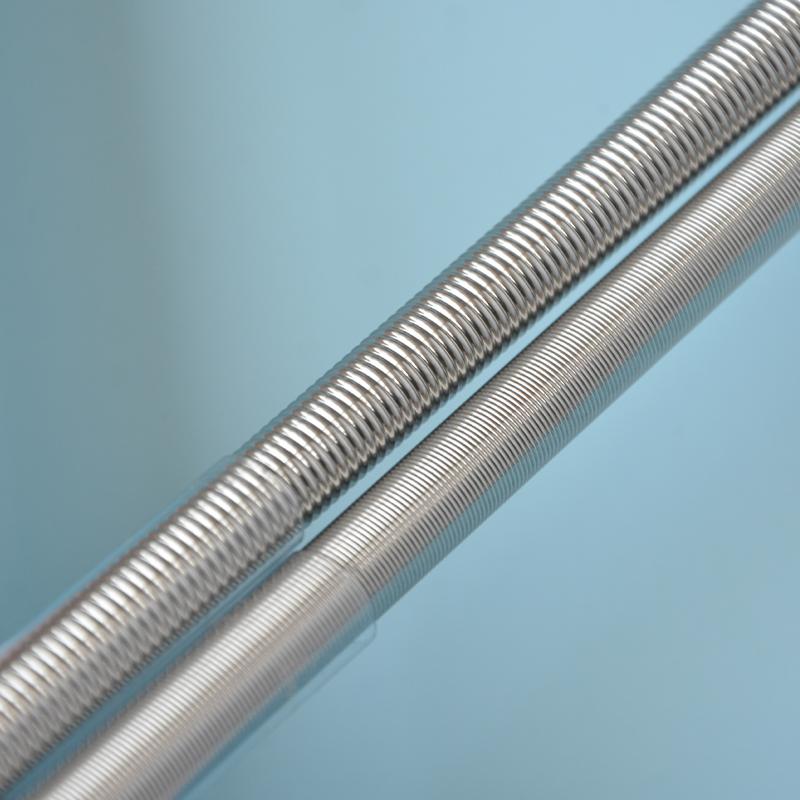

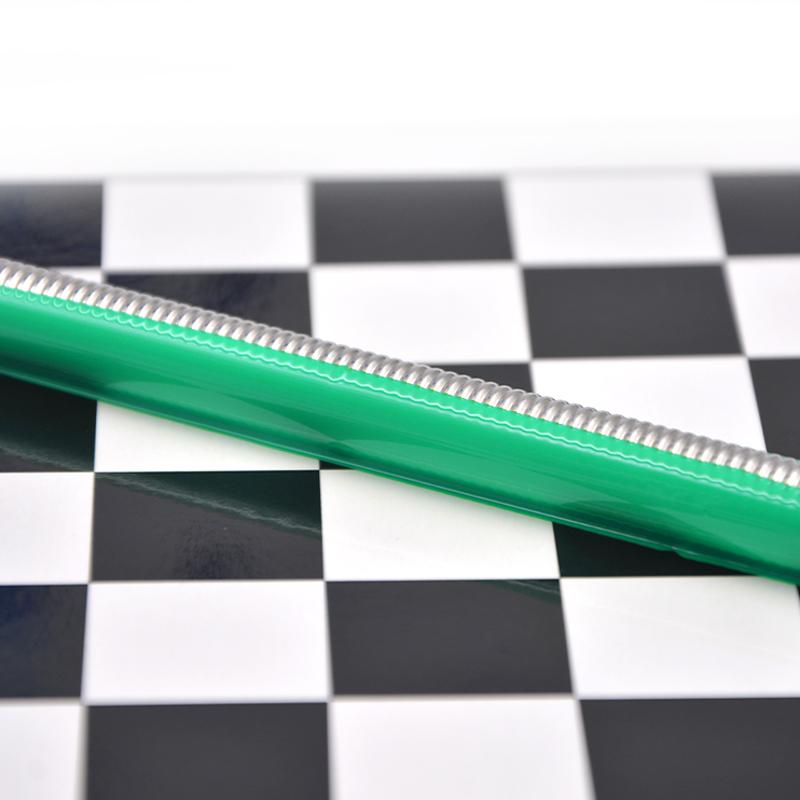

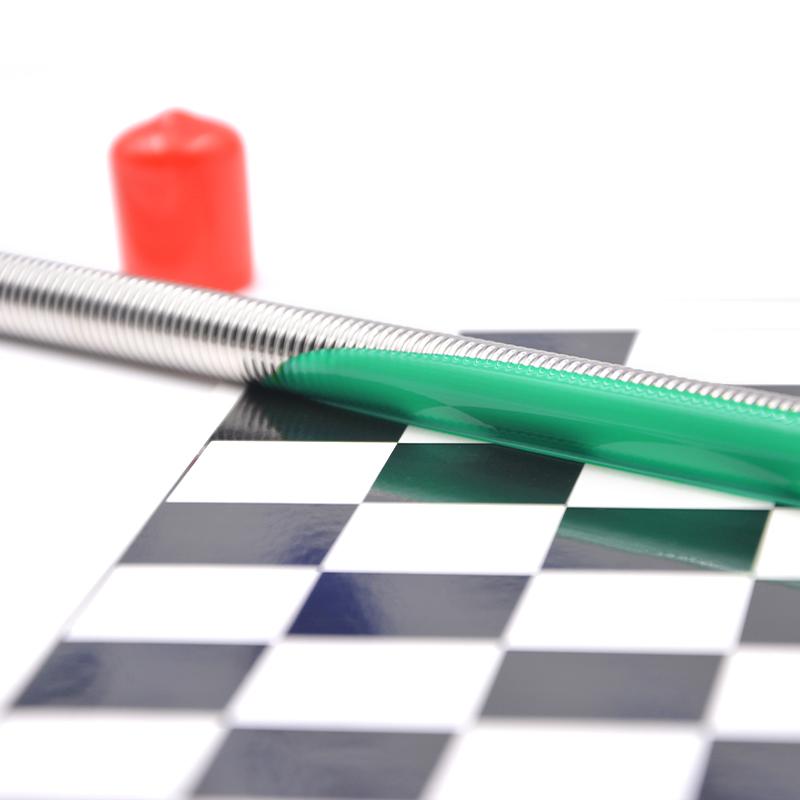

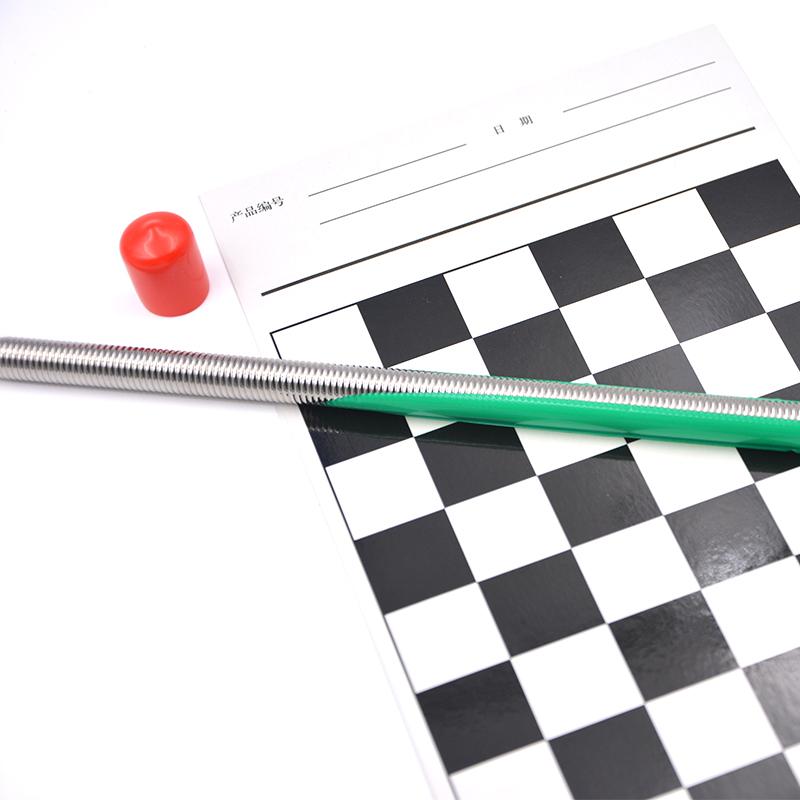

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QWhat is the number of the 200 mesh?
A RDS32.
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
