RDS 34 #3/8 "Mayer Rods 77.7μm wire rod Film Applicator

SE
Formed, wet film thickness 77.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, stainless steel material.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 34# 3/8" Applicator rod 3/8 "SPEC

RDS 34# 3/8" Applicator rod 3/8 "Details

RDS 34# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033719
Production process
Formed
WFT
77.7µm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
34# 3/8"
Applicator rod 3/8 "
Formed, wet film thickness 77.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, stainless steel material.

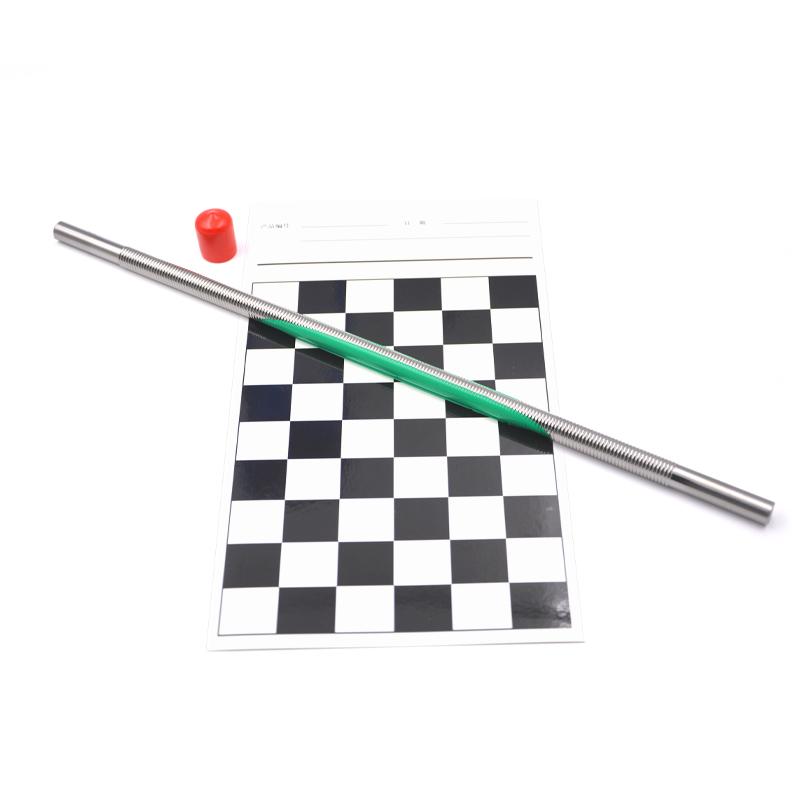

RDS 34 #3/8 "Mayer Rods 77.7μm wire rod Film Applicator Picture

Product description

RDS 34# wire Bar Coater has three different diameters of 6.35mm, 9.5mm, and 12.7mm, among which 9.5mm is the diameter series preferred by domestic (CN) users, and can be equipped with automatic film coating on domestic (CN) coating machines. The wet film thickness of this RDS34# 3/8" coating is 77.7μm. The film effect of the wire winding type and the extrusion type is the same. The total coating width is 300mm. It is suitable for ink, color paste, architectural coatings, Varnish, lithium battery and other coatings.

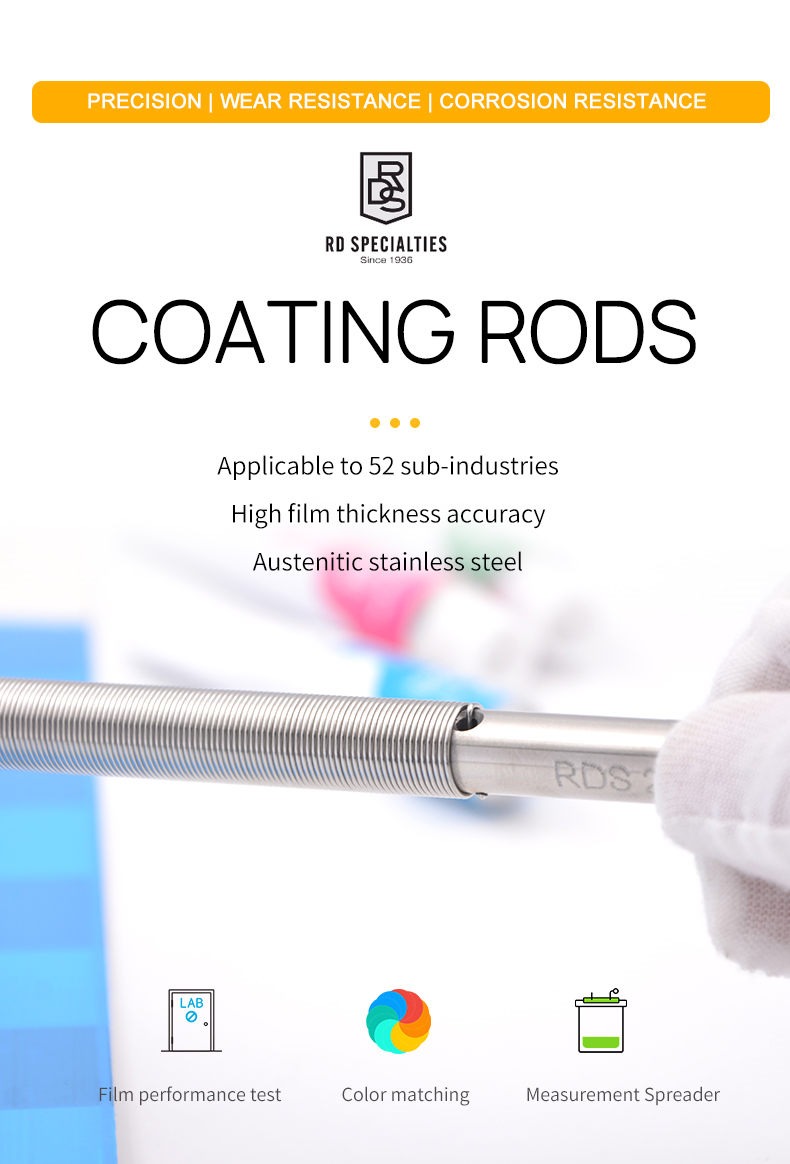

RDS coating Rods Figure 1

RDS coating Rods Figure 2

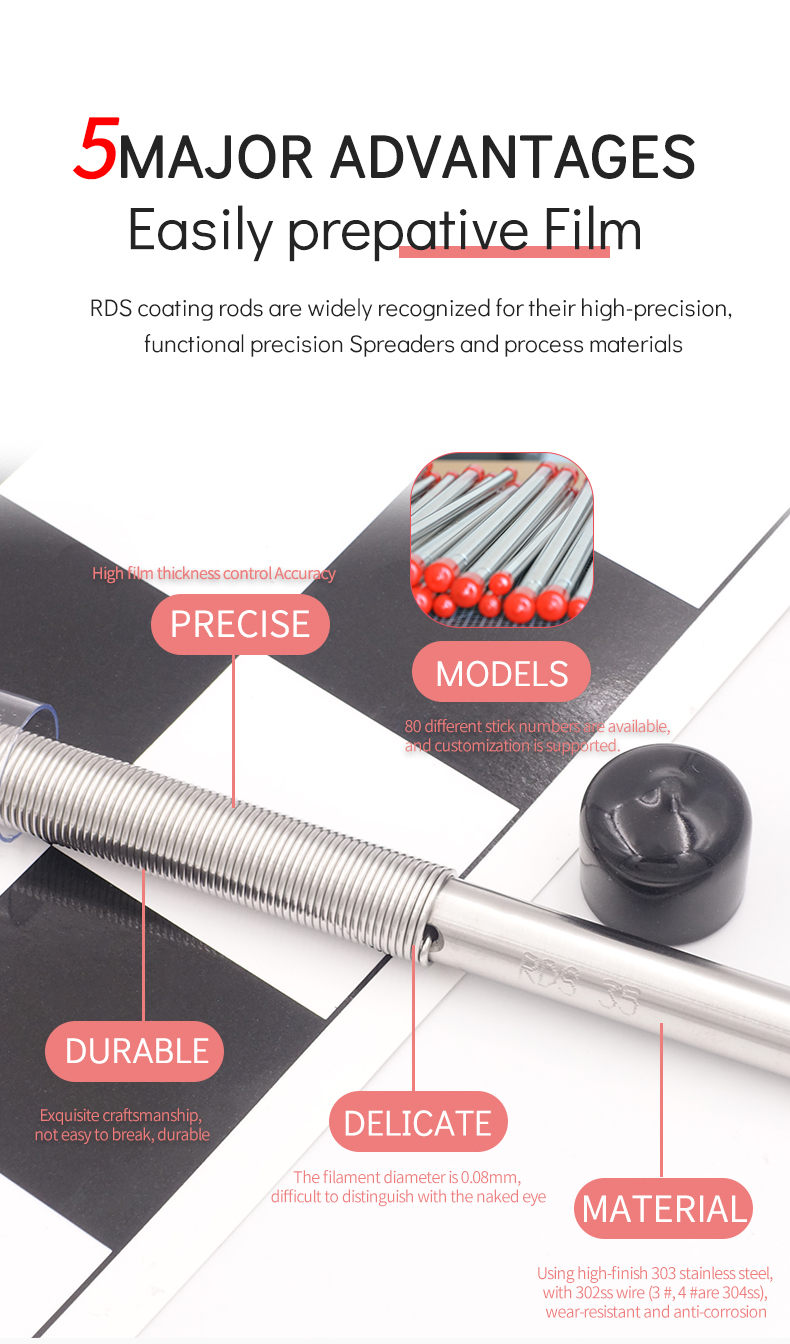

RDS coating Rods Figure 3

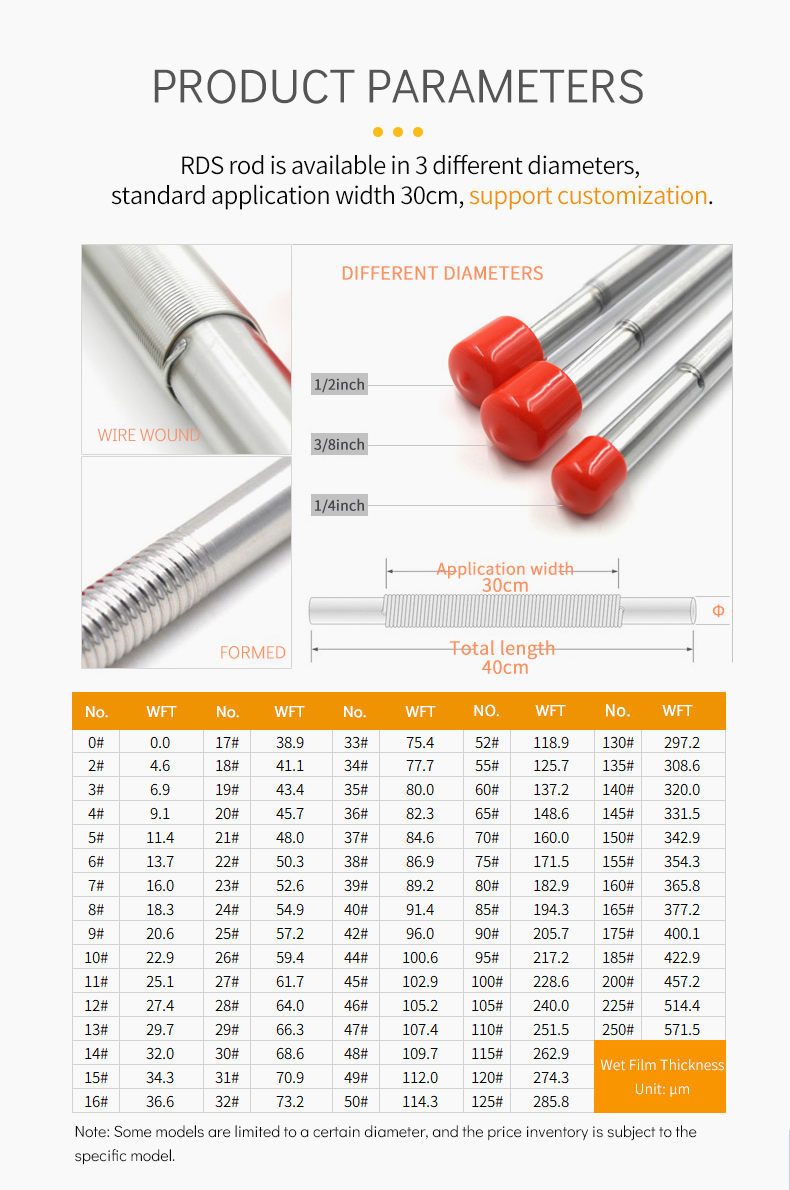

RDS coating Rods Figure 4

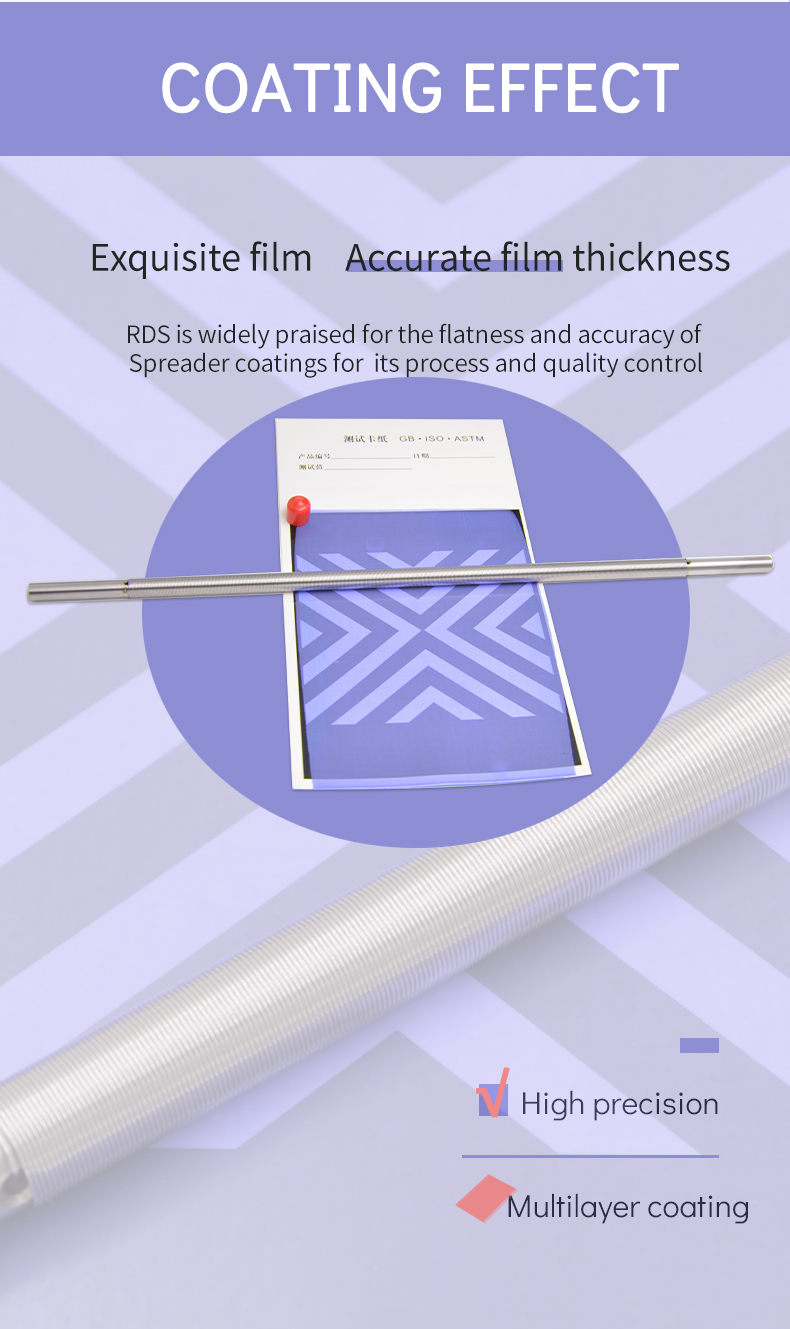

RDS coating Rods Figure 5

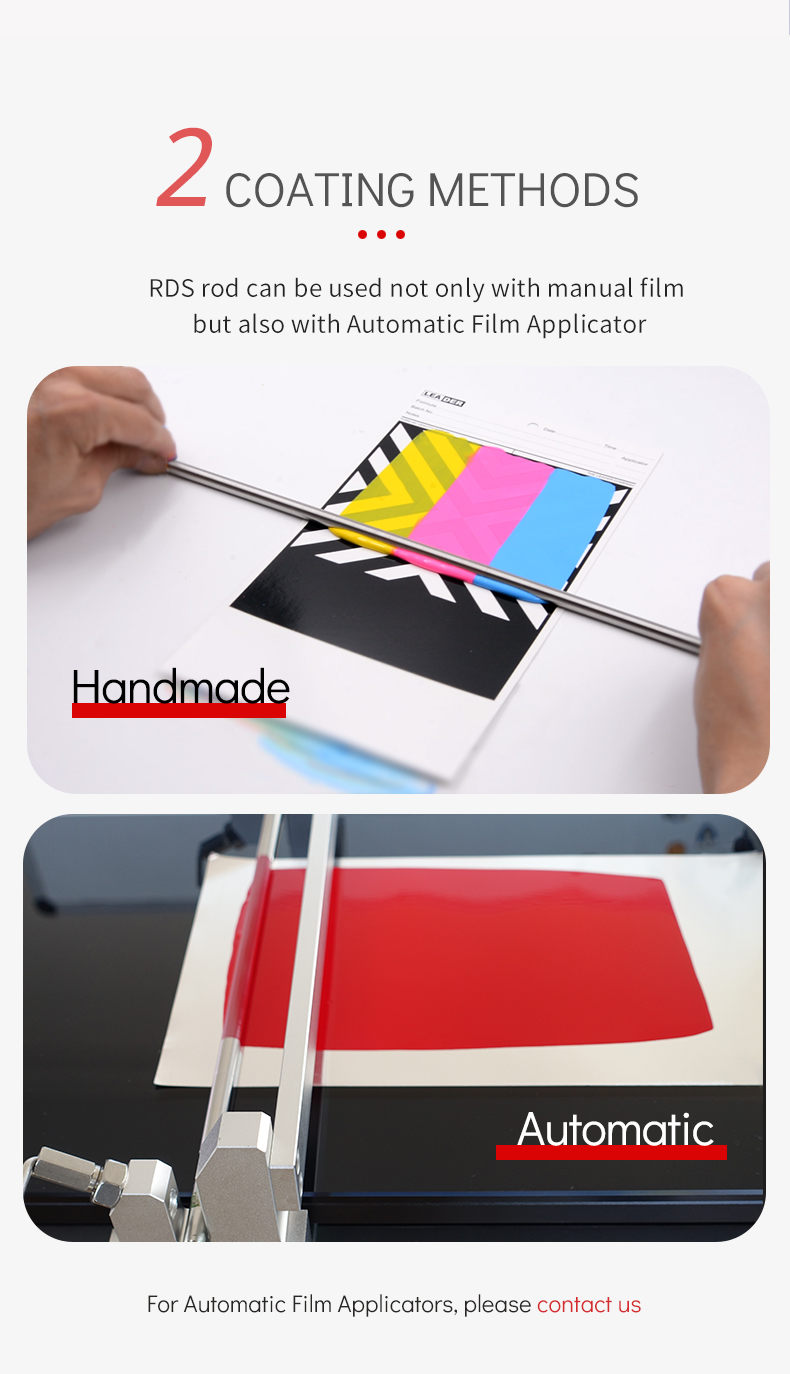

RDS coating Rods Figure 6

RDS coating Rods Figure 7

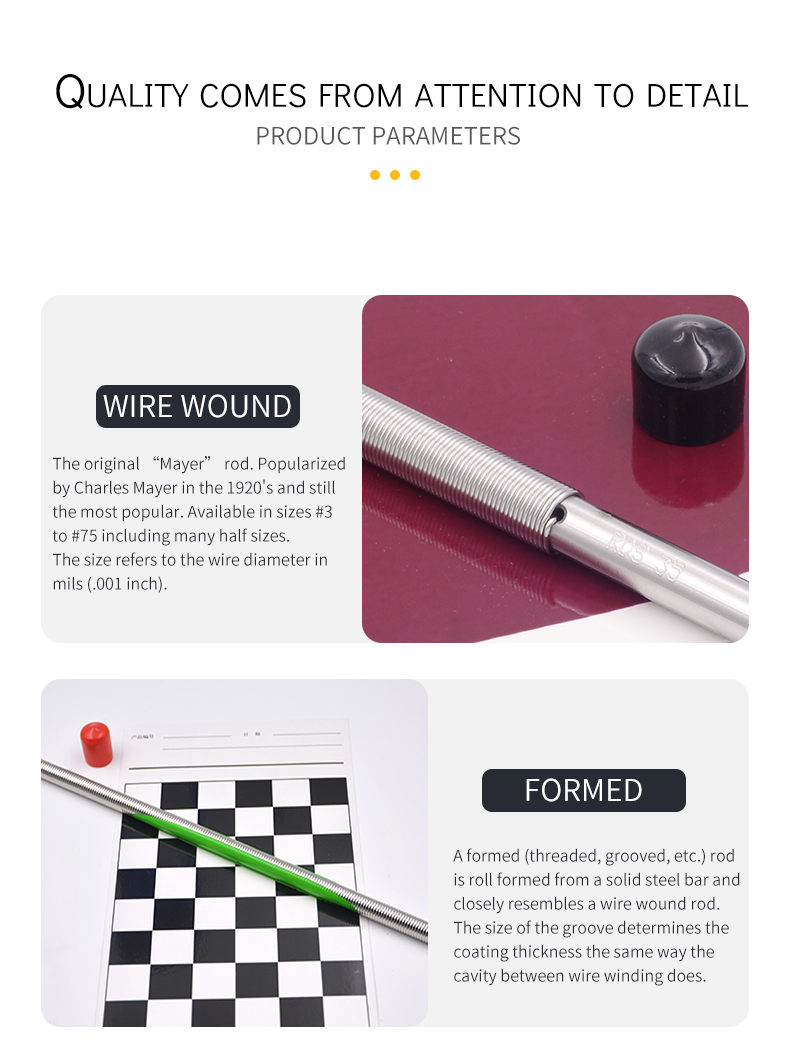

RDS coating Rods Figure 8

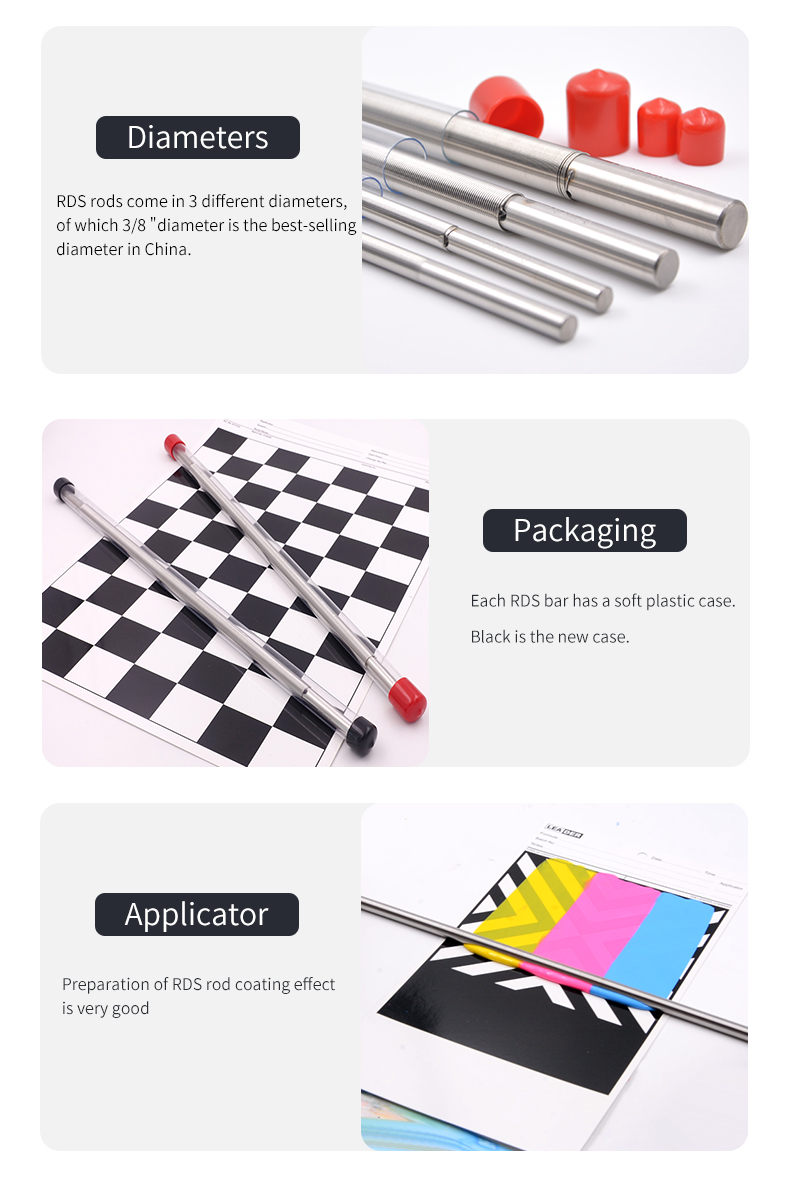

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QDo you have an RDS with a length of 50cm?
A RDS does not have a length of 500mm, the regular 400mm and 50cm need to be customized.
QThe printing stick is 200 mesh, that is, there are 200 small holes on 0.001 square meters, and each small hole is directly about 50 microns; I just want to find one with a similar ink volume
A 70 to 80 micron wire rods are recommended.
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
