RDS 42 #3/8 "Transfer Printing Proofing rod 96.0μm inks Applicator rod

SE
Production process is formed, wet film thickness 96.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 42# 3/8" Applicator rod 3/8 "SPEC

RDS 42# 3/8" Applicator rod 3/8 "Details

RDS 42# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033723
Production process
Formed
WFT
96.0μm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
42# 3/8"
Applicator rod 3/8 "
Production process is formed, wet film thickness 96.0μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
RDS 42 #3/8 "Transfer Printing Proofing rod 96.0μm inks Applicator rod Picture

RDSTransfer the print scratch stickIt has more than 80 years of industry experience in the coating industry, and it has been introduced to CHINA for more than 30 years. The brand position in the coating rod industry is self-evident, and it has always been recognized by the industry as a very good coating rod, with mature experience and technology, the widest range of coating films, and the accuracy of the coating rod is as high as 0.1um.The coating film thickness of the RDS 42# 3/8" transfer printing color scraping stick is 96.0μm, and the diameter of the wire rod is 9.5mm, which is suitable for color scraping and color matching of ink, screen ink, printing ink, etc.

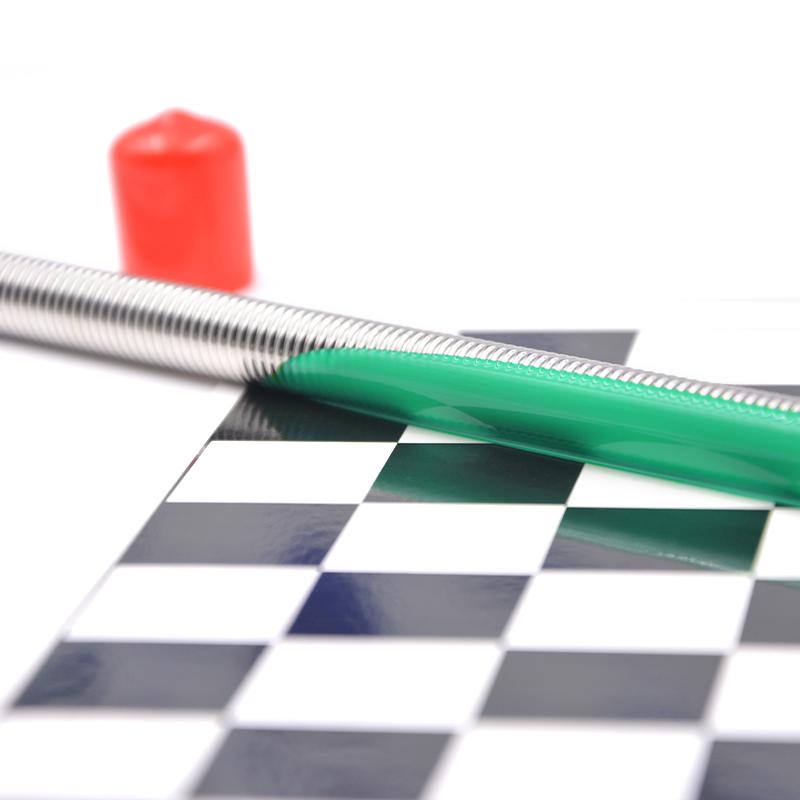

RDS coating Rods Figure 1

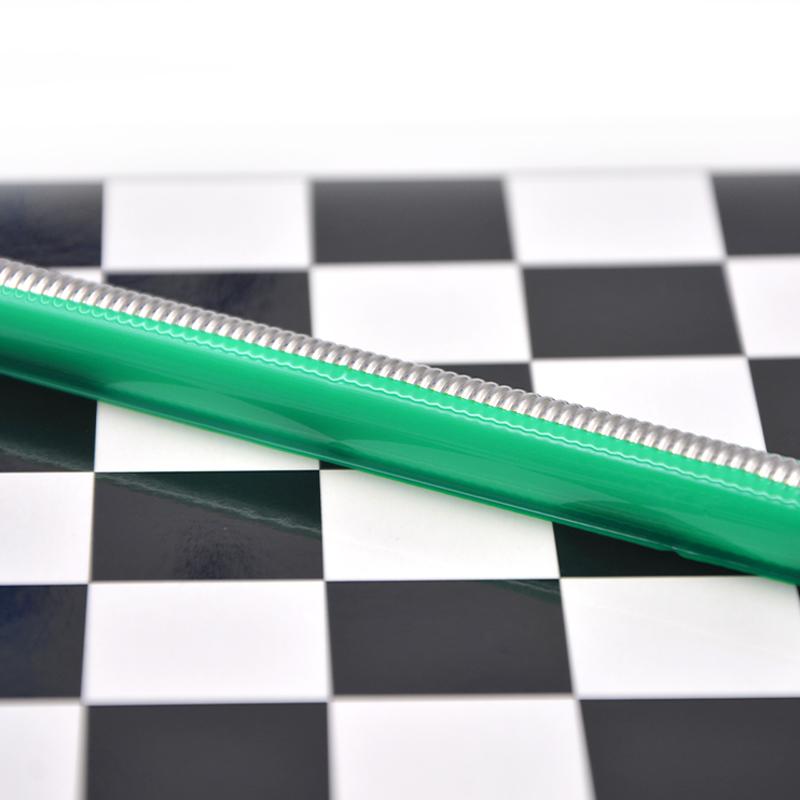

RDS coating Rods Figure 2

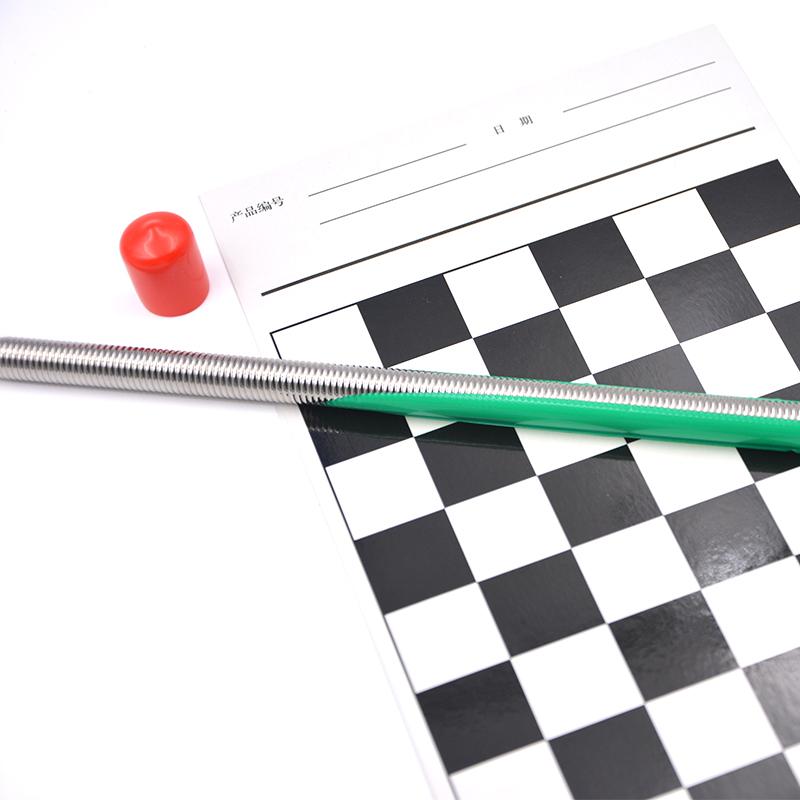

RDS coating Rods Figure 3

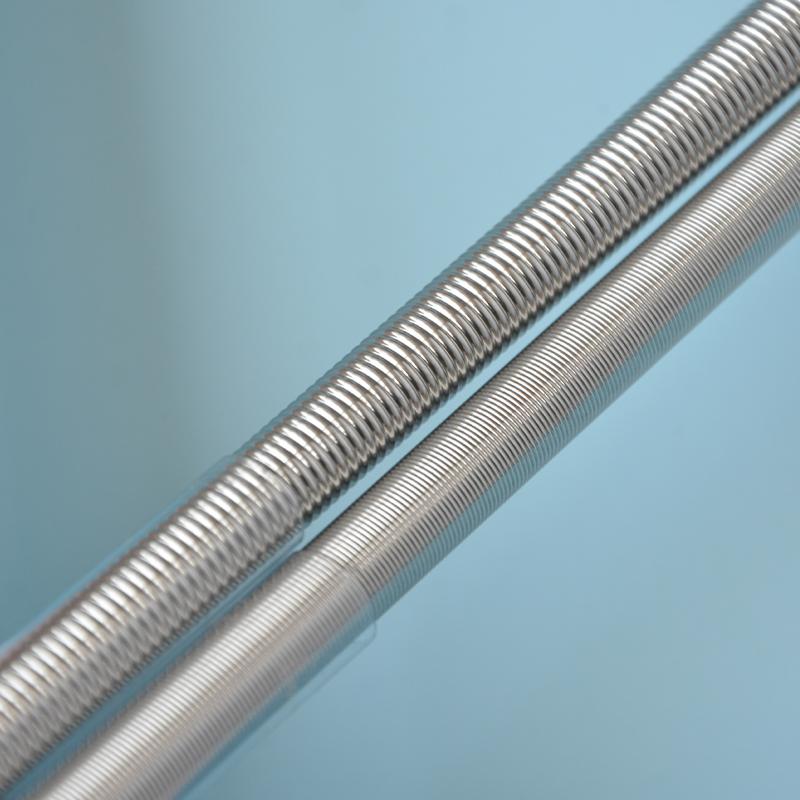

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QWhat number of wire sticks do you use for glue proofing?
A The film thickness can be based on your Dry-Film or wet-film requirements. If the specific application is not clear, you can find customer assistance.
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
