RDS 44 #3/8 "Meyer Scraper 100μm Meyer Spreader

SE
Production process is formed, wet film thickness 100.6 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 44# 3/8" Applicator rod 3/8 "SPEC

RDS 44# 3/8" Applicator rod 3/8 "Details

RDS 44# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033724
Production process
Formed
WFT
100.6μm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
44# 3/8"
Applicator rod 3/8 "
Production process is formed, wet film thickness 100.6 μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
RDS 44 #3/8 "Meyer Scraper 100μm Meyer Spreader Picture

The wet film thickness prepared by the RDS 44# 3/8" Meyer scraper is 100.6μm, and the accuracy is 0.1μm, which is a brand with very high precision in the scraper industry, and is preferred by users in different industries. RDS Meyer bar material is different from the general scraper, the coating accuracy is high, and the use of high-grade wear-resistant stainless steel, according to historical experience, a wire rod can be used for at least half a year, if properly maintained, can have a longer service life.

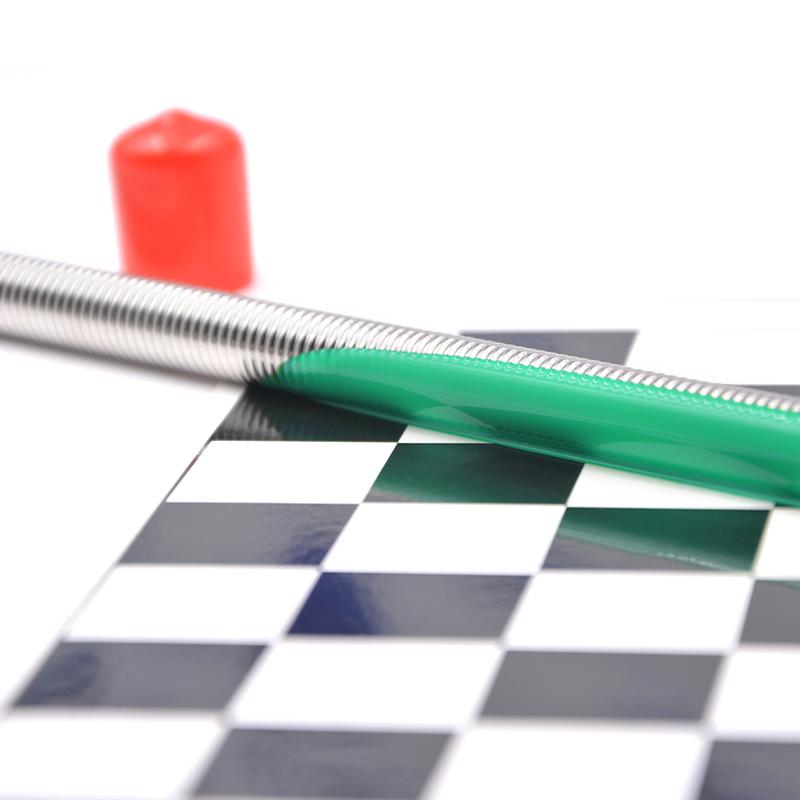

RDS coating Rods Figure 1

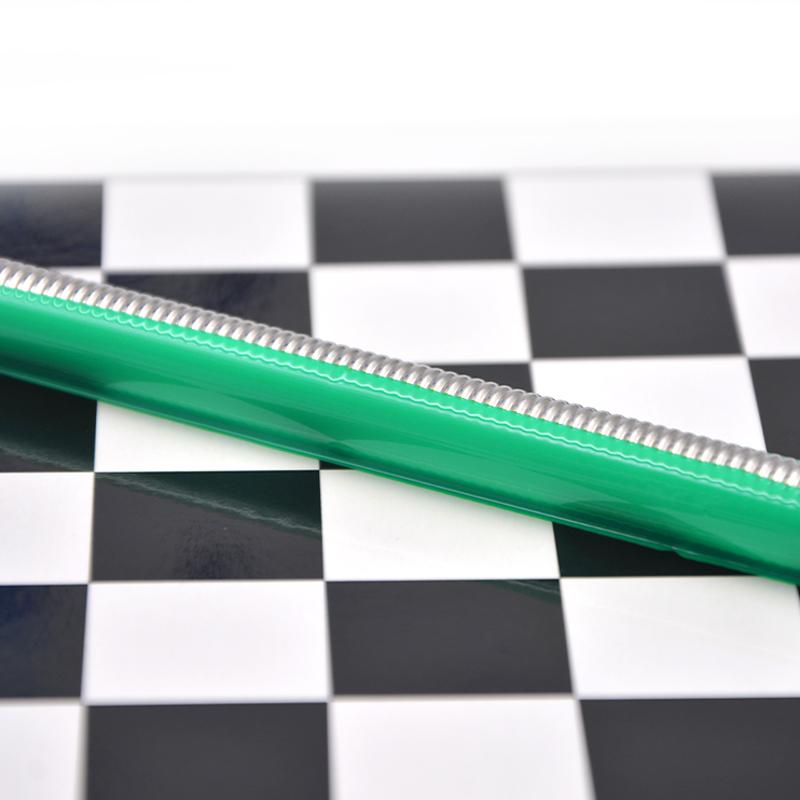

RDS coating Rods Figure 2



RDS coating Rods Figure 3

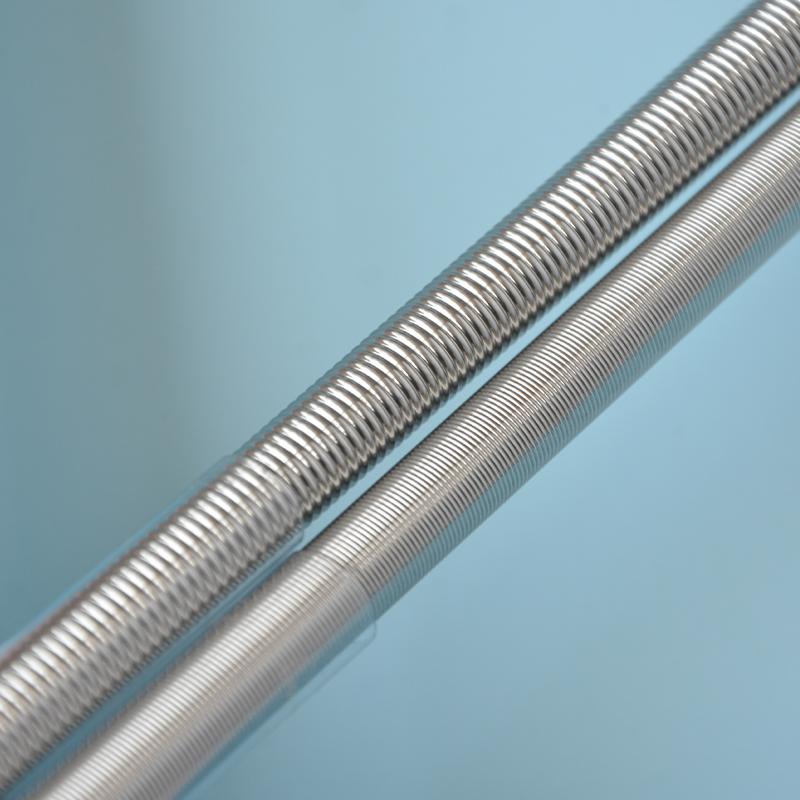

RDS coating Rods Figure 4



RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7



RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QCan this rod be filmed multiple times on the same film?
A Yes, the wire rod for multiple films is its advantage. Of course, the premise is that the bottom film is dried.
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan this wire rod be used to prepare an interior-wall coating test board?
A Sure.
