RDS 55 #3/8 "Coated Scraper 125.7μm Forming Applicator rod

SE
Production process is formed, wet film thickness 125.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 55# 3/8" Applicator rod 3/8 "SPEC

RDS 55# 3/8" Applicator rod 3/8 "Details

RDS 55# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033728
Production process
Formed
WFT
125.7μm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
55# 3/8"
Applicator rod 3/8 "
Production process is formed, wet film thickness 125.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.

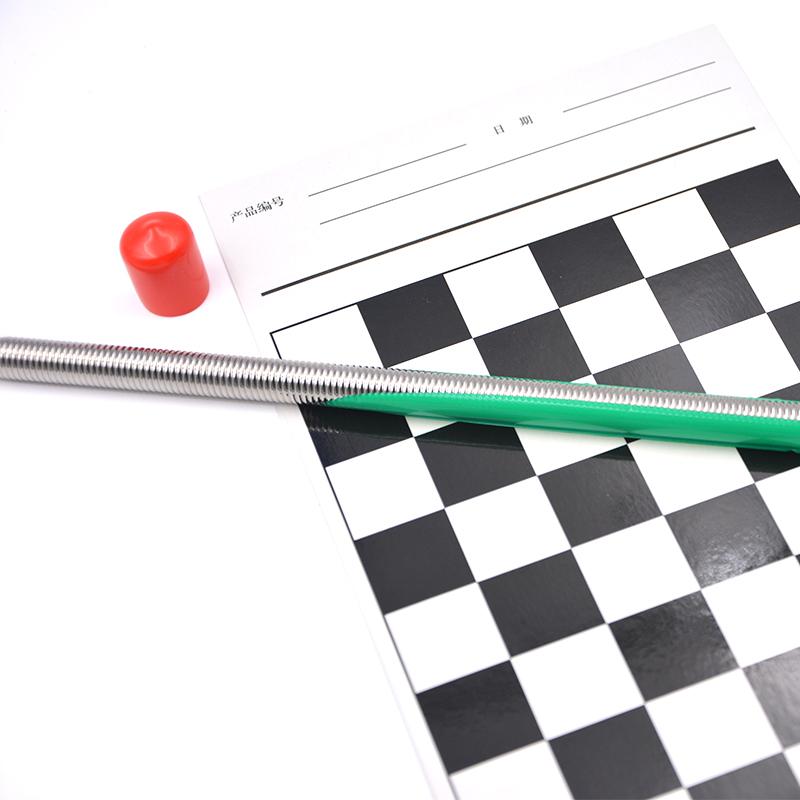

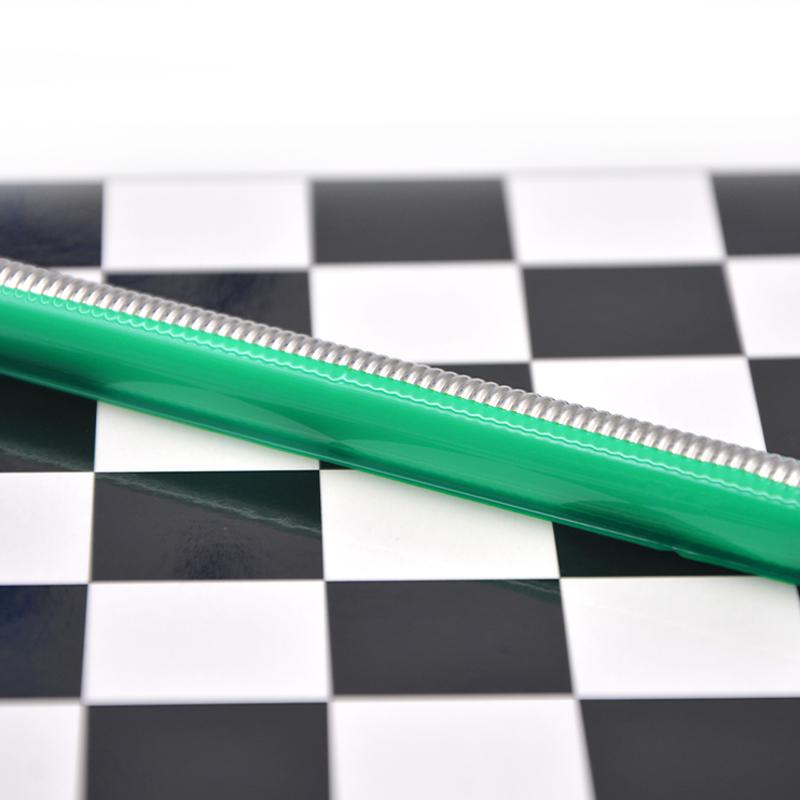

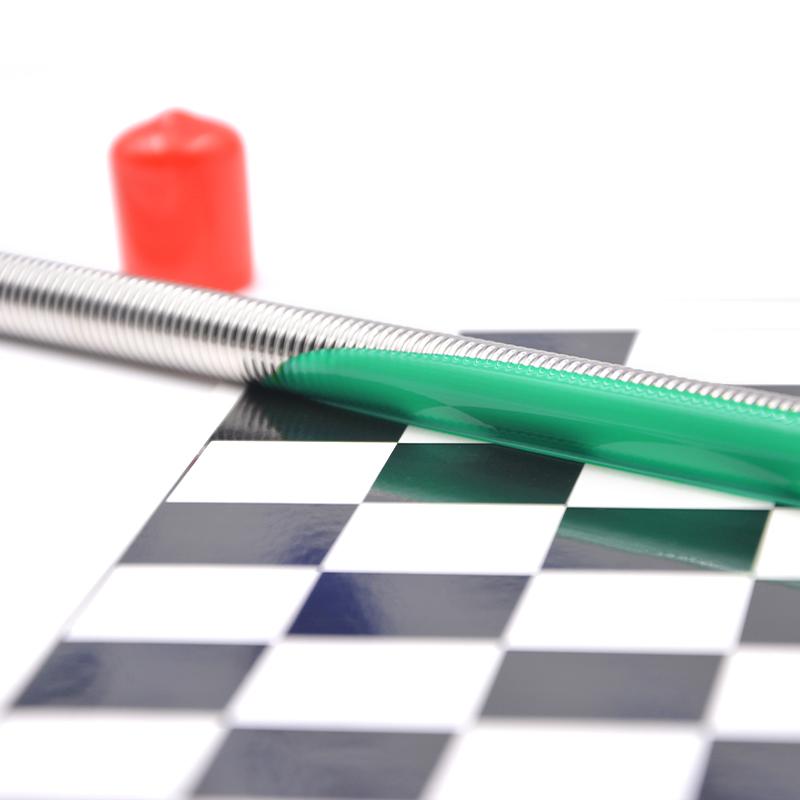

RDS 55 #3/8 "Coated Scraper 125.7μm Forming Applicator rod Picture

The RDS 55# 3/8" coating rod has a coating film thickness of 125.7μm, which is a molded coating rod with a diameter of 9.5mm, and RDS 55# coating rod is suitable for coating water-based inks, magnetic paints, enamel paints, resins, coil coatings, plastic inks, battery separators, etc. It can be coated on paper, glass, film, textile and other substrates, and the material is wear-resistant stainless steel.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

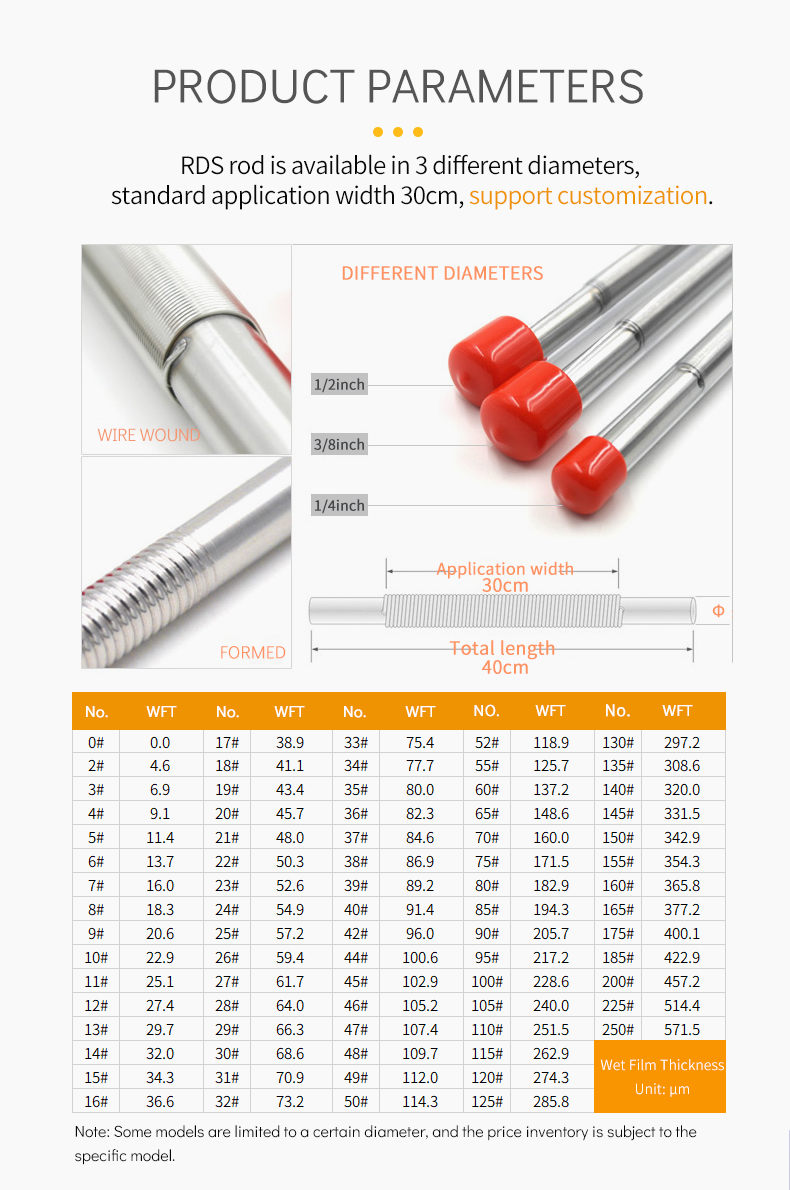

RDS coating Rods Figure 4

RDS coating Rods Figure 5

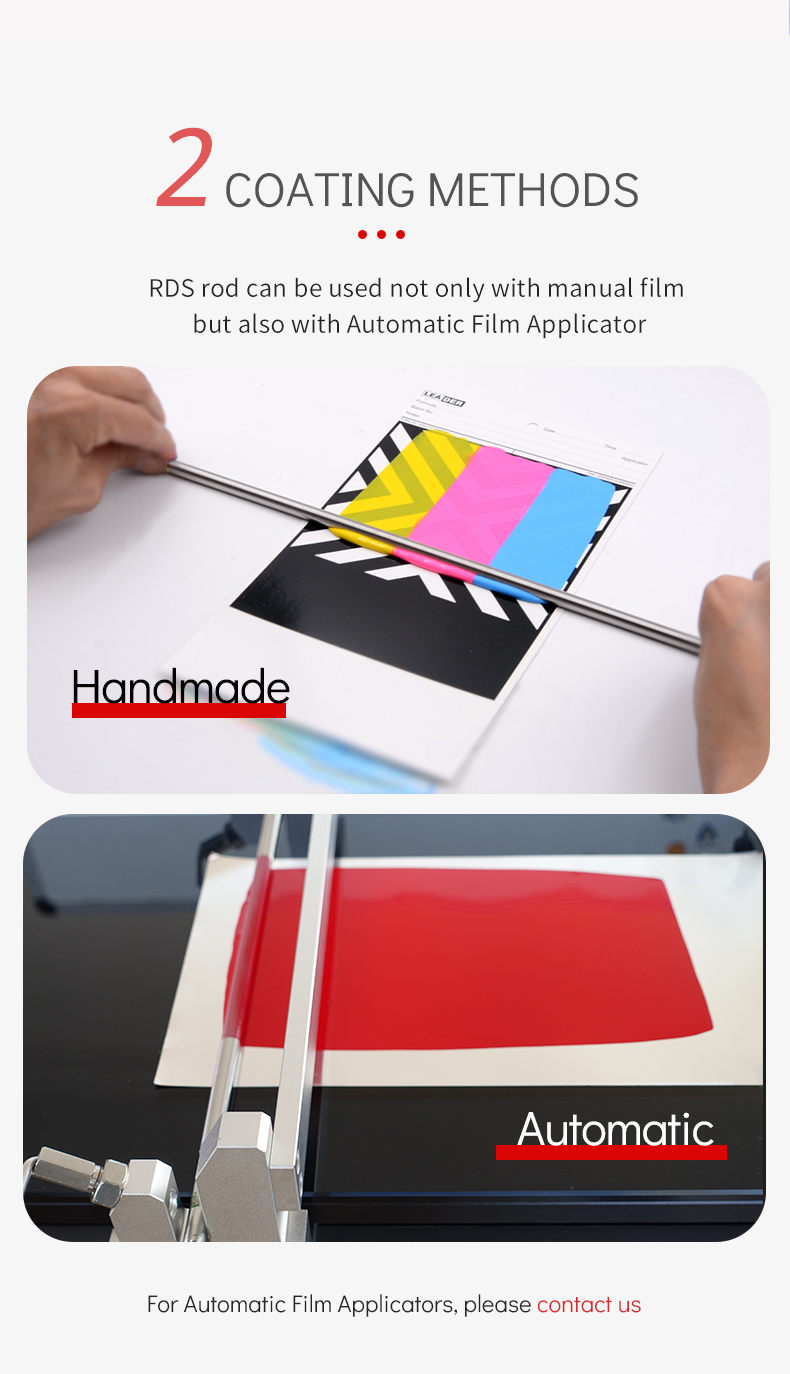

RDS coating Rods Figure 6

RDS coating Rods Figure 7

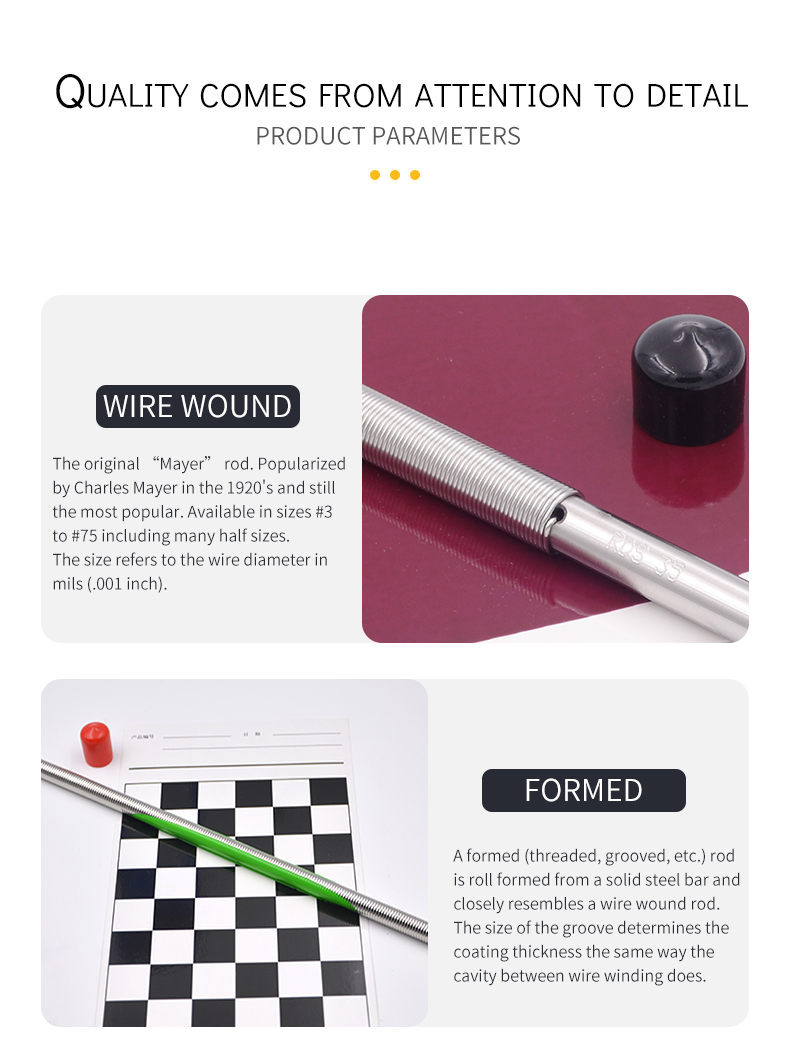

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?

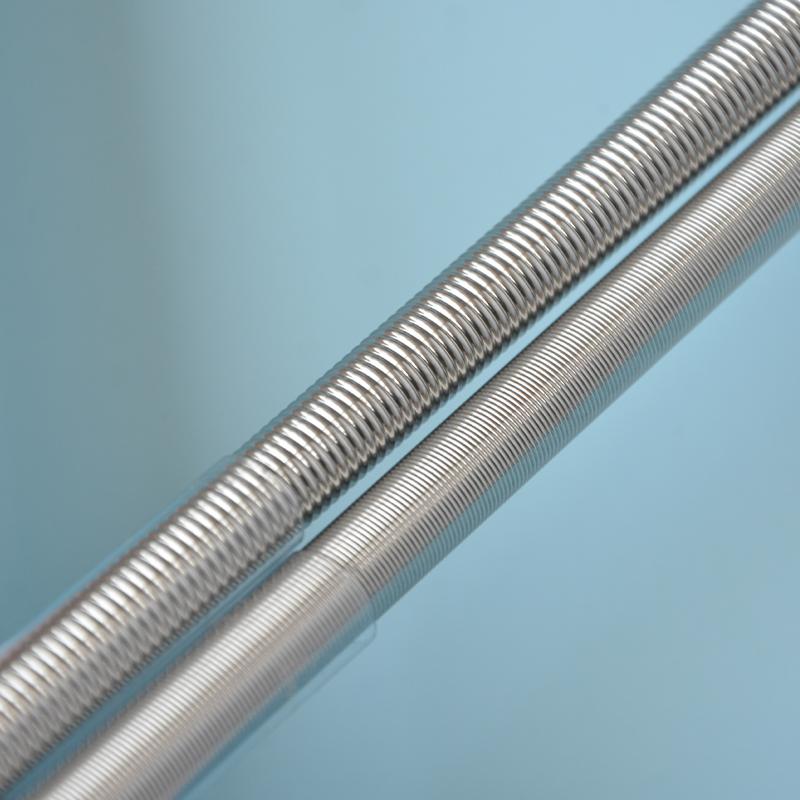

A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
