RDS 60 #3/8 "Mayer Rods 137.2μm Coating Line Coater

SE
Production process is formed, wet film thickness 137.2μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 60# 3/8" Applicator rod 3/8 "SPEC

RDS 60# 3/8" Applicator rod 3/8 "Details

RDS 60# 3/8" Applicator rod 3/8 "Packing list

SKU
NB033729
Production process
Formed
WFT
137.2μm
diameter
9.52mm
Total length
400mm
Application width
300mm
material
stainless steel
60# 3/8"
Applicator rod 3/8 "
Production process is formed, wet film thickness 137.2μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel.
RDS 60 #3/8 "Mayer Rods 137.2μm Coating Line Coater Picture

The RDS 60# 3/8" wire Bar Coater can coat a wet film thickness of 137.2μm, which is suitable for experimental coating in coatings, color steel paints, inks, magnetic paints, coil coatings, water-based latex, wood coatings, automotive coatings and other coating segments. This RDS60 rod adopts a molding process, which has the advantages of easy cleaning and continuous filament, and is a well-known wire rod coater brand.

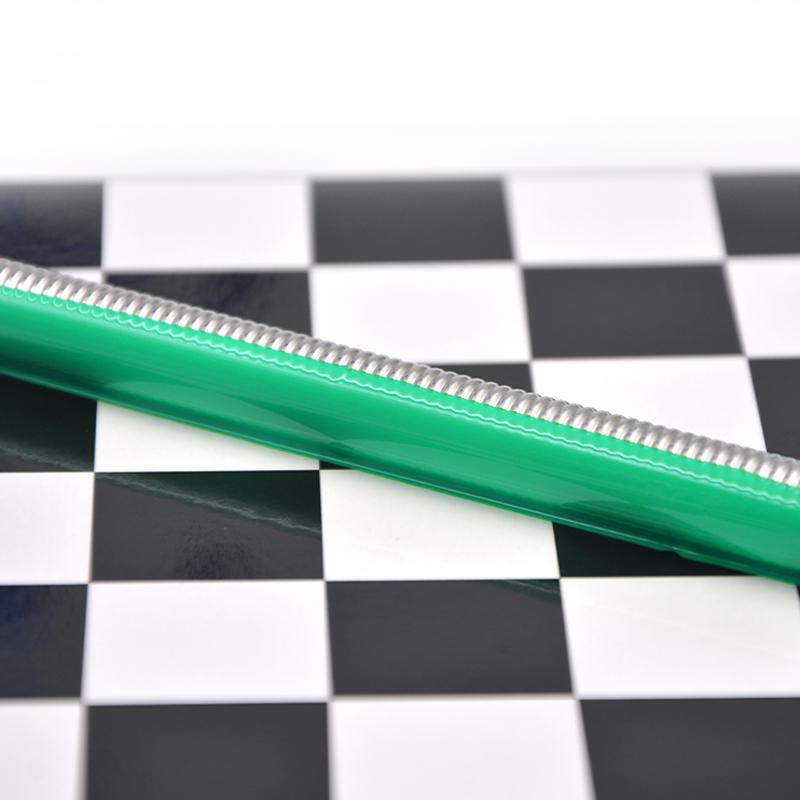

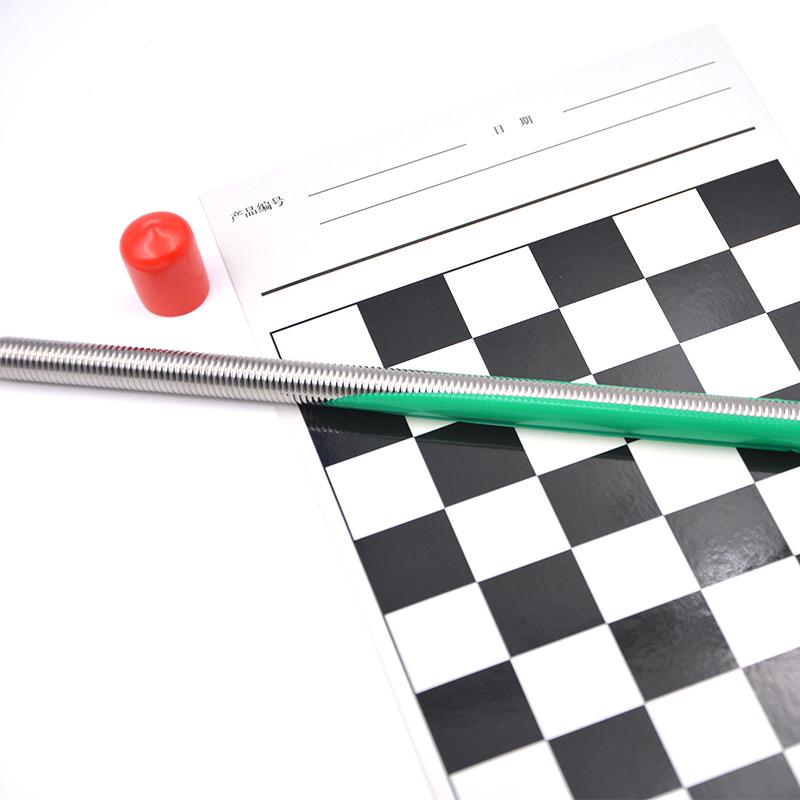

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QI use the coating applicator film and then there are scratches after drying. How to solve it? It is estimated that the viscosity of Resin is a bit large and it is not easy to levelling.
A Applicators are recommended for products with viscosity greater than 1000cp
QWhat is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
A The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
QMoulding rod is better for winding or extrusion?
A In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
QCan this cable stick be matched with a Film Applicator?
A Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
