China TBJ-X5 Vacuum chuck Drawdown blade Lab Film Applicator with Heating Coating Machine

SE
Vacuum chuck + heating + Drawdown blade three-in-one, suitable for thick film Spreader on film, can be heated and dried, temperature up to 180 ℃; Drawdown blade Spreader thickness 0~ 10mm, film thickness adjustable, accuracy +/- 0.001mm, aluminum alloy baseplate, touch screen operation.
$3802.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-X5 Automatic Film ApplicatorSPEC

zy TBJ-X5 Automatic Film ApplicatorDetails

zy TBJ-X5 Automatic Film ApplicatorPacking list

SKU
NB033740
Coating method
Drawdown blade
Drawdown blade type
Integrated drawdown blade
Drawdown blade Accuracy
±0.003mm
Drawdown blade thickness range
0-10Mm adjustable
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Coating size
300 * 400Mm (Miscellaneous size can be customized)
Spreader distance control
The number can be set arbitrarily within the range of 1-400mm
Vacuum Area
300 * 400Mm (can be customized)
vacuum aperture
Φ1.2mm
Vacuum hole spacing
20*20mm
Vacuum pump size
380*180*280mm
Heating Temperature range
RT+~180℃
Temperature Accuracy
±3℃
Heating mode
Baseplate heating
Substrate clamping method
Vacuum adsorption
Control mode
Touch screen control
Host Power Supply
Voltage 220V 50HZ
Dimension
630*410*520mm
Weight
Net Weight 65KG
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-X5
Automatic Film Applicator
Vacuum chuck + heating + Drawdown blade three-in-one, suitable for thick film Spreader on film, can be heated and dried, temperature up to 180 ℃; Drawdown blade Spreader thickness 0~ 10mm, film thickness adjustable, accuracy +/- 0.001mm, aluminum alloy baseplate, touch screen operation.
China TBJ-X5 Vacuum chuck Drawdown blade Lab Film Applicator with Heating Coating Machine Picture

TBJ-X small-scale coating testing machine for inspection all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.

Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted by hand are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The automatic Film Applicator is carefully designed to allow the operator to conveniently apply a precise wet film on different substrates, which greatly improves the reproducibility of the film.

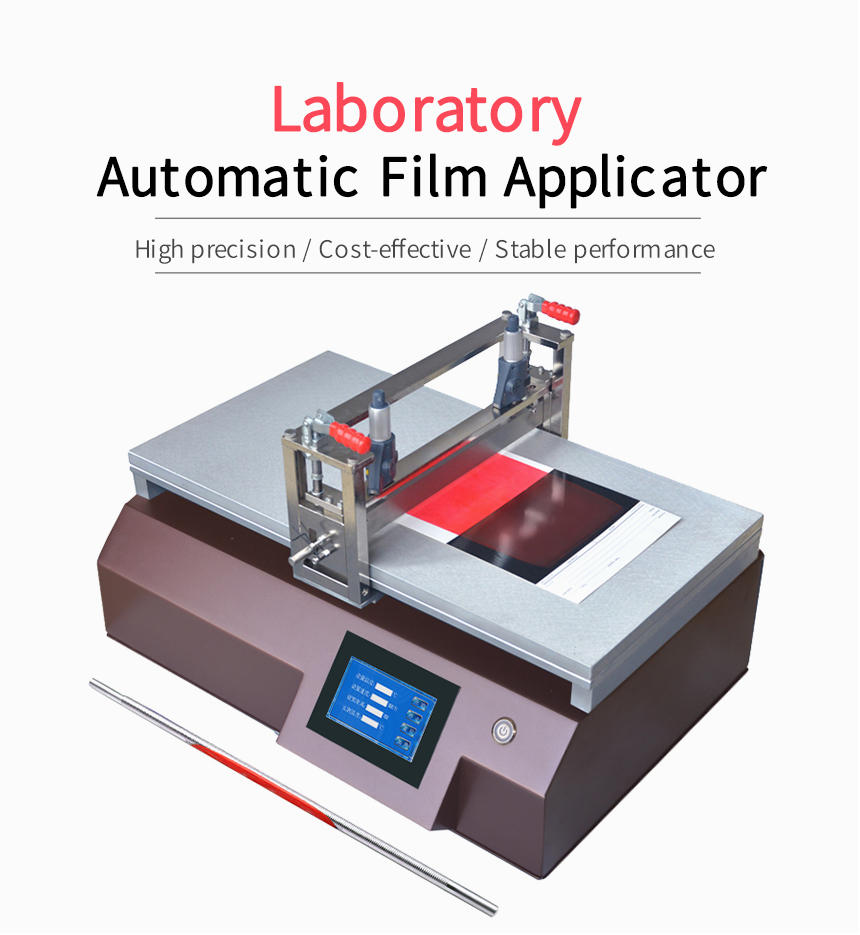

CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 1



CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 2



CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 3

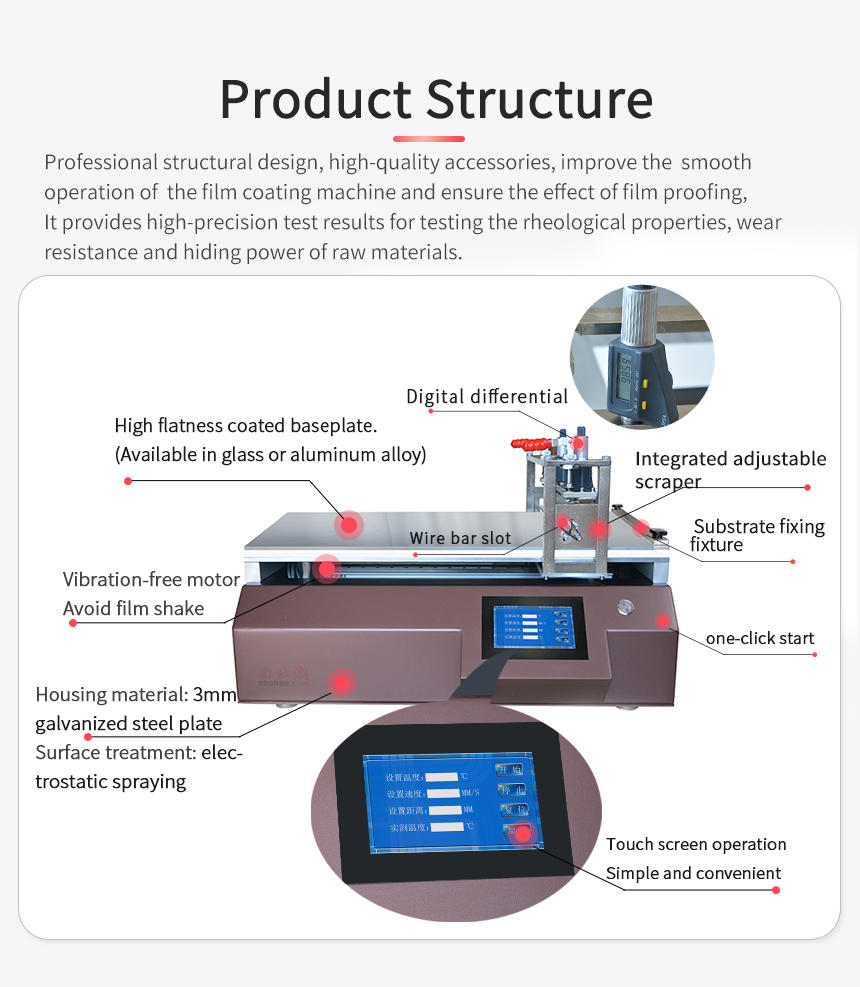

CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 4



CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 5



CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 6

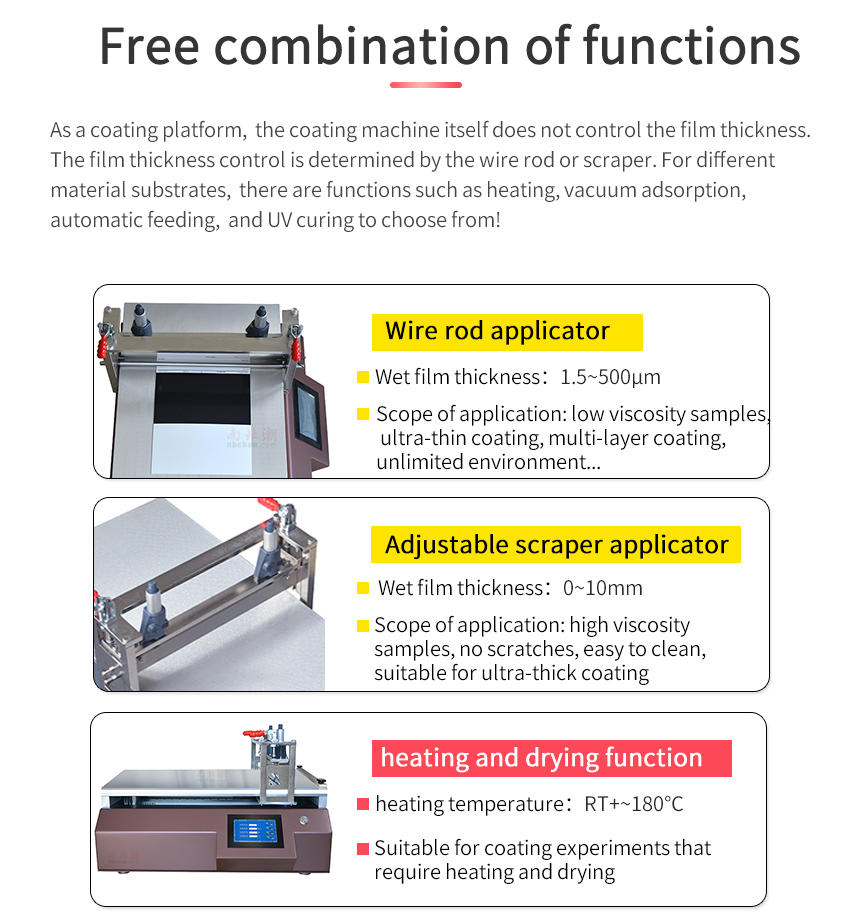

CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 7

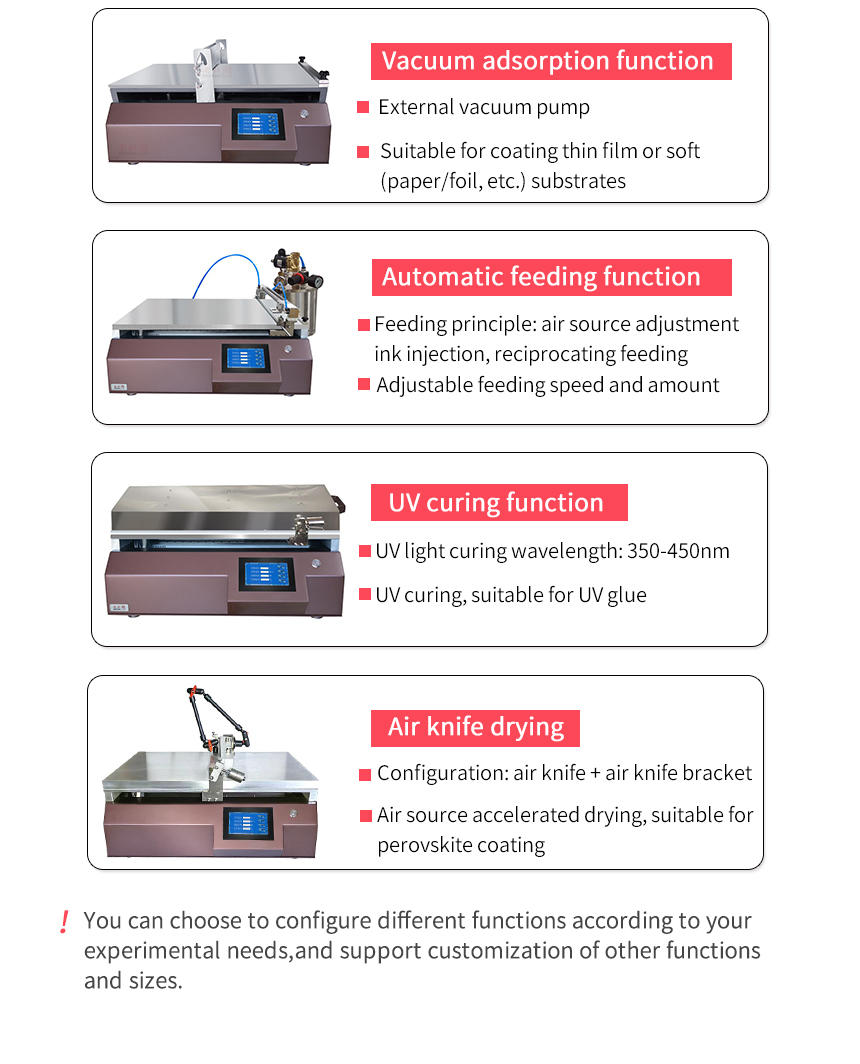

CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 8

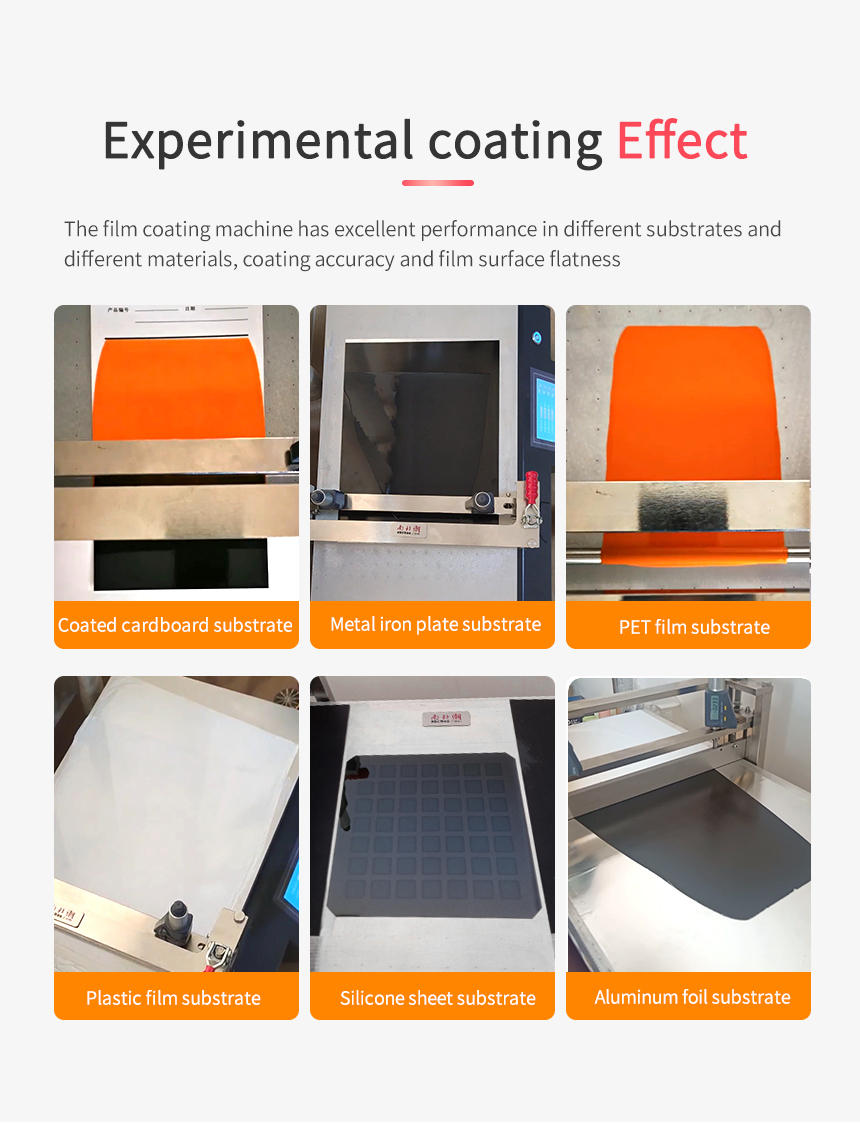

CHINA TBJ-X5 vacuum adsorption scraper Applicator with heating Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QLithium electrode coating Film thickness: more than 100 microns Substrate: Aluminum foil Copper foil Need heating
A You can use the doctor blade heating vacuum adsorption coater
QLaboratory experiments nanofiltration membrane ultrafiltration membrane want to ask the doctor blade is a separate or adjustable gap?
A Doctor blade width is not adjustable, gap height is adjustable
QBattery Diaphragm Spreader 0.5Mm thickness, Did you make that slot-die Spreader?
A Recommended doctor blade vacuum heating type
QTo make silicone film Phosphor should be added to the silicone, and the viscosity is 8000~ 9000cp. 80~ 100μm, Dry-Film; Thin film substrate
A With doctor blade + heating type + vacuum adsorption
QMake medical apparatus Film thickness, 600μm, Substrate: pet, We're going to do two coats at the same time.
A With doctor blade vacuum adsorption type coater with heating function,
QWe mainly coat the electrode sheet, to achieve a surface load of 15mg/cm2, no material loss, with heating function Can be matched with automatic feeding system What is the function of this slot die extrusion?
A Adjustable gap thickness
QCarbon fiber composite Resin Send me the electronic version of the technical parameters and equipment instructions.
A Recommended doctor blade heating vacuum adsorption type https://www.nbchao.com/p/33740/ Metering rod & doctor blade vacuum adsorption clamp type
QHello, I use toner slurry Spreader on carbon paper. The viscosity of the slurry is several thousand cp. See if there is a suitable Scraping Machine to recommend. Film thickness: 50~ 100μm wet-film
A Vacuum adsorption type with doctor blade heating
QSmall coater Coated electrode material Substrate: copper foil aluminum foil Thickness is relatively thick and requires heating
A Recommended doctor blade vacuum adsorption heating
QFilm Applicator, for high viscosity creams, requires heating function Cream, the viscosity is a bit high, and it will also be used in patches.
A Vacuum adsorption coater with doctor blade
