China drawdown Bar & blade Experimental Film Applicator TBJ-B2-XB Perovskite Film high-precision Spreader
SE BoutiqueBar + Drawdown blade type, the baseplate is Glass, the film format is 300 * 400mm; it can meet the ultra-thin Spreader or high viscosity and high film thickness Spreader, standard imported bar, accuracy up to 1μm, touch screen operation.
$2403.00/set
PromotionLoading...
Coupon
Model：
TBJ-B2-XB
zy
Manufacturer authorization
Similar products
-
HUINUO TM3000 Automatic Film Applicator Mini with Wire rod and Adjustable drawdown blade$ 2403.00SE -
HUINUO intelligent TM3000A metering rod & drawdown blade Automatic Film Applicator Aluminum alloy baseplate$ 2869.00SE -
China Drawdown blade bar Experimental Film Applicator TBJ-B2-DJ3 Automatic Film Applicator$ 2480.00SE -
HUINUO intelligent TM3000pro laboratory wire rod drawdown blade coater Film Coater$ 2713.00SE -
Domestic TBJ-B2-DJ17 wire rod scraper type coating machine, small film scraping machine, coating format 900 * 1300mm$ 7533.00SE

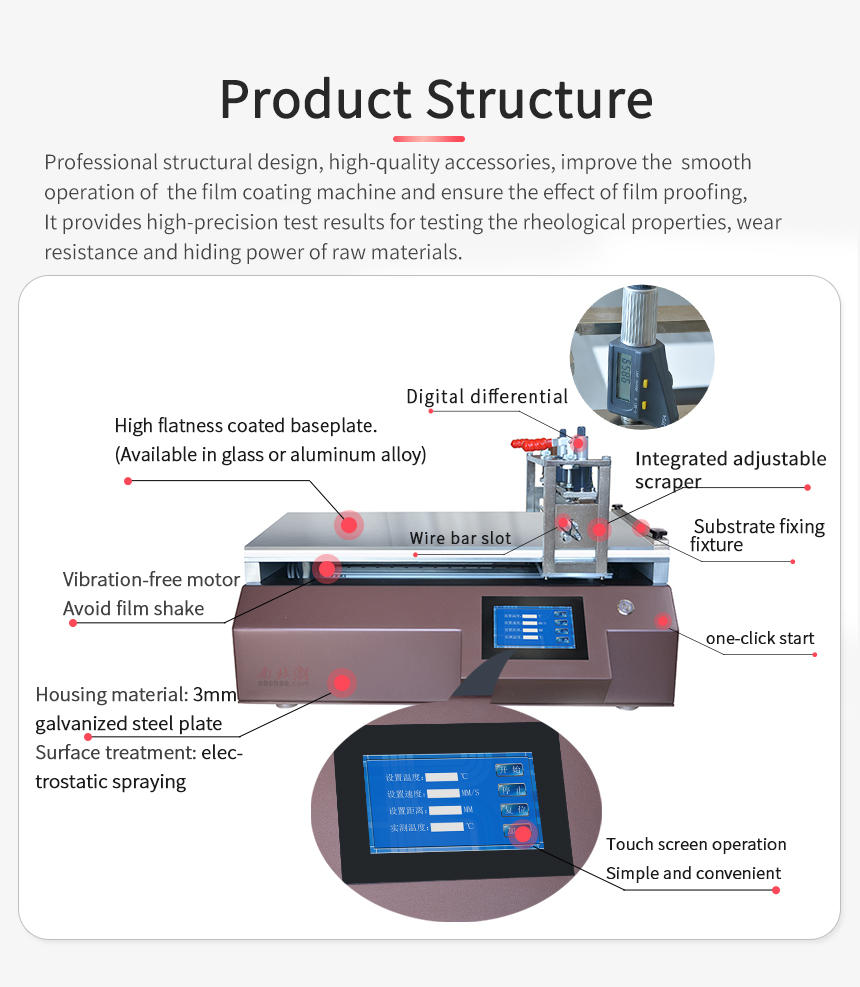

zy TBJ-B2-XB Automatic Film ApplicatorSPEC
zy TBJ-B2-XB Automatic Film ApplicatorDetails
zy TBJ-B2-XB Automatic Film ApplicatorPacking list
- SKU
- NB033803
- Coating Method
- Bar + drawdown blade
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Coating thickness range
- 0.001~ 10Mm adjustable
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Drawdown blade application width
- 400mm
- Drawdown blade material
- 304 stainless steel
- Meyer rod coating thickness Range
- 1~ 571.5 μm (Spreader thickness according to bar type)
- Meyer rod coating Accuracy
- ±0.001mm
- Coating Speed
- 5~ 200Mm/s (< 5mm/s can be customized)
- Effective coating Area
- 400 * 300Mm (can be customized)
- Spreader Itinerary
- Digital arbitrary setting within the range of 1~ 400mm
- Substrate clamping method
- Mechanical fixture
- Control mode
- Touch screen control
- Host Power Supply
- 220V 50HZ 1700W
- Dimension
- 626*410*520mm
- Net Weight
- 55KG
- speed control
- Infinitely variable speed

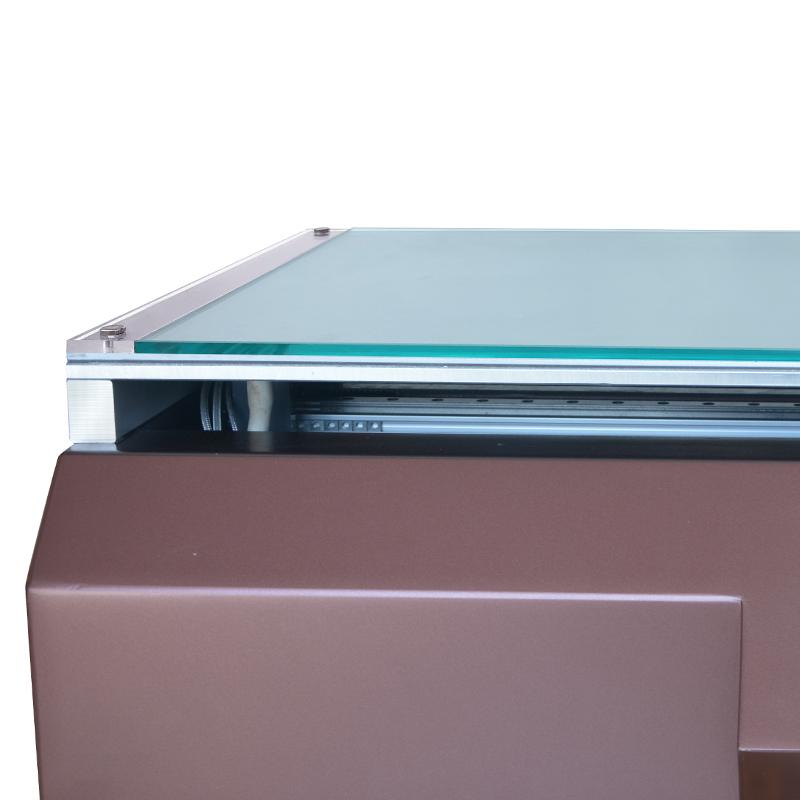

- Bottom plate material
- Glass plate

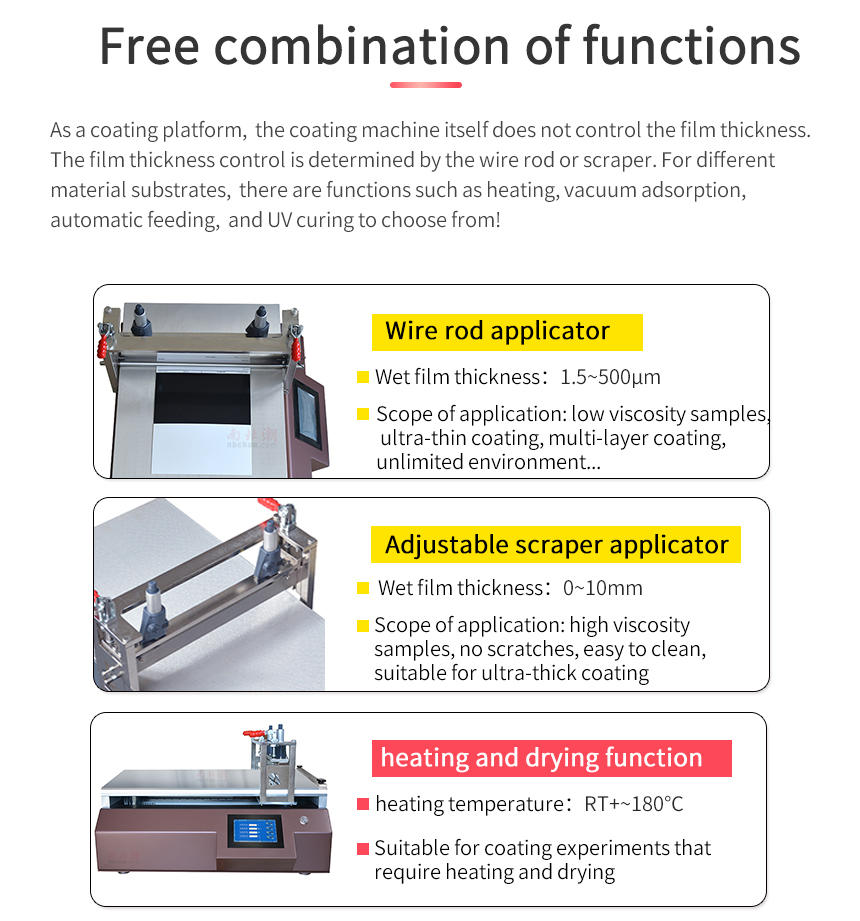

- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle

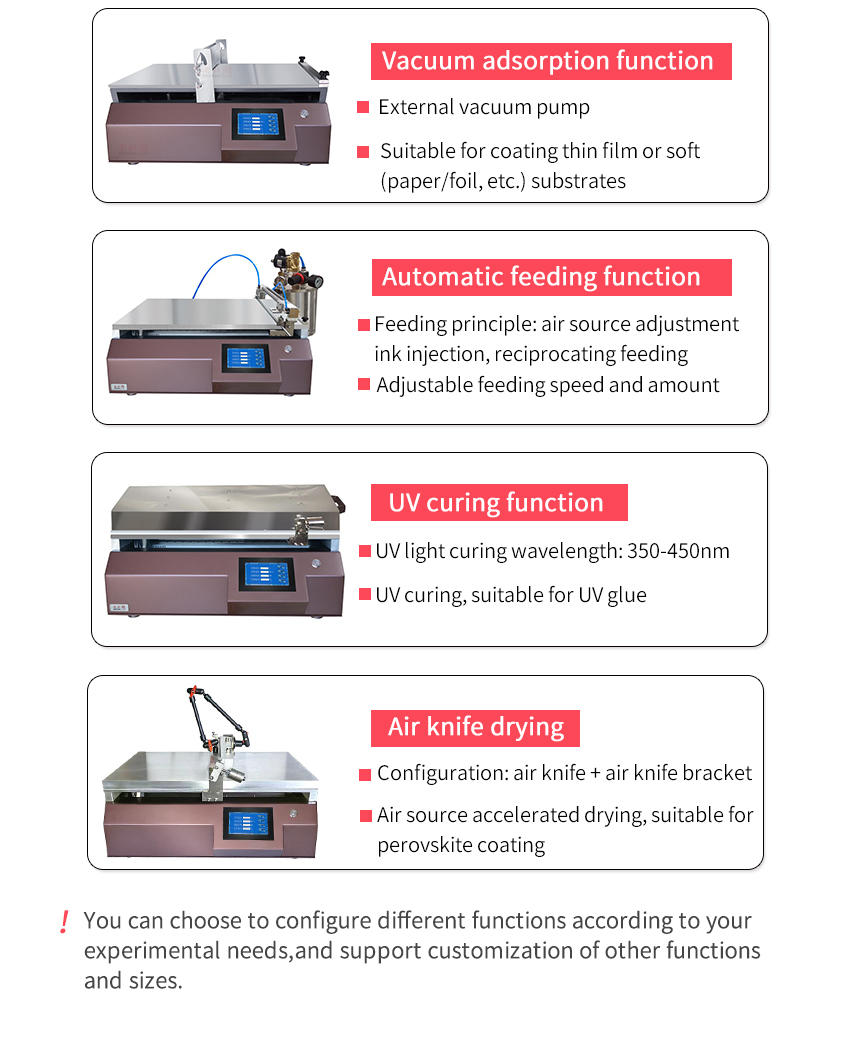

- customizable function
- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
- material
- aluminum alloy
- principle
- The paint flows into the film head, the drawdown Bar & blade is combined, and the coating is uniform by its own gravity.
- function
- Apply the coating evenly to the surface of the material.

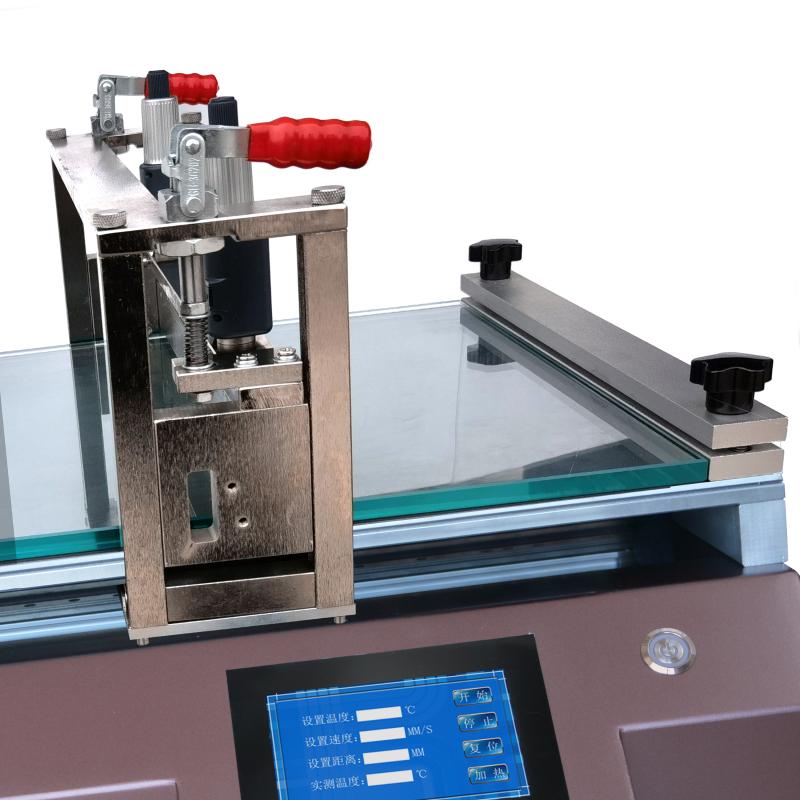

TBJ-B2-XB
Automatic Film Applicator
Bar + Drawdown blade type, the baseplate is Glass, the film format is 300 * 400mm; it can meet the ultra-thin Spreader or high viscosity and high film thickness Spreader, standard imported bar, accuracy up to 1μm, touch screen operation.
product description
TBJ-B experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted by hand are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.
This automatic coating machine is equipped with 1 domestic (CN) wire rod and 1 imported wire rod as standard, and the coating accuracy of the imported wire rod is as high as 1μm .
Optional
|
|
|
FAQ
QDoes the lab coater support specific customization features?
A
Yes, the Film Applicator supports a variety of customization features, such as jet system devices, UV solid inclusion devices, automatic inking systems, etc., which can be customized according to customer needs to meet specific Spreader needs.
QWhat is the material of the small coater Spreader?
A
Spreader table of the coater is made of Glass plate with good Smoothness.
QWhat are the advantages of this Film Applicator over Manual Spreaders?
A
The Automatic Film Applicator ensures the uniformity and smoothness of the Spreader coating by controlling the speed and stable pressure, thereby improving the reproducibility of the film and avoiding the inconsistency in the artificial Spreader process. It is especially suitable for applications requiring high-precision film.
QCoating
Film thickness, not determined, not very thick, 1mm
Nonwoven substrate
No heating
A
With metering rod & doctor blade type coater, TBJ-B2-XB metering rod & doctor blade integrated Lab Film Applicator
QApply filtrate film,
No heating required
There is no limit to thickness.
A
With metering rod & doctor blade coater
QI want to ask if we can control the thickness, about 0.5-0. 8mm.
Laboratory organic polymer film
The laboratory scraped it with a Glass wrench. I bought a Film Coater before. Thin coating can be controlled, but thick coating cannot be controlled. The range is not enough.
After applying, put it in water to remove the film.
After the film is removed, adsorption is naturally dried on the Drawdown Vacuum Plate
A
Can use metering rod & doctor blade coater
QDo composite coatings
The first layer is 10μm.
Second layer wet-film 500 microns
A
You can use wire rod + doctor blade Film Applicator + heating + custom head and tail fixing fixture
QFor heating and ultraviolet
We make hydrogels, which need to be scraped and dried.
Below 1mm, the substrate needs a hydrophobic material, and the material is some polymer organic compounds
A
Recommended doctor blade heating type, UV curing
Doctor blade + heating + UV curing,
QMake composite film
A
With metering rod & doctor blade
QFilm Applicator
Is there 300 * 400mm?
Coated organic material polymer;
Glass plate, material film to be disbonded
A
Can use metering rod & doctor blade type coater
