China Vacuum chuck drawdown Bar & blade Automatic Film Applicator TBJ-X3-XB with imported bar
SE BoutiqueVacuum chuck, heating, bar, Drawdown blade integrated; standard 1 China and 1 high-precision imported bar; silent vibration-free motor; high flatness aluminum alloy baseplate, stepless speed regulation, application length up to 40cm.
$4113.00/set
PromotionLoading...
Coupon
Model：
TBJ-X3-XB
zy
Manufacturer authorization
Similar products
-
TM3300 Wire bar & Drawdown Blade Laboratory Film Applicator with Heated Vacuum Table$ 4734.00SE -
HUINUO TM3300pro High-precision Automatic Film Applicator with Drawdown Blade and Rod Applicator, Plus Heated Vacuum Table$ 5667.00SE -
CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C$ 4423.00SE -
China drawdown Bar & blade Vacuum chuck heating multifunctional coater TBJ-X3-DJ10 custom Glue Coater$ 7222.00SE -
China Intelligent Program Control Film Applicator TBJ-X3-DJ19 bar + Drawdown blade + Heating + Vacuum chuck type$ 7222.00SE
zy TBJ-X3-XB Automatic Film ApplicatorSPEC
zy TBJ-X3-XB Automatic Film ApplicatorDetails
zy TBJ-X3-XB Automatic Film ApplicatorPacking list
- SKU
- NB033810

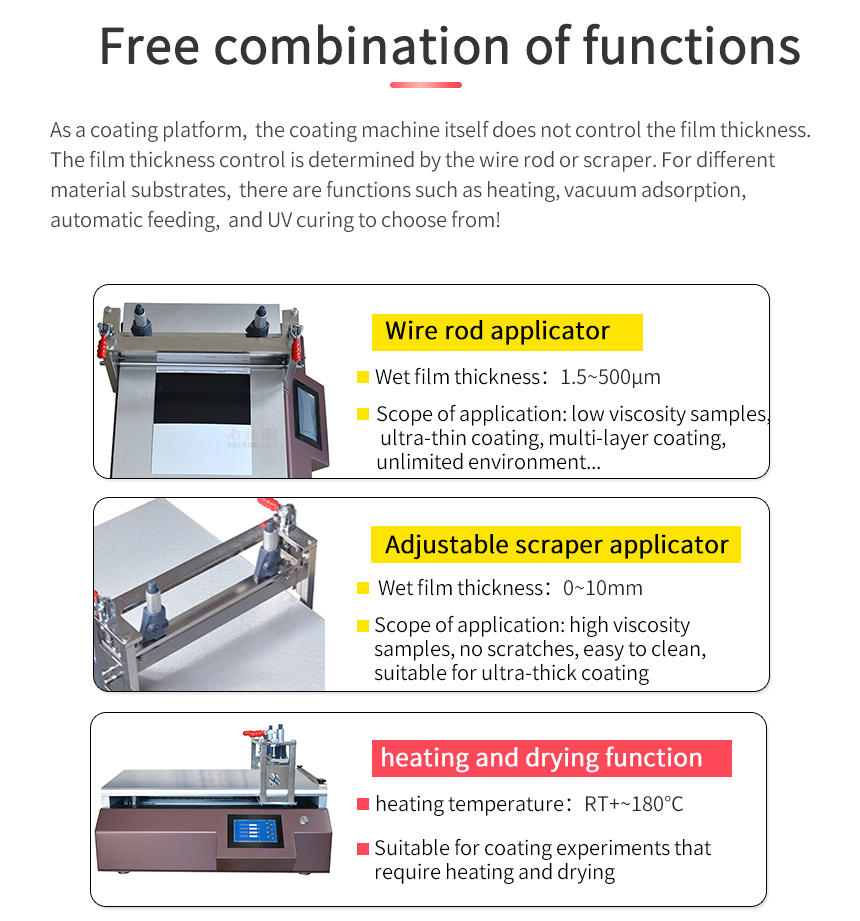

- Coating method
- Wire rod + adjustable drawdown blade
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.001-10Mm adjustable
- Drawdown blade length
- 400mm
- Drawdown blade material
- 304 stainless steel
- Wire Rod Coating Thickness Range
- 1-571.5 μm (Spreader thickness determined according to rod model)
- Spreader Accuracy
- ±0.001mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300 * 400Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-400mm
- Vacuum Area
- 300 * 400Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- Substrate clamping method
- Vacuum adsorption
- Control mode
- Touch screen control
- speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Heating Temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Heating mode
- Baseplate heating
- Dimension
- 630*410*520mm
- Net Weight
- 65KG
- Host Power Supply
- 220V 50HZ
- Power
- 1500W
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

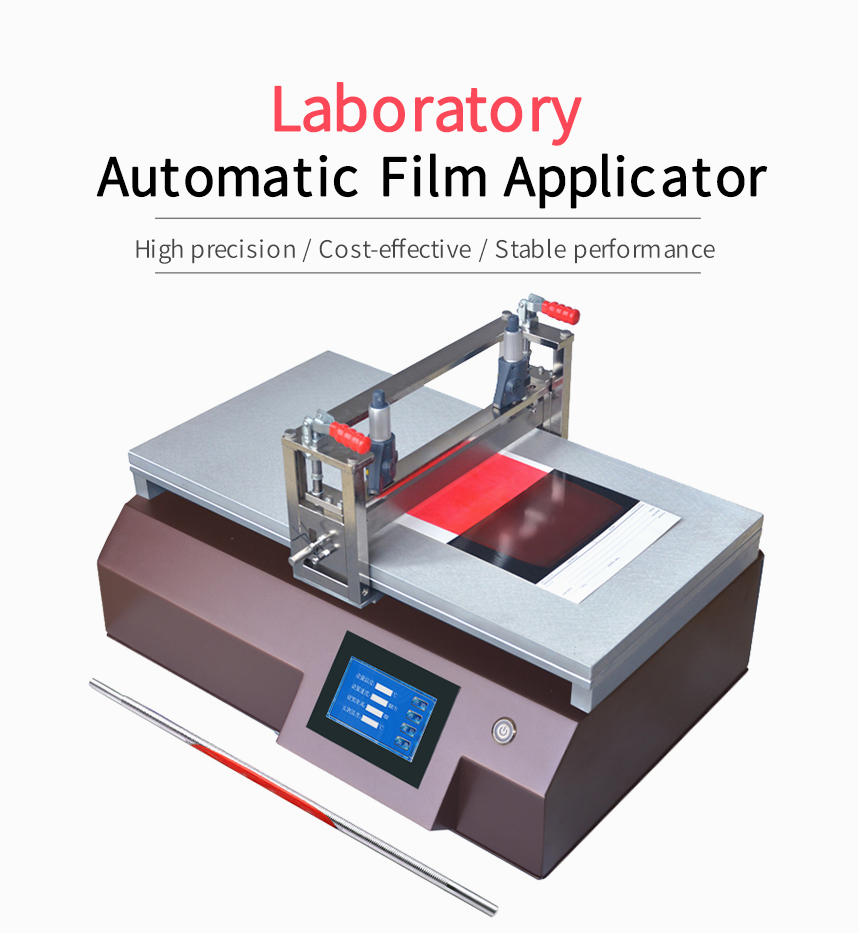

TBJ-X3-XB
Automatic Film Applicator

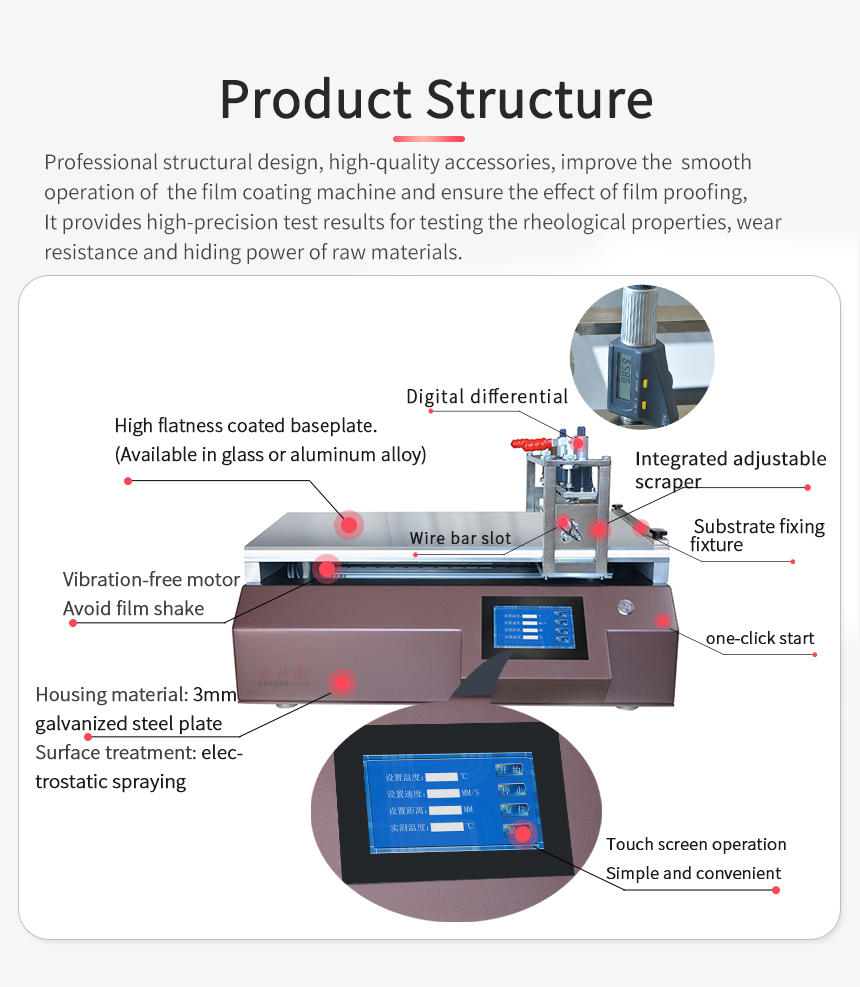

Vacuum chuck, heating, bar, Drawdown blade integrated; standard 1 China and 1 high-precision imported bar; silent vibration-free motor; high flatness aluminum alloy baseplate, stepless speed regulation, application length up to 40cm.
product description
TBJ-X experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted by hand are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.
This automatic coating machine comes standard with one domestic (CN) wire rod and one imported wire rod with a precision up to 1μm .
Optional
|
|
|
FAQ
QCan this small coater be used to make a mouth-soluble film? Tens of microns to 100 microns.
A
Yes, this one has heating and vacuum adsorption functions. At the same time, it supports wire rod and doctor blade Spreader to meet the needs of different thickness films.
QOn the floor film laminating, the floor is a wood substrate, the specification is 140mm * 300mm * 30mm and the surface is flat, with radians, need to apply hot-melt adhesive on it, and then cover the pvc film
Coating thickness, about 35g per square meter, hot-melt adhesive melting point 125 ℃
A
With four-in-one function, metering rod & doctor blade heating vacuum adsorption integrated,
Use vacuum adsorption to smooth the PVC film adsorption, then melt the hot-melt adhesive onto the countertop that has been heated to 130 degrees, set the corresponding film thickness, apply the hot-melt adhesive evenly on the PVC film, and then cover the wooden board.
QI want to prepare a fluorescent film on the release film, the thickness is 50~ 400 microns, and it needs to be heated. Which Film Applicator can I use?
A
Release film, to use vacuum adsorption function, it is recommended to use metering rod & doctor blade heating vacuum adsorption Multifunctional Film Applicator.
QFilm, paper substrate, film thickness, need to be adjustable, about 0.1~ 100mm, need to be heated, which coater is suitable?
A
Film substrate to be fixed with vacuum adsorption, thickness adjustment can be used doctor blade, recommended metering rod & doctor blade heating vacuum adsorption Film Applicator.
QDo traditional Chinese medicine pressure-sensitive film, do amylase film, uniform film on Glass plate, film thickness 1mm, generally 0.3~ 0.5mm
To have heating function, motor Stability is required,
Glass, Aluminum Alloy, Spinning & weaving Cloth,
A
Four in one multi-function, metering rod & doctor blade heating vacuum adsorption
QPET substrate, for cards
Coated hot-melt adhesive
No film laminating, A4 paper size
A
With four-in-one function, metering rod & doctor blade heating vacuum adsorption coater
QDo you have a film machine?
Scraped film, size 10cm
Sample on film
A
With four-in-one function, metering rod & doctor blade heating vacuum adsorption coater
QYou need a film coater.
The substrate is epoxy resin
It needs to be tens of microns.
Heating and vacuum adsorption
A
With four-in-one function, metering rod & doctor blade heating vacuum adsorption coater
QLithium battery, etc.
Adsorption platform + heating function is enough.
I just want a heating platform
A
Can use four-in-one function, metering rod & doctor blade heating vacuum adsorption coater
QOur coater requirements:
1. The platform has vacuum adsorption and needs adsorption of the thinnest film of about 10 microns
2. Platform with heating, Temperature range covering RT-100 ℃
3. Requires wire rod and doctor blade, wet-film Spreader thickness range of about 20-120 microns
A
With a four-in-one function,
