China

JFA-II Fixture Film Applicator YONGLIDA 230mm application length

YONGLIDA JFA-II Fixture Film Applicator is an automated Film Applicator. The application length of JFA-II Film Applicator (also known as film Coater) is 230mm, and the Spreader speed can be stepless from 0 to 8cm/S.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

YongLiDa JFA-Ⅱ Film ApplicatorSPEC

YongLiDa JFA-Ⅱ Film ApplicatorDetails

YongLiDa JFA-Ⅱ Film ApplicatorPacking list

SKU
NB003383
Coating method
Wire rod/drawdown blade
Coating size
470*200mm
Application width
200mm
Spreader trip
230mm
Coating speed
0~80mm/s
Total power consumption
100W
Host Power
220V 50Hz
Dimensions
470*370*240mm
Machine Weight
34Kg
speed control
stepless speed regulation
JFA-Ⅱ
Film Applicator

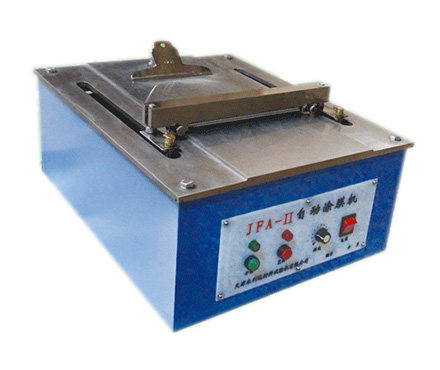

JFA-II Fixture Film Applicator YONGLIDA 230mm application length Picture

Introduction to JFA-II clamp coating machine

Yonglida JFA-II clamp coating machine is an automatic clamp coating machine that automatically coats precise wet films on different substrates. It can reduce manual operation pressure and the influence of uneven manual stress, and ensure the coating quality. Uniformity and reproducibility. The coating length of the JFA-II clamp coating machine is 230mm, and the coating speed is continuously variable from 0 to 8cm/S.

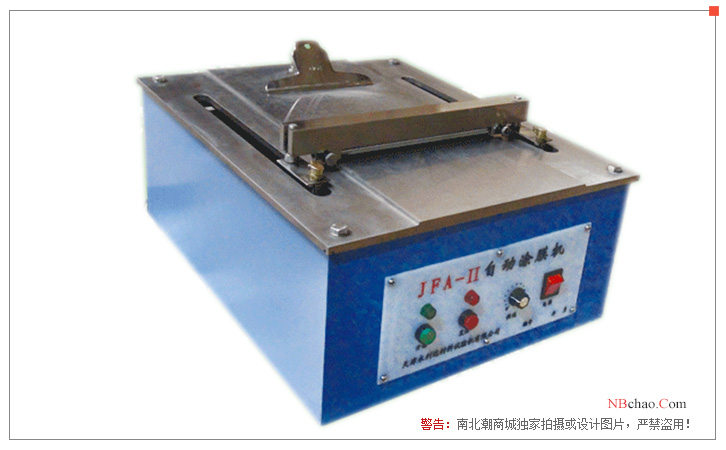

JFA-II clamp coating machine display diagram

Yonglida JFA-II clamp coating machine display diagram

Optional

Coated wire rod

Coating film test paper

Imprint bed coating station

FAQ
QASTMD823 Automatic Film Applicator
A JFA-ⅱ Automatic Film Applicator, please refer to
QWhat is the difference between the JFA-II and AFA-II Film Applicators?
A Hello, JFA-II is an ordinary Film Applicator, while the FAA-II model has a vacuum adsorption disc, which has adsorption on the flexible Spreader substrate and can keep the Spreader substrate flat.
QCan the Film Applicator be used on this JFA-II film Spreader?
A Hello, it's OK.
Standard
