AN AD25 High Shear Dispersible Mulser 25F Stainless Steel Homogenizer

Speed range 1000-28000rpm stepless speed regulation, maximum processing capacity 5000mL, using 316L stainless steel working head and PTFE bearings, with overload protection and Timer Control functions.

$1296.00/set

PromotionLoading...

Coupon

Model：

AD25(25F)

Certificate

Manufacturer authorization

Contact

Details SPEC Con CAT

AN AD25(25F) High Shear Dispersion MulserSPEC

AN AD25(25F) High Shear Dispersion MulserDetails

AN AD25(25F) High Shear Dispersion MulserPacking list

SKU: NB033836

Rated Voltage: AC220V

Rated frequency: 50/60HZ

input power: 950W

output power: 570W

Rated torque: 1.95 N.m

Duty Cycle: S1 (continuous)

Operation control mode: Combined control knob

Speed range: 1000~28000rpm

Speed regulation mode: stepless speed regulation

RPM display: LED

Speed memory function: Yes

Approved torque: 190N.cn

Work head material: SS 316L stainless steel

Allowable environment temperature: ≤40℃

Allowable Relative Humidity: ≤80%

Dimensions: 215*310*720mm

Machine Weight: 9.0kg

Work head specification: 25F

standard throughput: 80~5000mL

Max. Processing Viscosity: 5000cp

Rotor maximum linear speed: 18m/s

Maximum immersion liquid height: 225mm

Work head specification: 25mm

Working head length: 290mm

Maximum operating temperature: 120℃

Bearing material: PTFE

Minimum immersion liquid height: 50mm

AD25(25F)

High Shear Dispersion Mulser

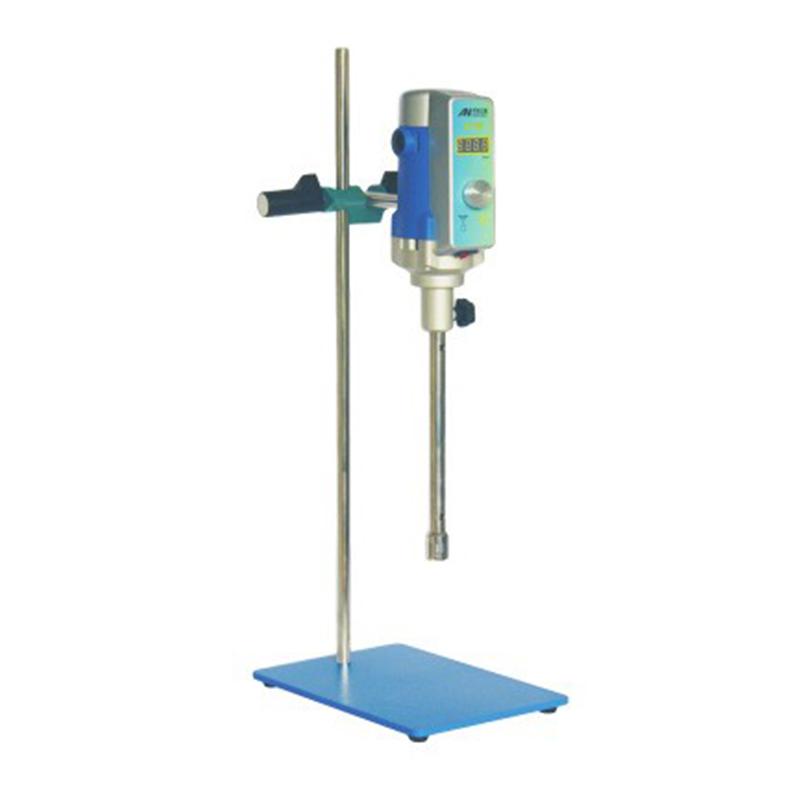

AN AD25 High Shear Dispersible Mulser 25F Stainless Steel Homogenizer Picture

Introduction

The AD25 dispersion homogenizer is driven by a high-speed motor and is suitable for mixing low- to medium- and high-viscosity liquids or dispensing in liquid media, tissue cell disruption, etc. The integrated structure of the drive output and the positioning of the working head makes the running state more stable; the working head is made of good stainless steel, and the experimental application range is wide; the running speed is controlled by micro-processing, which has the ability to instantly compensate for the speed change caused by load changes and power fluctuations, and the constant speed is reliable; the built-in soft start and automatic overload protection ensure the safety of the experiment to run continuously at full load at a certain time; the speed is stepless to adjust the operating speed at any time to meet the needs of the experiment. The digital display speed is intuitive, the experimental data collection is convenient, and the operation Timer Control ensures that the experimental time is effectively controlled.
