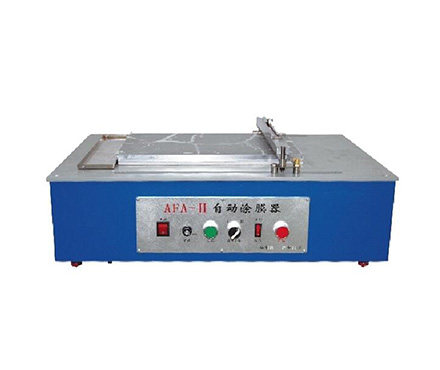

FAA-II Automatic Film Applicator YONGLIDA with Vacuum Suction Cup
The YONGLIDA AFA-II Automatic Film Applicator is an Automatic Film Applicator with a vacuum suction cup with a total Power of 350W. The Coating table size of the AFA-II Automatic Film Applicator is 300x200mm.
Model：
Similar products
-
China TBJ-X5 Vacuum chuck Drawdown blade Lab Film Applicator with Heating Coating Machine$ 3802.00SE -
MODERNER AFA-V Miniature Automatic Film Applicator Automatic Film Applicator -
China TBJ-X1 Vacuum chuck Drawdown blade Film Applicator Lithium battery small coater$ 2791.00SE -
China TBJ-A3 bar Vacuum chuck Lab Film Applicator Electric coater$ 2014.00SE -
China TBJ-X1 Vacuum chuck Drawdown blade Lab Film Applicator Size 330 * 400mm$ 2962.00SE
YongLiDa AFA-Ⅱ Automatic Film ApplicatorSPEC
YongLiDa AFA-Ⅱ Automatic Film ApplicatorDetails
YongLiDa AFA-Ⅱ Automatic Film ApplicatorPacking list
- SKU
- NB003384
- Coating method
- Wire rod/drawdown blade
- Coating size
- 300*200mm
- Application width
- 200mm
- Spreader trip
- 230mm/285mm
- Coating speed
- 0~80mm/s
- Total power consumption
- 350W
- Host Power
- 220V 50Hz
- Dimensions
- 705*505*270mm
- Machine Weight
- 65Kg
AFA-Ⅱ
Automatic Film Applicator
Introduction to AFA-II automatic film coating machine
Yonglida AFA-II automatic film coating machine is equipped with a Wet Film Applicator or a wire rod (need to be purchased separately) to automatically complete the coating movement and prepare a wet film of a specific thickness. The AFA-II automatic film coating machine has a vacuum suction cup with a power of 350W, a coating size of 300 x 200mm, and an adjustable coating speed.

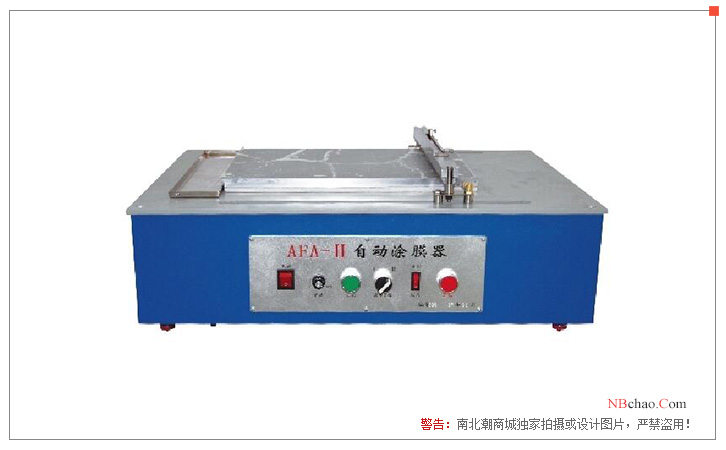

AFA-II automatic film coating machine display
Optional
|
|
|
FAQ
QCan YONGLIDA AFA-ⅱ Automatic Film Applicator meet the GB/T9756 standard?
A
Applicable, you can consult the customer service of the mall for details about the GB/T9756 standard.
QWhat is the difference between the JFA-II and AFA-II Film Applicators?
A
Hello, JFA-II is an ordinary Film Applicator, while the FAA-II model has a vacuum adsorption disc, which has adsorption on the flexible Spreader substrate and can keep the Spreader substrate flat.
QDoes the AFA-II Automatic Film Applicator have a vacuum function?
A
Hello, yes, it comes with a vacuum suction cup.
QDoes the AFA-II Automatic Film Applicator have a vacuum suction cup?
A
Hello, this FAA-II has a vacuum suction cup.
