HORIZON XLB-30 Impact Tester Plastic film, Impact test

SE
A/B dual test mode, Measurement range 50~2000g, accuracy 0.1g. With pneumatic clamping sample, intelligent data processing and automatic result output functions, the test process does not require manual intervention.
$3293.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Horizon XLB-30 Impact TesterSPEC

Horizon XLB-30 Impact TesterDetails

Horizon XLB-30 Impact TesterPacking list

SKU
NB033843
Measurement range
A method 50~2000g
Measurement Accuracy
0.1g(0.1J)
Measurement method
A method
test conditions
23 ℃ 50% RH (standard)
Specimen size
＞150mm×150mm
Power
AC220V±10％　50Hz
Dimensions
A法500(L)mm×450(B)mm×1320(H)mm
Net Weight
70kg
Specimen clamping
Pneumatic
XLB-30
Impact Tester
A/B dual test mode, Measurement range 50~2000g, accuracy 0.1g. With pneumatic clamping sample, intelligent data processing and automatic result output functions, the test process does not require manual intervention.

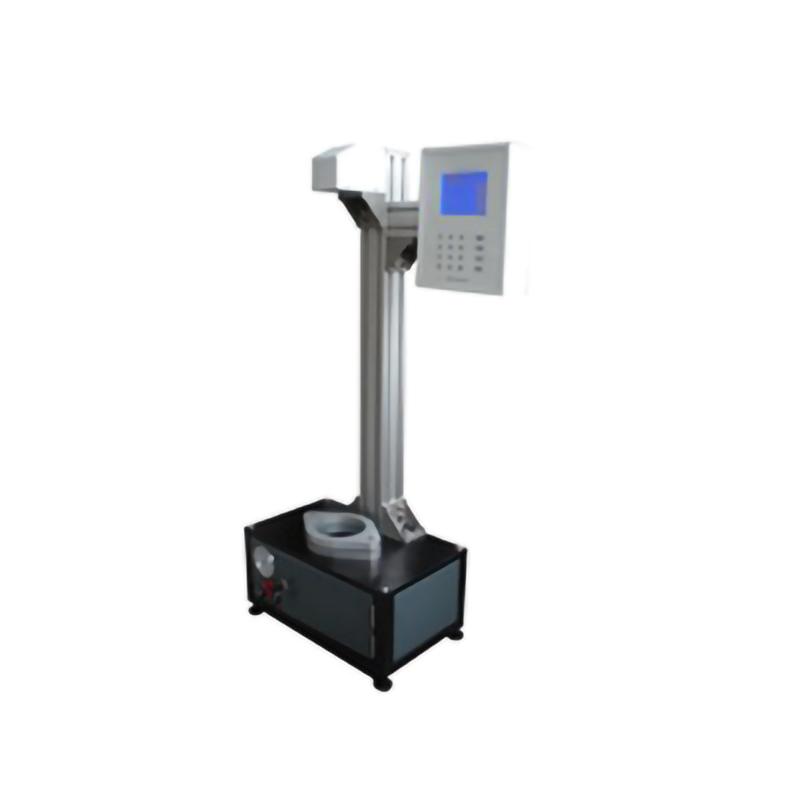

HORIZON XLB-30 Impact Tester Plastic film, Impact test Picture

Applications

XLB-30A dart impact Tester is suitable for dart impact test on various plastic films and sheets. This product complies with GB/T9639 "Plastic Films and Sheets Impact Resistance Test Method Free Falling Dart Method", and also meets ISO7765 "Plastic Films and Sheets Determination of Impact Resistance - Free Falling Dart Method", and ASTMD1709 "Polyethylene Plastic Anti-freedom Method" Standard Test Method for Dart Impact, Requirements for Test Equipment.

Features

1. The machine is novel in shape and easy to operate

2. Test method A, B dual-mode design

3. Unique lighting observation lamp, convenient and quick test

4. Microcomputer processing of test data

5. The test process is intelligent and the work efficiency is high

6. The sample is pneumatically clamped and released, which reduces the test error and test time

7. The test process does not need manual drawing marks, and the data parameter system LCD display

8. The test data system automatically recognizes and calculates without manual intervention

9. The test ends automatically, the results are displayed in various units, and the output is microprinted

configuration

Standard configuration: test host, a set of weights for method A (method B), micro-printer

Optional configuration: One set of weights for method A. One set of weights for method B

Standard: GB/T9639 "Plastic Film and Sheet Impact Resistance Test Method Free Falling Dart Method"


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
