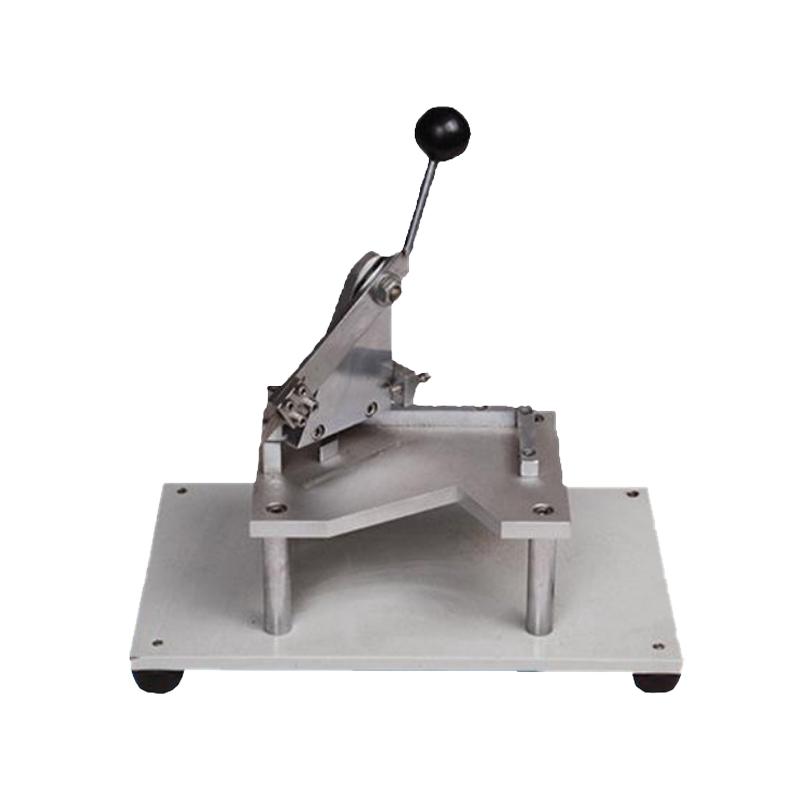

PUYUN PY-J603K Butterfly Sampler (Angle Cutting Machine)

PY-J603K

Butterfly Sampler (Angle Cutting Machine)

The combination of imported sliding rails and Japanese imported blades ensures accurate cutting parallelism and easy cutting operation. The scale is laser engraved, which is wear-resistant and easy to clean. The strong magnet design is convenient for blade installation, ensuring safe and reliable cutting.

Applications

PY-J603K Butterfly Angle Cutter is a special sampling device required for edge compressive strength test and vertical compressive strength test of corrugated cardboard. It can quickly and accurately cut the standard test size. The department's favorite auxiliary test equipment.

Features

Capable of cutting samples with precise parallelism, with engravings on them, and parallelism can be set;

Imported sliding track, closely matched with the blade imported from Japan, can easily cut out multi-layer cardboard samples. The scale is laser engraved, the scale is clear, durable and easy to clean;

With strong magnet, the blade is more convenient to install.

Precautions

1. The incision direction needs to be parallel or perpendicular to the corrugated direction, and the test sample must not be loose during the sample cutting process;

2. After each cut, pull the handle back to the position to be cut;

3. It is strictly forbidden to put your hands on the sample cutting position to prevent injury;

4. If the incision of the cut sample is seriously curled or skewed, the blade should be replaced. The blade used can be any commercially available blade of the same type (replacement method: loosen the screw on the knife holder assembly, remove the old blade, replace with a new blade, adjust the position and angle of the blade, and tighten the screw);

5. When not in use for a long time, the blade, guide post, etc. should be coated with anti-rust oil, and covered with dust;

6. A small amount of lubricating oil should always be added to the guide sleeve assembly and guide post.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
