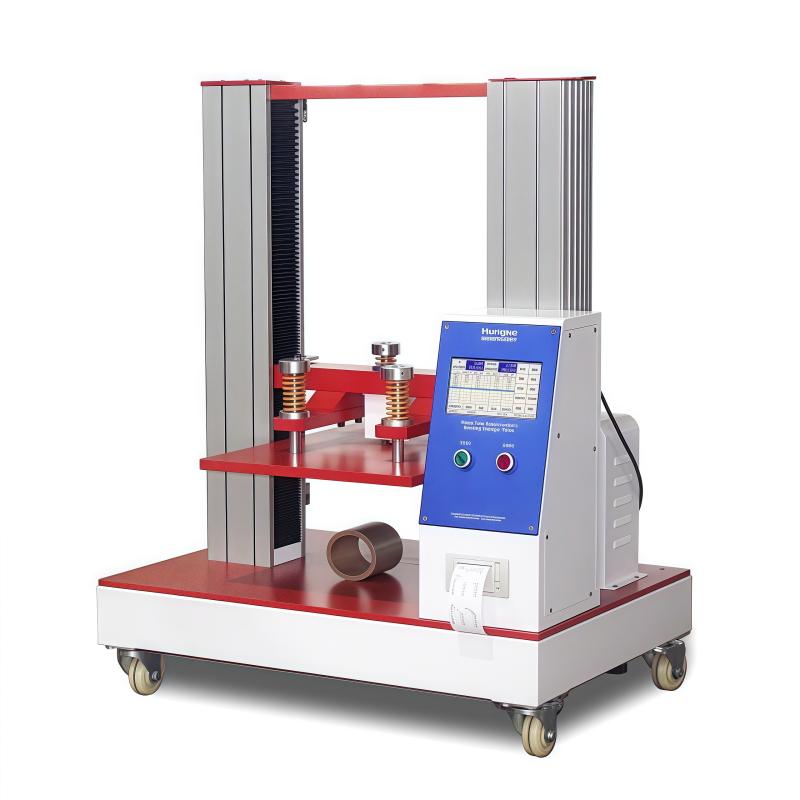

PUYUN PY-H620-800 Microcomputer compressire strength Tester

PY-H620-800

Microcomputer compressire strength Tester

Designed for testing compression, stacking and spacing performance of small and medium sized Encasement containers (such as food, electronic Encasement boxes, etc.). It uses microcomputer control and 7-inch touchscreen for real-time data collection, compression Linear dispersion display and thermal printing

Introduction

PY-H620 series microcomputer carton compression testing machine is also called: carton compression testing machine, carton compression testing machine, empty box compression testing machine, carton compression Tester, stacking Tester, pressure Tester, carton compression testing machine , Carton compression testing machine, carton compression Tester. The full box compression testing machine is a multifunctional standard carton quality testing equipment developed by our company. It is mainly used for the compressive strength test of various medium and conventional size corrugated cartons or the compressive strength of other materials is less than 50KN (5000kgf). Full-box compressive strength testing and testing of packaging containers, such as food and beverage, instant noodle packaging, cosmetic box packaging, beer packaging, grain and oil packaging and other small carton color boxes, medium-sized cartons, large cartons, honeycomb cartons and other paper products. This instrument has high control precision and professional development technology. It is the most cost-effective general-purpose carton compression testing machine in CHINA.

PY-H620 series anti-compression testing machine has the functions of various parameter testing, display, memory, statistics, printing and real-time display of anti-compression curve included in the standard, and has data processing function, which can directly obtain the statistical results of various data. With automatic reset and fault diagnosis function, easy to operate.

The results of the test can be used as an important reference for the height of the finished product packaging box in the factory or an important basis for the design of the packaging box

1. Stacking strength test function - used to test the sample in the simulated packaging warehouse to add pressure to the preset pressure and maintain it. During the whole test process, the testing machine repeatedly adjusts the pressure in this way to ensure that the pressure fluctuation does not exceed the specified range , until the specified stacking test time is reached. When the total deformation of the sample under compression reaches 100 mm, the testing machine automatically terminates the test.

2. Fixed distance and fixed force test function - used to determine the limit compressive strength of samples with high-grade special requirements. The upper platen of the testing machine moves downward at the set speed, exerts pressure on the sample after touching the sample, and measures the pressure value received by the sample at the same time, and measures the deformation of the sample when the pressure value reaches 220N. When the sample result reaches the preset pressing distance or pressure, the pressing force value and the compression deformation of the sample will be automatically recorded.

3. Compressive strength test function - used to determine the ultimate compressive strength of the sample. The upper platen of the testing machine moves downward at the set speed, exerts pressure on the sample after touching the sample, and measures the pressure value of the sample at the same time, and measures the deformation of the sample from the moment the pressure value reaches the preset value. After the sample is crushed, the testing machine will automatically record the peak pressure and the compression deformation of the sample.

Standards

GB/T 4857.4: Basic tests for packaging and transportation packages - Part 4: Compression resistance and stacking test methods using a pressure testing machine;

GB/T 4857.3: Basic test for packaging and transportation packages - Part 3: Static load stacking test method;

QB/T 1048: Cardboard and carton compression testing machine;

ISO 2872: Packaging - Complete, fully loaded transport packages - Pressure test;

ISO 2874: Packaging, full transport packaging - stacking test with pressure Tester;

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
