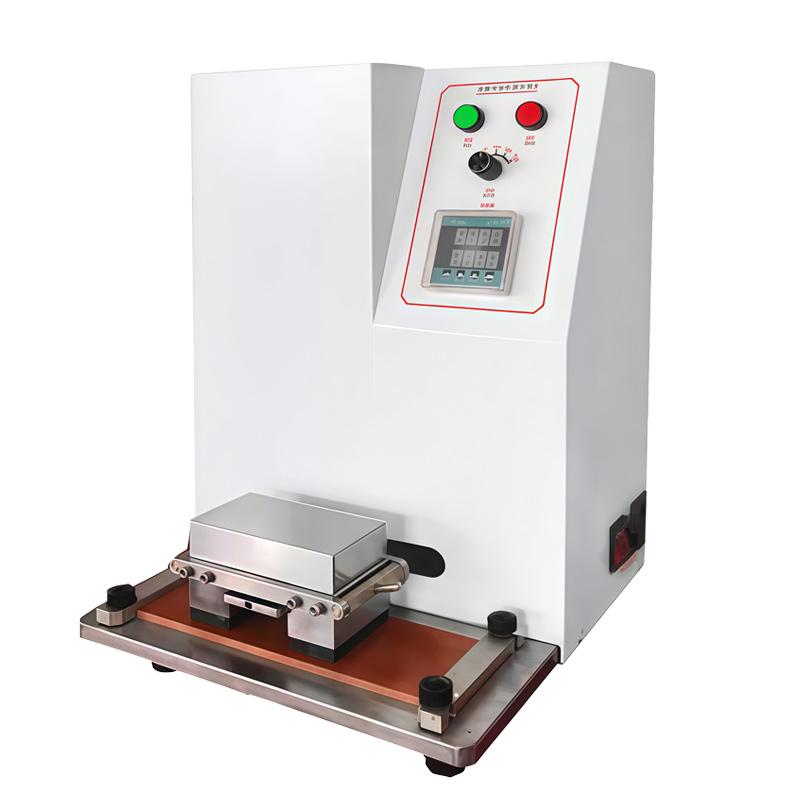

PUYUN PY-H618 inks printing wear resistance Tester, friction times 9999 LCD display
SE
PY-H618
PuYun PY-H618 INKS printing wear TesterSPEC
PuYun PY-H618 INKS printing wear TesterDetails
PuYun PY-H618 INKS printing wear TesterPacking list
- SKU
- NB033883
- Friction frequency
- 21/43/85/106Cpm four-speed adjustable
- Number of times setting
- 1~ 9999 automatic shutdowns
- friction load
- Standard GB20N, optional ASTM1810g (4Lb)
- Specimen size
- 230*50mm
- Friction body
- 2 pieces of rubber with a Hardness of HS50~53, an area of 25mm × 50mm, a thickness of 8mm, and a distance of about 45mm.
- friction stroke
- 60mm
- Friction area
- 50*100mm
- Operating Environment
- Temperature (20 ± 10 ℃), humidity < 85%
- Dimensions
- 318*276*530mm
- Weight
- 25kg
Introduction
Ink friction and decolorization test machine is used for testing the abrasion resistance of printing ink layer of printed matter, the abrasion resistance of photosensitive layer of PS plate and the abrasion resistance of surface coating of related products. Effectively analyze problems such as poor abrasion resistance of printed matter, ink layer shedding, low printing resistance of PS plate and poor coating hardness of other products. According to the friction load of the international standard, the paper, cardboard, leather and other sample prints are rubbed back and forth at a specified speed to test the ink adhesion, and the ink is judged by measuring the decrease in density (or the decrease in coating thickness) before and after friction. Abrasion resistance of a layer (or coating).
Standards
GB/T7706, ASTM D 5264, TAPPI-UM486, JIS 5071-1
Features
1. The instrument is designed in strict accordance with the standard, effectively ensuring the accuracy of the test data
2. The rubber Tester is ground with an integrated precision Grinder. The test process is stable without abnormal vibration. The built-in standard friction table ensures a uniform friction area, and the friction process is completely silent.
3. The number of frictions can be adjusted and set, which is convenient for accurate testing, and the test will stop automatically after the test is completed
4. The counter automatically records the friction times
5. The sample clamp is a simple type, which can install the sample more quickly and conveniently.
