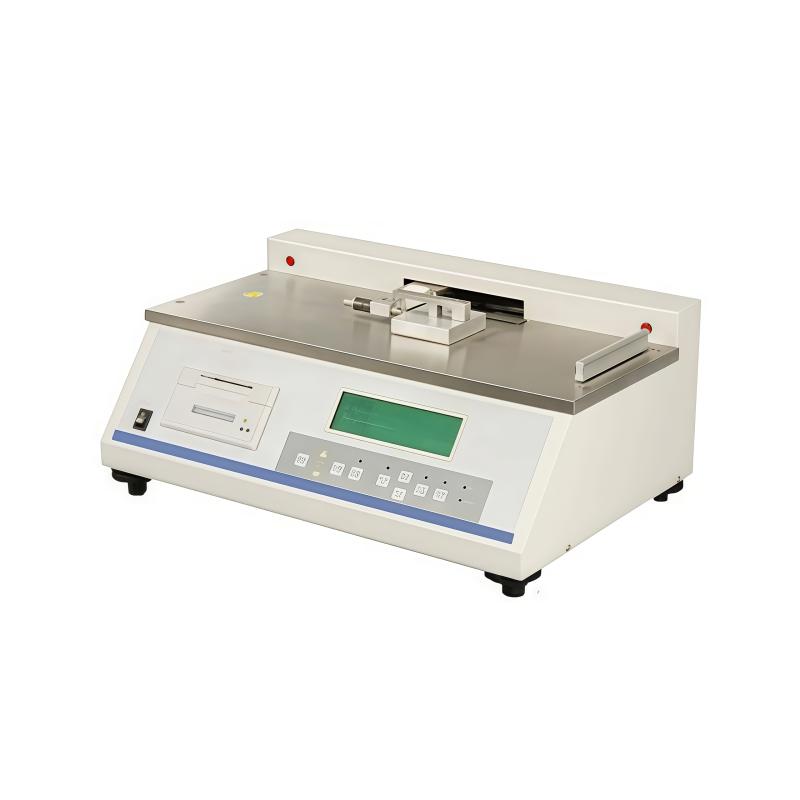

HORIZON MCX-03 Friction Coefficient Meter Plastic film rubber paper Measurement Instrument

Test accuracy less than +/- 2%, can automatically measure the dynamic and static coefficients of friction at the same time, and configure the micro printer to directly output the results.

$1933.00/set

PromotionLoading...

Coupon

Model：

MCX-03

Certificate

Horizon

Contact

Details SPEC Con CAT

Horizon MCX-03 Friction Coefficient MeterSPEC

Horizon MCX-03 Friction Coefficient MeterDetails

Horizon MCX-03 Friction Coefficient MeterPacking list

SKU: NB033900

Slider size: 63*63mm

Slider Mass: 200 +/- 2g (optional 500g)

Work surface size: 200*470mm

Total Error of Force Measurement System: Less than +/- 2%

Slider traverse speed: 100±10mm/min

Slider stroke: 0~70mm

Force range: 0~30N

Power: 220V 50Hz

Humidity: 20%RH-70%RH

Weight: 35kg

MCX-03

Friction Coefficient Meter

Test accuracy less than +/- 2%, can automatically measure the dynamic and static coefficients of friction at the same time, and configure the micro printer to directly output the results.

Applications

MCX-03 coefficient of friction Tester is suitable for measuring plastic films and sheets, rubber, paper, cardboard, woven bags, fabric styles, metal material composite belts for communication cables and optical cables, conveyor belts, wood, coatings, brake pads, wipers, The coefficient of static friction and the coefficient of dynamic friction when materials such as shoe materials and tires slide. By measuring the slipperiness of the material, it is possible to control and adjust the production quality process indicators of the material to meet the product use requirements. In addition, it can also be used to measure the slipperiness of daily chemical products such as cosmetics and eye drops.

Features

1. MCX-03 friction coefficient Tester adopts microcomputer control, liquid crystal display, and PVC operation panel.

2. It can automatically measure the dynamic and static friction coefficient of the sample at the same time.

3. High-precision ball screw drive is adopted, with stable performance, accurate testing and convenient operation.

4. Equipped with a micro-printer, it can print one set (or multiple sets) of results and average values.
