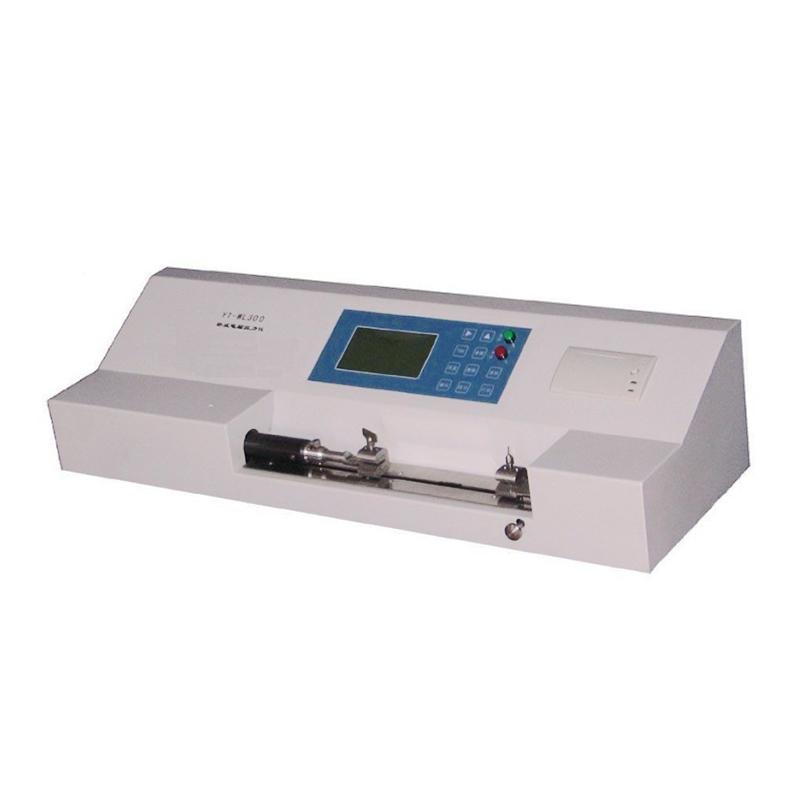

Jinan HORIZON DLS-Z paper Tensile Testing Machine (horizontal) 0~ 100N

DLS-Z

Paper Tensile Testing Machine (horizontal)

Accuracy up to 0.01N, in line with GB/T 1 2914-91 standards, suitable for paper, Plastic film, aluminum foil and other material testing. Imported motor, smooth operation, LCD real-time display data, support automatic reset, Data storage and overload protection, sample size and tensile speed adjustable

Application

The instrument adopts a unique horizontal design, which has the characteristics of compact structure, complete functions and convenient operation. The instrument is designed according to the requirements of the new national standard GB/T 12914-91 (constant speed tensile method).

Measure the tensile strength, tensile strength, elongation, crack length, tensile energy absorption, tensile index, tensile energy absorption index, especially can sense the micrometric value, and has the ability to determine the corresponding parameters of the paper (including the wet strength value). Measure the tensile strength, tensile strength, peel strength and elongation of aluminum foil and aluminum plastic tape. Measure the tensile strength, elongation, and tensile elastic modulus of plastic films. Measure the heat sealing strength, tensile strength and peel strength of food bags. Measure towel adhesion strength, edge banding strength, tensile strength, and elongation. Measure the peel strength and tensile strength of pressure-sensitive adhesive tapes. Measurement of breaking strength and elongation of synthetic fiber filaments. Measure the lightness of the zipper.

Enforce the standard

Refer to GB 13022-91, GB/T1040-92, GB2792-81, GB/T 14344-9, GB/T 2191-95, QB/T 2171-95 and other national and industry standards.

Features

1. The transmission mechanism adopts ball bearing, which is stable and accurate

2. Imported motor, low noise and precise control

3. On-screen LCD display, Chinese menu. During the test, the tensile time, load tension, etc. are displayed in real time, and the tensile curve can be displayed and printed

4. Thermal printer, low noise and clearer

5. In the measurement range of 0~30N, the accuracy can reach 0.01N, the resolution is 0.01N, and the corresponding parameters of the paper are professionally measured

6. Direct access to measurement results: After completing a set of tests, it is easy to display the measurement results directly and print statistical reports, including mean, standard deviation and coefficient of variation.

7. Variable specimen size and tensile speed: For commonly used standard size specimens, the tensile test can be carried out directly at the specified speed, and the appropriate tensile speed can also be set to change the test length and width of the specimen according to the needs of the situation.

8. High degree of automation: The instrument design selects professional devices at home and abroad, and the single-chip microcomputer carries out information sensing, data processing and action control, with the characteristics of automatic reset, data memory, overload protection and fault self-diagnosis.

9. Wide measurement range: The measurement range of the instrument can be converted according to the needs of users with different force Testers, and can be widely used in tensile test determination of various papers and materials.

10. Multi-functional, flexible configuration: The instrument is mainly used for paper measurement, and changing the configuration of the instrument can be widely applied to the measurement of other materials.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
