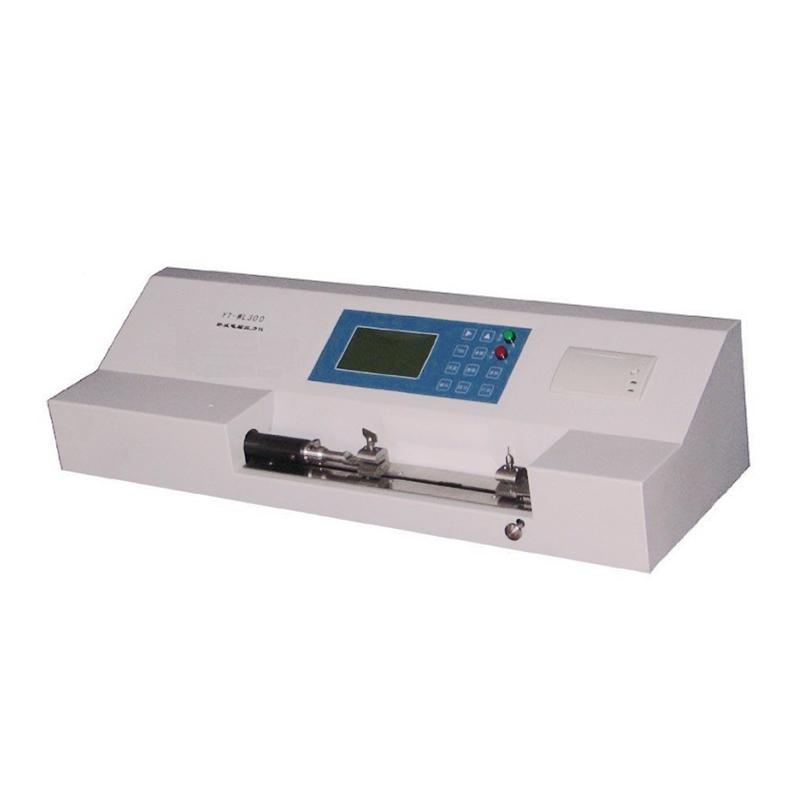

Jinan HORIZON DLS-Z paper Tensile Testing Machine (horizontal) 0~ 1000N

DLS-Z

Paper Tensile Testing Machine (horizontal)

Measurement paper Tension Resistance, Tensile Strength, Elongation, Breaking Length, Tensile Energy Absorption, Tensile Energy Absorption Index, Force Precision +/- 1%, Force Range 0~ 1000N, Tensile Speed 1~ 399mm/min

Application

The instrument adopts a unique horizontal design, which has the characteristics of compact structure, complete functions and convenient operation. The instrument is designed according to the requirements of the new national standard GB/T 12914-91 (constant speed stretching method).

Measuring paper tensile strength, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, especially capable of sensing small values, uniquely measuring the corresponding parameters of toilet paper (including wet strength value). Measure the tensile strength, tensile strength, peel strength and elongation of aluminum foil and aluminum-plastic tape. Measure the tensile strength, elongation, and tensile elastic modulus of plastic films. Measure the heat seal strength, tensile strength and peel strength of food bags. Measure the adhesive strength, edge strength, tensile strength and elongation of sanitary napkins. Measure the peel strength and tensile strength of pressure-sensitive adhesive tape. Measure the breaking strength and elongation of synthetic fiber filaments. Measure the lightness of the zipper.

Executive standard

Refer to GB 13022-91, GB/T1040-92, GB2792-81, GB/T 14344-9, GB/T 2191-95, QB/T 2171-95 and other national and industry standards.

Features

1. The transmission mechanism adopts ball bearings, and the transmission is stable and accurate

2. Imported motor, low noise and precise control

3. LCD display, Chinese menu. During the test, the stretching time, load tension, etc. are displayed in real time; and the stretching curve can be displayed and printed

4. Thermal printer, low noise, clearer

5. Within the measurement range of 0-30N, the accuracy can reach 0.01N, and the resolution is 0.01N, which is specialized in the measurement of the corresponding parameters of toilet paper

6. Obtain the measurement results directly: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including the average value, standard deviation and coefficient of variation.

7.  Variable sample size and tensile speed: for commonly used standard size samples, the tensile test can be carried out directly at the specified speed, and the appropriate tensile speed can also be set to change the test length and width of the sample according to the needs of the situation. .

8.  High degree of automation: The instrument is designed with professional devices at home and abroad, and a single-chip microcomputer is used for information sensing, data processing and action control. It has the characteristics of automatic reset, data memory, overload protection and fault self-diagnosis.

9.  Wide measurement range: The measurement range of the instrument can be changed by configuring different force measuring devices according to the needs of users, and can be widely used in the tensile test determination of various paper and materials.

10.  Multi-functional, flexible configuration: the instrument is mainly used for paper measurement, changing the configuration of the instrument can be widely used in the measurement of other materials.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
