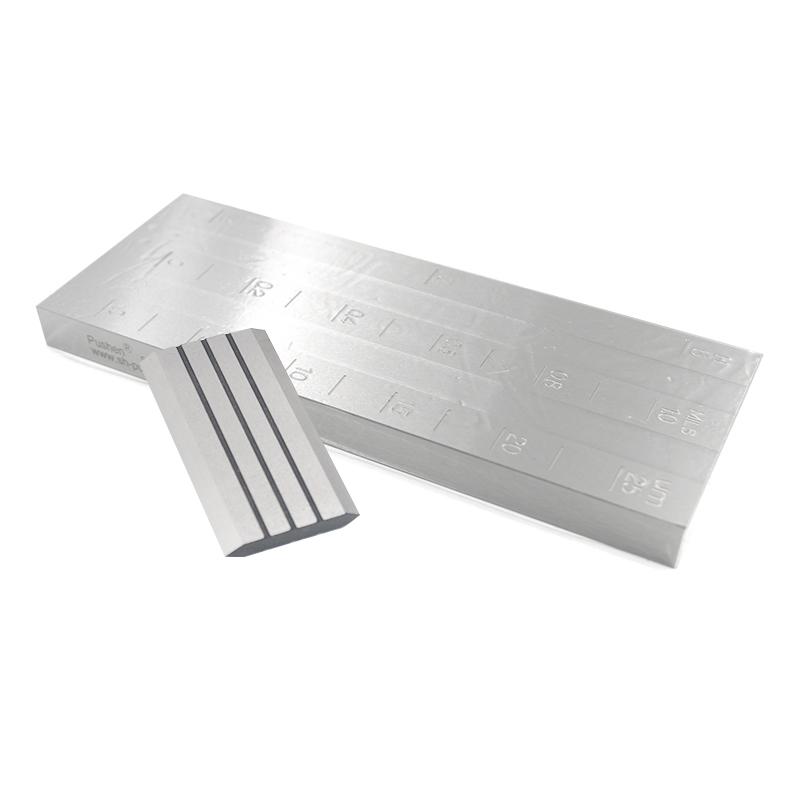

Pushen ISO-150um double-channel ISO Fineness Gauge 0-150μm

ISO-150um

double-channel Grindometer

Double-channel, range 0~150μm, scale units μm, Hegman, Mils, accuracy +/- 2µm, scraper material stainless steel (40Cr13 forging)

Introduction

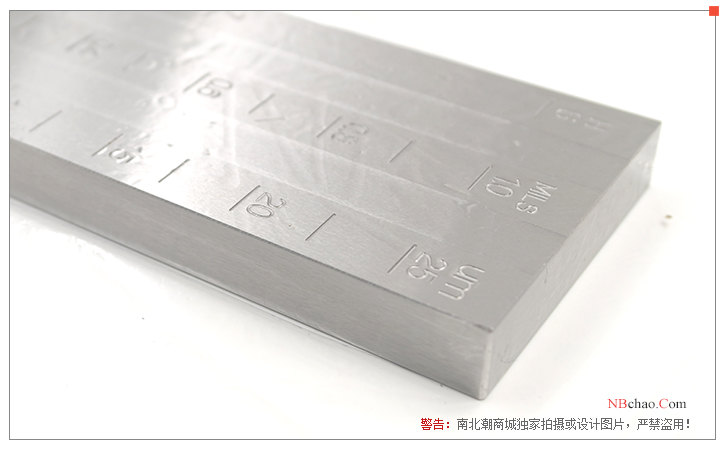

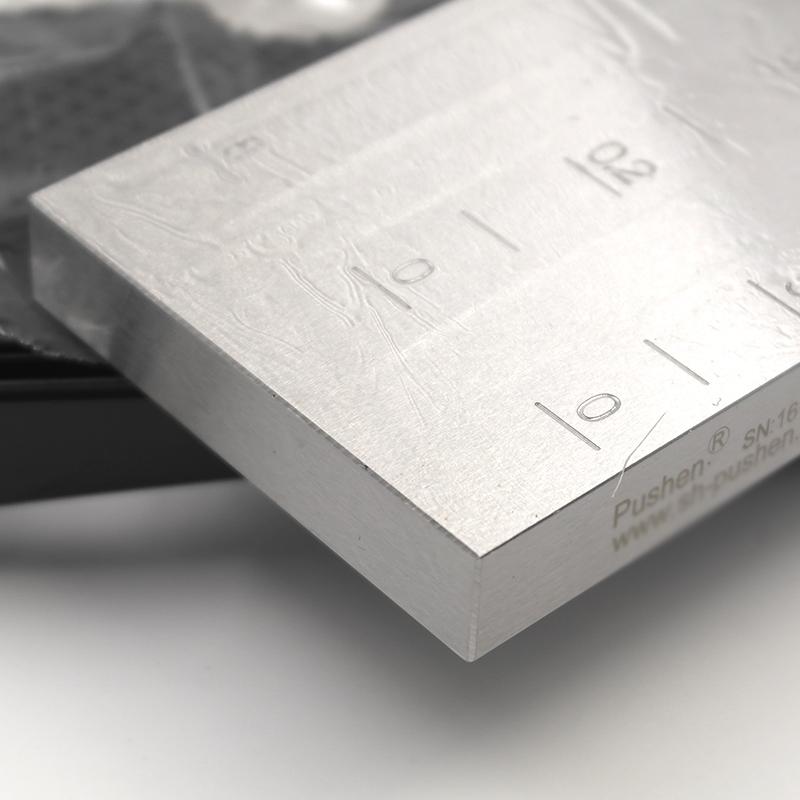

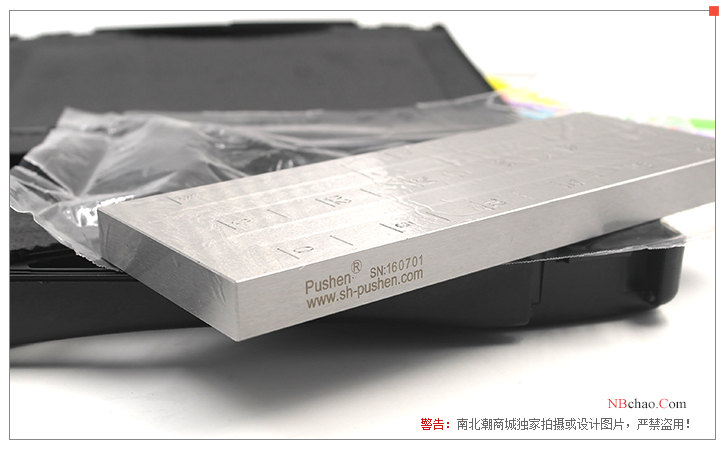

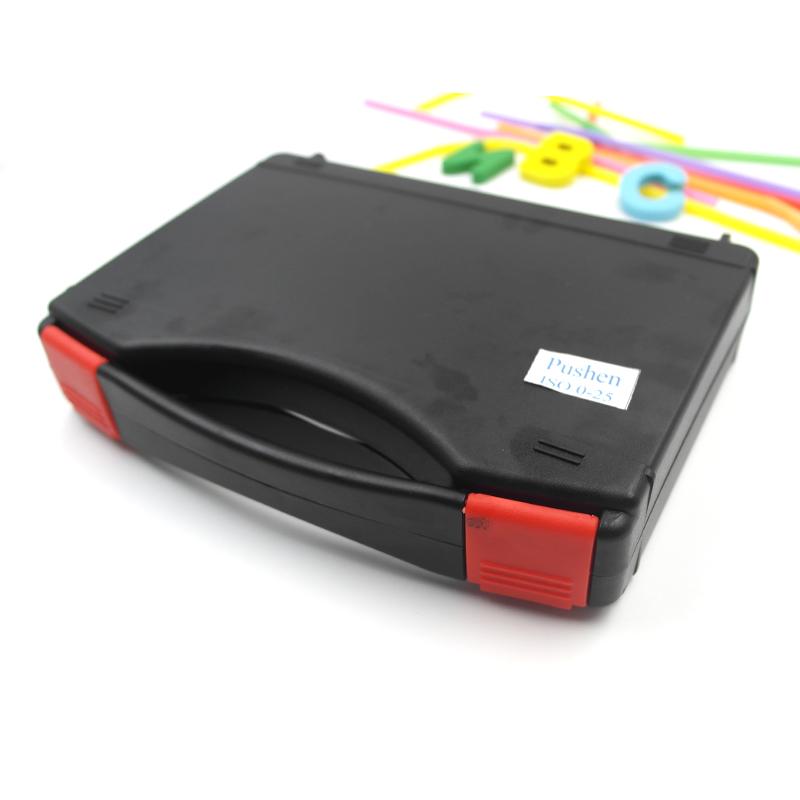

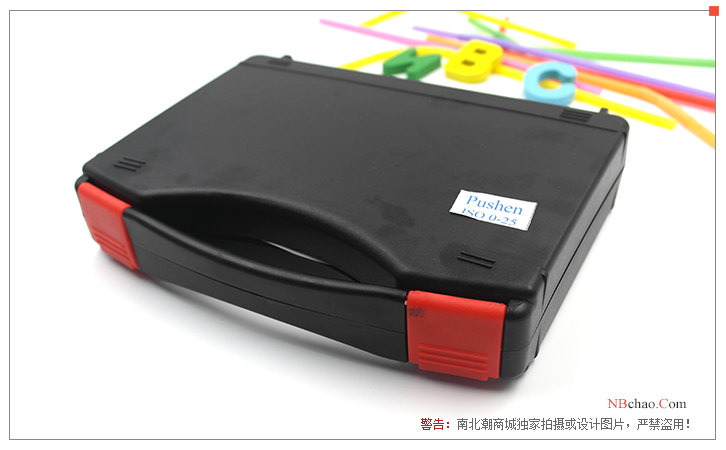

The double-channel Fineness gauge is a two-channel Fineness gauge, and the surface is represented by a scale of microns, Hegemann, and mils, and the brand name and product number of Purschen are engraved on the side of the double-channel Fineness gauge. This double-groove fineness gauge is equipped with a scraper, and the outer box of a black hard plastic tool box is used, and the inner fineness plate is coated with rust oil and wrapped in plastic film, and the packaging is delicate.The front roughness of the double-groove fineness gauge plate is 0.1 and the scraper roughness is 0.05.

Pushen double-channel Fineness gauge has 0~25 microns, 0~50 microns, 0~100 microns,0~150 microns,Made of stainless steel (40Cr13 forging parts), good abrasion resistance, pushenDouble groove fineness gaugeIt is used to detect the fineness of particles such as paints, inks, pigments, etc.

Double groove fineness gaugeThe principle

The physical property of the dispersion is called "fineness", which depends not only on the actual size of the individual particles, but also on the degree to which they are dispersed. The ink Grindometer can be used to quickly measure the fineness of the paint.

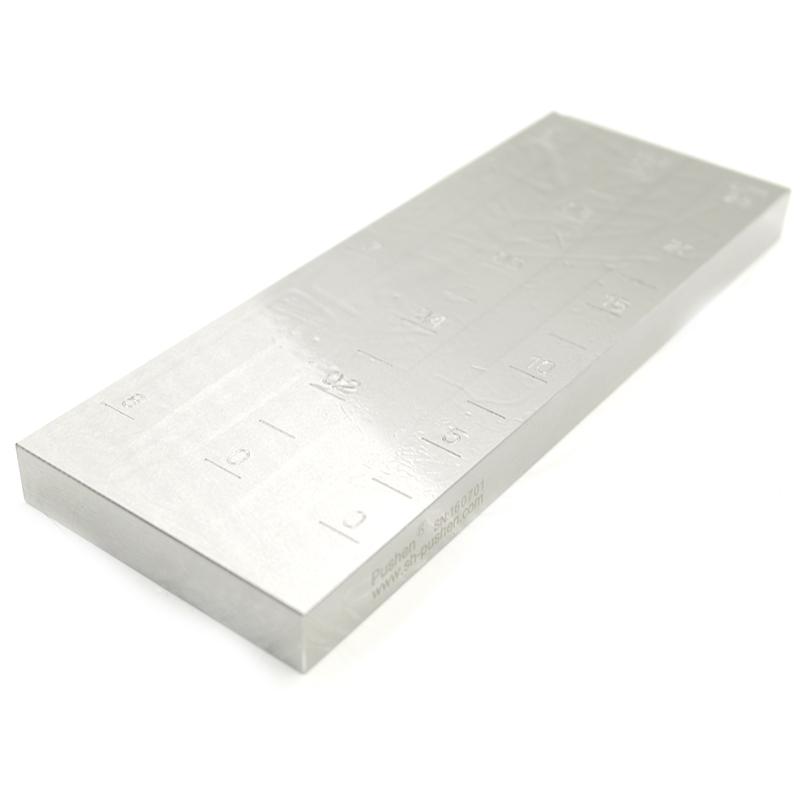

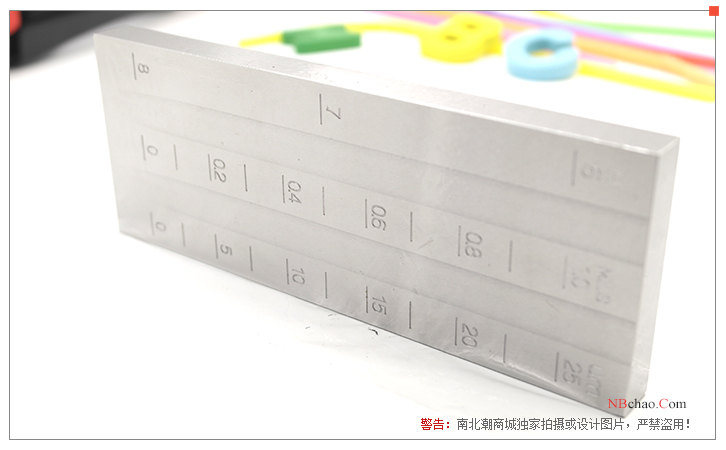

Actual picture of the product

Application

Double groove fineness gaugeIn addition to the fineness of paints, it is also possible to determine the fineness of many materials such as coatings, pigments, raw materials, plastics, printing inks, etc. In the chocolate, ceramic, paper, food and other industries, the fineness of the product can also be tested with a coating double-groove Fineness Meter, and there are many other application areas.

Operating instructionsSuggested Reading:

The operating instructions of the Pushen scraper Fineness Meter .pdf

Packing list：Drawdown blade x1, Instruction manual x1, Plastic Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
