Jinan HORIZON LT-1000 ring initial viscosity Tester, pharmacopoeia initial viscosity Tester 200N

SE
Used for the initial adhesion of various tapes, gluing agents and other products, Measurement range 0~200N, Measurement accuracy is less than +/- 1%.
$3293.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

Horizon LT-1000 Ring initial viscosity TesterSPEC

Horizon LT-1000 Ring initial viscosity TesterDetails

Horizon LT-1000 Ring initial viscosity TesterPacking list

SKU
NB033947
Measurement range
0~200N
Measurement Accuracy
Less than +/- 1% measurement error
Test results
LCD display (now upgraded to touch screen display) and can store 20 sets of test results, and display MAX Maximum, MIN Minimum, average value, and print out the experimental report (report includes: test time, results MAX Maximum, MIN Minimum, average)
Measurement speed
0~500mm/min
Resolution
0.01N
Specimen size
180*25mm
Test board size
30*25*3mm
Power Supply
220V,50HZ；
LT-1000
Ring initial viscosity Tester
Used for the initial adhesion of various tapes, gluing agents and other products, Measurement range 0~200N, Measurement accuracy is less than +/- 1%.

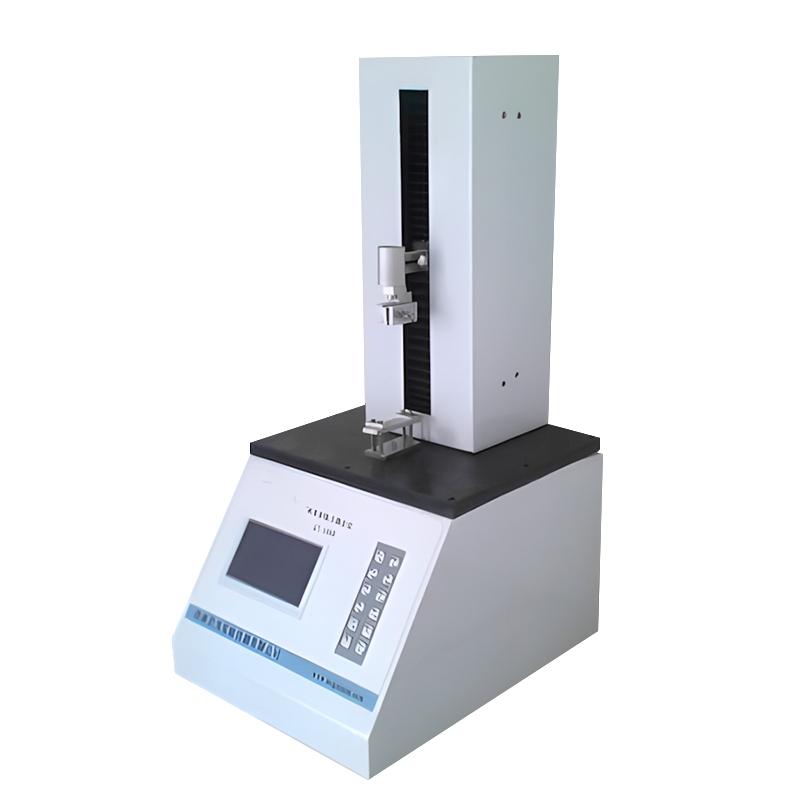

Jinan HORIZON LT-1000 ring initial viscosity Tester, pharmacopoeia initial viscosity Tester 200N Picture

scope of use

 LT-1000 ring-shaped initial adhesion Tester is compact and exquisite in structure, adopts imported sensors and motors, and is mainly used for the initial adhesion of various tapes, adhesives and other products. The products meet FINAT (FINAT Test Method No. 9: Loop tack measurement), ASTM and other international standards, and are suitable for research institutions, adhesive import and export enterprises, inspection and quarantine institutions, etc.

Test Principle

LT-1000 ring initial tack Tester is to make the ring sample and the standard float glass test plate fully contact at a constant speed of 300mm/min, then the instrument automatically reverses the ring sample and the test plate at a speed of 300mm/min The maximum force generated by complete separation at a constant speed, this maximum force value is the annular initial adhesion force of the tested sample.

technical features

1. Compact, light and humanized structure design

2. Display maximum value, minimum value and average value

3. Large LCD display

4. Equipped with a micro printer

5. Humanized fixture, can change the adhesion base material arbitrarily


FAQ
QI want to test the initial adhesion of adhesive tape. What instrument should I use?
A HORIZON LT-1000 Ring Initial Adhesion Tester is used to measure the initial adhesion of tapes, gluing agents and other products. It adopts the method of contact separation between the ring sample and the Glass plate, conforms to FINAT and ASTM international standards, and can accurately display the maximum, minimum and average value. It is suitable for research institutions and Quality control units.
QOur laboratory needs to test the initial adhesion performance of gluing agent. Which instrument is suitable?
A LT-1000 annular initial viscosity tester is equipped with imported Sensors and motors, Test speed 0~ 500mm/min adjustable, high accuracy (error less than +/- 1%), can automatically store 20 sets of data and print reports, suitable for accurate evaluation of gluing agent performance.
QCan this instrument be tested on different substrates?
A Yes! The LT-1000 is equipped with a humanized fixture, which can arbitrarily change the adhesive substrate, which is convenient for you to simulate various practical application scenarios. With the touch screen display and micro-printer, the operation is simple and the data output is fast, which can meet the diverse testing needs.
QWhat is the measurement speed of the HORIZON LT-1000 circular viscosimeter?
A Hello, it is 0~ 500mm/min.
