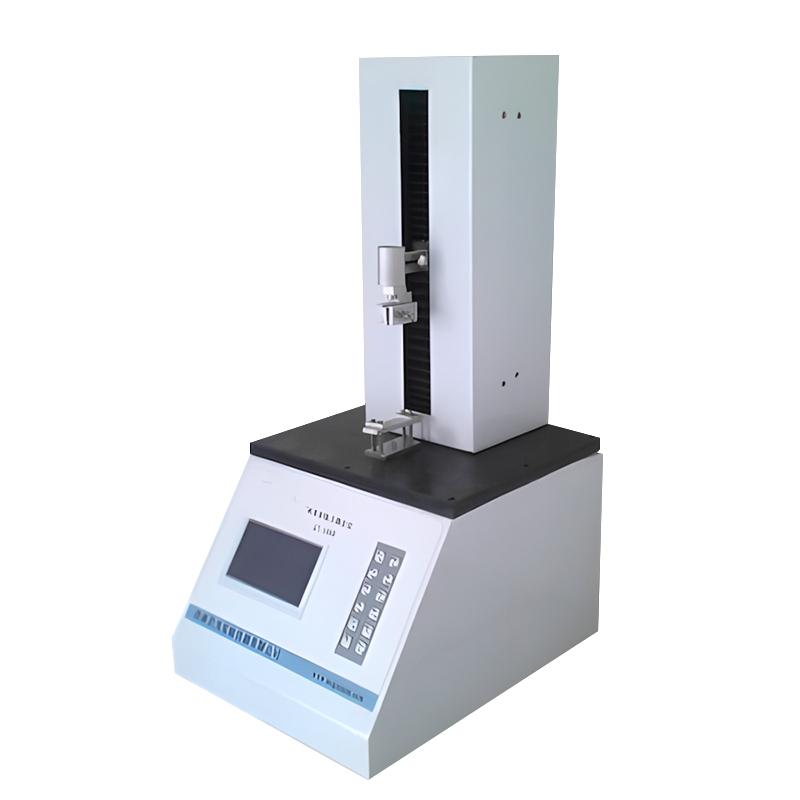

Jinan HORIZON LT-1000 Ring Initial Adhesion Tester, Patch Initial Adhesion Tester 300N

LT-1000

Ring initial viscosity Tester

Measurement range 0~300N, Measurement accuracy is less than +/- 1%, used for the initial adhesion of various tapes, gluing agents and other products.

Scope of use

 The LT-1000 ring initial adhesion Tester has a compact and exquisite structure and adopts imported sensors and motors. It is mainly used for the initial adhesion of various tapes, adhesives and other products. The products meet FINAT (FINAT Test Method No. 9: Loop tack measurement), ASTM and other international standards, and are suitable for research institutions, adhesive import and export companies, inspection and quarantine agencies, etc.

Test principle

The LT-1000 ring initial tack Tester is to fully contact the ring sample with the standard float glass test plate at a constant speed of 300mm/min, and then the instrument automatically reverses the direction of the ring sample and the test plate at 300mm/min. The maximum force generated by complete separation at a constant speed is the annular initial tack of the tested sample.

Technical characteristics

1. Compact, lightweight and user-friendly structural design

2. Display the maximum value, minimum value and average value

3. Large LCD display

4. Equipped with micro printer

5. Humanized clamp, the adhesive base material can be changed at will

Packing list：Host X1, micro printer X1, sampling knife X1, sample ring X10

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
