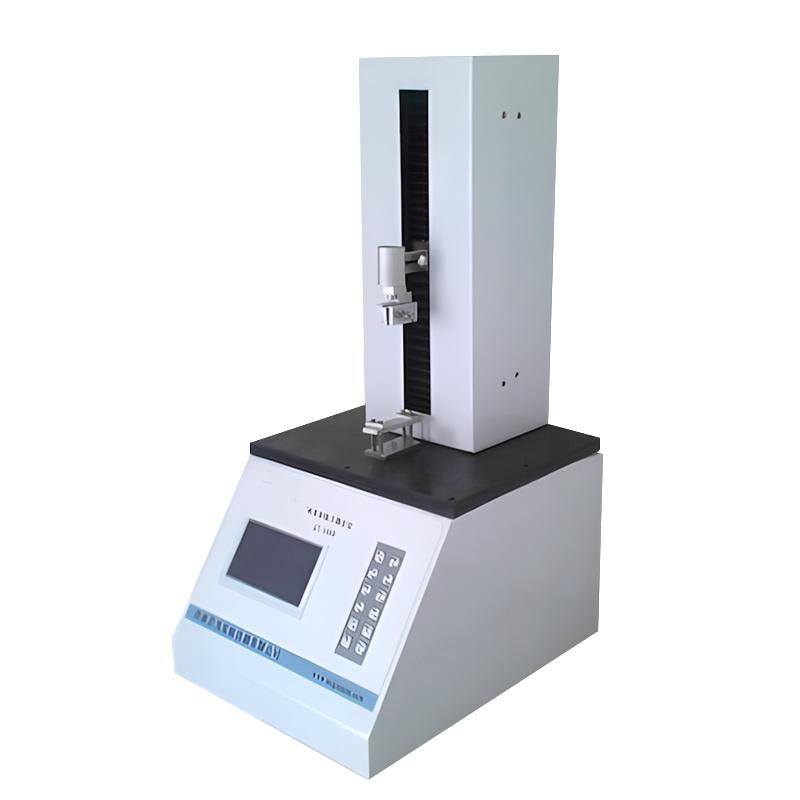

Jinan HORIZON LT-1000 ring initial viscosity Tester Pressure sensitive adhesive tack Tester 500N

LT-1000

Ring initial viscosity Tester

Measurement range 0~500N, Measurement accuracy less than +/- 1%, Measurement speed 0~500mm/min, resolution 0.01N

scope of use

 LT-1000 ring-shaped initial adhesion Tester is compact and exquisite in structure, adopts imported sensors and motors, and is mainly used for the initial adhesion of various tapes, adhesives and other products. The products meet FINAT (FINAT Test Method No. 9: Loop tack measurement), ASTM and other international standards, and are suitable for research institutions, adhesive import and export enterprises, inspection and quarantine institutions, etc.

Test Principle

LT-1000 ring initial tack Tester is to make the ring sample and the standard float glass test plate fully contact at a constant speed of 300mm/min, then the instrument automatically reverses the ring sample and the test plate at a speed of 300mm/min The maximum force generated by complete separation at a constant speed, this maximum force value is the annular initial adhesion force of the tested sample.

technical features

1. Compact, light and humanized structure design

2. Display maximum value, minimum value and average value

3. Large LCD display

4. Equipped with a micro printer

5. Humanized fixture, can change the adhesion base material arbitrarily

Packing list：Host X1, micro printer X1, sampling knife X1, sample ring X10

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
