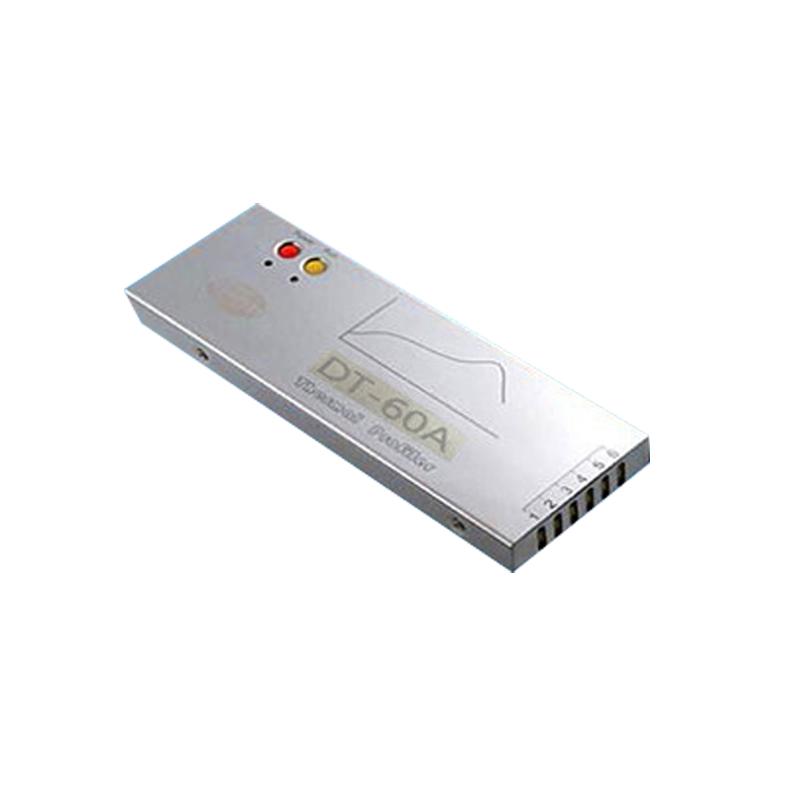

DAQTECH DT-60A Furnace temperature tracker 6 channels -100-500 ℃
DT-60A
DAQTECH DT-60A Furnace temperature trackerSPEC
DAQTECH DT-60A Furnace temperature trackerDetails
DAQTECH DT-60A Furnace temperature trackerPacking list
- SKU
- NB033950
- test channel
- 6CH
- Thermocouple
- K type
- Temperature Measurement Range
- -100---500℃
- Temperature measurement Accuracy
- ±1℃
- resolution
- 0.1 ℃ (full scale)
- record data
- 120,000 points/channel
- Sampling interval
- 0.05------600 seconds, software settings
- Total work rate
- ≤100mW
- Operating Voltage
- 3.6V (built-in rechargeable battery)
- Dimensions
- 208(L)×75(W)×20(H)mm
- Protection box size
- 252(L)×88(W)×30(H)mm
- wingspan width
- 98----218Mm (std.)
- Communication port
- RS-232 or USB (optional)
- analysis software
- e-DataPro Chinese and English three languages
Description
Accurate furnace temperature curve test, professional analysis software, for wave soldering and reflow soldering furnace temperature curve test analysis to provide accurate process index judgment and optimization. This temperature Tester is widely used in the electronics industry for SMT placement and plug-in PCB soldering processes, and is also suitable for temperature mapping and analysis in other industries (e.g., food, environmental, painting, ovens, tunnel furnaces...... ）
Standard configuration
1. A temperature Tester host 2, an instrument protection box 3, a thermocouple 4, a software installation disk 5, and a data output line
6. High temperature adhesive tape 7, charger 8, instrument case 9, scissors 10, tweezers
11. Heat-insulating gloves 12, cross screwing knife 13, high-temperature tin wire 14, user manual 15, product certificate
Analysis Settings (Data Analysis Report)
1. Set the temperature and transportation speed in the temperature zone of the reflow oven and the wave furnace
2. Location name of temperature sampling point and PCB schematic diagram
3. The time between two temperature values
4. The slope between two temperature values
5. The slope between two time points
6. The time when the specified temperature is exceeded
7. Maximum temperature and temperature at any point in time
8. Horizontal temperature line, vertical time line and time between two hours
9. Grid editing, refinement and curve zoom display
10. Simulation curve function, process optimization, test date and time
11. Enter the company name, product name and remarks information
12. Select the printing direction (horizontal printing and vertical printing)
13. The temperature data report can be exported to Excel for editing
14. Insert the picture function to make the location of the temperature test point clear at a glance
15. Call multiple sets of temperature curves for comparison
16. There are two Operating Modes: real-time monitoring and instrument recording
17. Manual clearing and software clearing of instrument memory data
18. There are three starting modes: manual, specified time and specified temperature
What's new in software data analysis
1. Increase process index (PWI) analysis
2. Increase solder paste information management
3. Increase equipment information management
4. Increase product information management
5. The horizontal temperature line and the time point line can be moved and edited
6. The instrument will not lose data when the instrument is powered off
7. The Tester can continuously record 256 sets of temperature data, which can be downloaded in groups at one time, eliminating the need to run back and forth between the workshop and the office, wasting your precious time
DT series temperature Tester is suitable for: SMT reflow soldering, wave soldering, automotive coating, powder coating, non-stick coating, mobile phone screen, food processing, chemical industry, glue curing, metal electroplating baking paint and other baking processes of the furnace temperature temperature tracker, is a professional oven/tunnel furnace/oven temperature Tester in CHINA
