DAQTECH Q6 Furnace temperature tracker 6 channels -40~500 ℃

DAQTECH Q6 Furnace temperature tracker can be continuously tested, the data is downloaded once, and with various indicator lights to clarify the instrument status, Q6 Furnace temperature tracker channel number 6 channels, acquisition rate 1 second to 33 minutes (optional), Measurement accuracy +/- 1.0 ℃, resolution 0.1 ℃, maximum internal temperature 80.0 ℃.
Model：
Certificate
Contact
Details SPEC

DAQTECH Q6 Furnace temperature trackerSPEC

DAQTECH Q6 Furnace temperature trackerDetails

DAQTECH Q6 Furnace temperature trackerPacking list

SKU
NB033952
number of channels
6 channel
acquisition rate
1 second to 33 minutes (optional)
Measurement Accuracy
±1.0 ℃
Resolution
0.1  ℃
Maximum internal temperature
80.0 ℃
startup mode
button start, delayed start, temperature start
Measurement range
-40~500℃
Thermometer power consumption
≤35mA
Battery
Li-ion 950mA
Thermometer size
138mm*62mm*20mm
Operating Voltage
DC3.7V~DC4.2V
continuous testing
Maximum storage 4 times at a time
Memory Capacity
230,400 data points
Sensor
Thermocouple K
Painting insulation box
250 degrees 60 minutes/300 degrees 40 minutes
Q6
Furnace temperature tracker

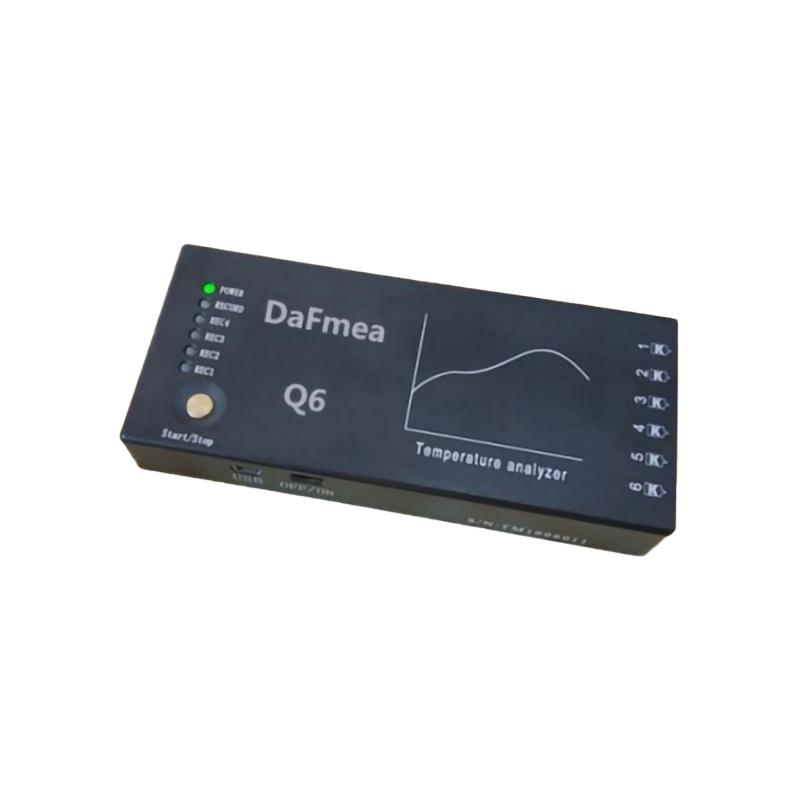

DAQTECH Q6 Furnace temperature tracker 6 channels -40~500 ℃ Picture

Features

1. It can be tested continuously, and the data can be downloaded 1 time

2. USB port, suitable for all computers

3. When the data is downloaded, the instrument charges itself

4. Standard Voltage calibration, reliable accuracy

5. The instrument is powered off, and the data will not be lost

6. Various indicator lights to clarify the status of the instrument

7. One-click operation, easy to learn and use

Analysis software

1. The analysis software has the same interface as the data download

2. Calculate the hold time above any temperature point

3. Display the curve of the test process of each channel

4. Analyze the parameters according to the process requirements

5. The analysis software can insert field test photos

6. Icon-based operation interface, intuitive image

(The above is a partial introduction to the functions)
