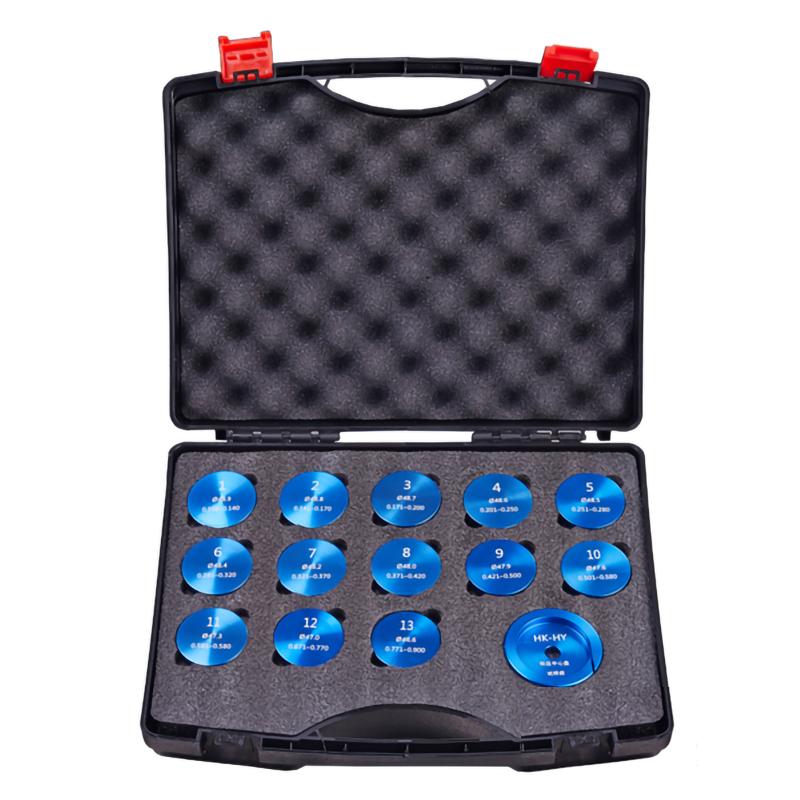

YINUO YN-RCT02 Base Paper Test Center Tray RCT Test Tray, Ring Pressure Thirteen Molds
SE
YN-RCT02
YiNuo YN-RCT02 Base paper test center plateSPEC
YiNuo YN-RCT02 Base paper test center plateDetails
YiNuo YN-RCT02 Base paper test center platePacking list
- SKU
- NB033993
- clamping length
- 152*12.7mm
- Film thickness range
- (0.1~1.0)mm
- Film thickness deviation
- ≤0.01mm
- Number of center disks
- One master plate and thirteen sub plates.
use
The special center test plate for paper ring pressure Tester is also called the special center plate for ring pressure. It is the sample transfer plate for paper test ring pressure strength. The disc size is completed by 13 loading sizes from 0.1 to 1mm. It is composed of 13 loading sub-discs and 1 master disc. The loading sample is a 152*12.7mm size ring pressure sample for testing. It is a special choice for papermaking and scientific research institutions. Detection accessories.
Executive standard
GB/T 2679.8, GB/T 6546, GB/T 6548, GB/T 2679.6
Specifications
1. Equipped with ring pressure center disc and ring pressure sampler for ring pressure test (RCT)
2. Equipped with edge pressure sampler/guide block for corrugated cardboard edge pressure test (ECT)
3. Equipped with a peel test stand for corrugated cardboard adhesive peel test (PAT)
4. Equipped with flat pressure sampler for corrugated paper flat pressure test (FCT)
5. Flat crushing strength (CCT) and (CMT) after corrugation in the base paper laboratory
Size Chart:
0.150～0.170
0.171～0.200
0.201～0.230
0.231～0.280
0.281～0.320
0.321～0.370
0.371～0.420
0.421～0.490
0.491～0.570
0.571～0.670
0.671～0.770
0.771～0.900
0.901～1.000
Application
Determination of ring pressure of paper and bobbin paper
