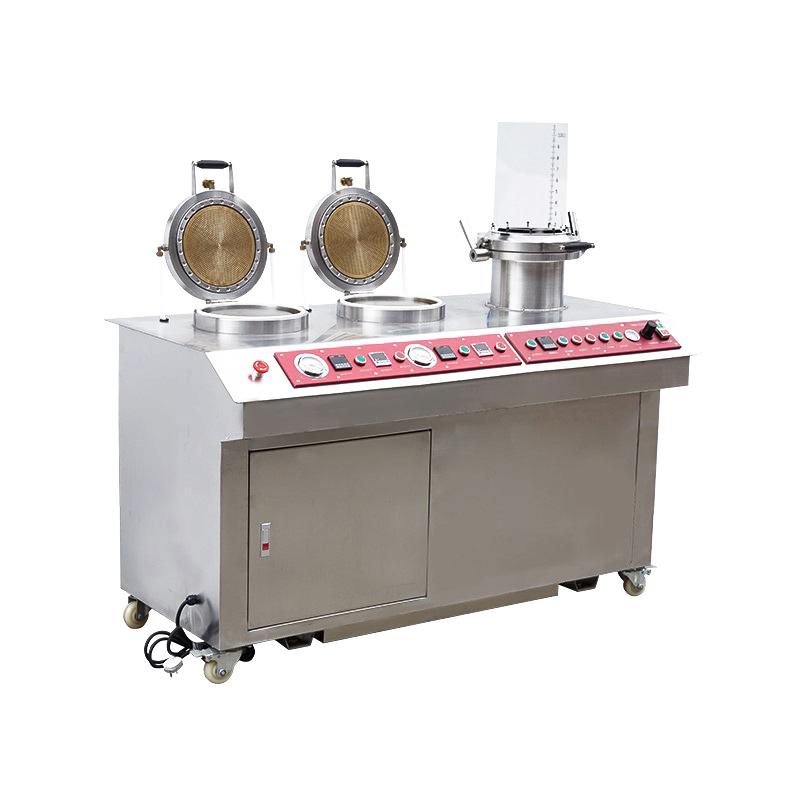

YINUO YN-CP01 Sheet Former, diameter 200 drying non-drying optional
SEYINUO YN-CP01 sheet former is an experimental equipment that uses the fast Kaiser method to copy and form pulp and carry out rapid vacuum drying. The YN-CP01 sheet former is used in the application range of 0~1000CSF, the pulp pool capacity is 12000ml, and the sample diameter is circular, Φ≤ 200mm.
$12134.00/set
PromotionLoading...
Coupon
Model：
YN-CP01
YiNuo YN-CP01 Sheet FormerSPEC
YiNuo YN-CP01 Sheet FormerDetails
YiNuo YN-CP01 Sheet FormerPacking list
- SKU
- NB034029
- Application
- 0~1000CSF
- Pulp tank Capacity
- 12000ml
- Specimen diameter
- Round, Φ≤ 200mm, square and other sizes need to be customized.
- Forming part material
- 304 #stainless steel
- Molding gram Weight range
- The lowest molding gram Weight is 5g, and the highest Film thickness can realize a sheet material of about 20mm. The specific gram Weight and Film thickness should be determined according to the type of fiber.
- uniformity
- The paper uniformity can reach about 96, depending on different fiber types and molding requirements
- mesh selection
- 80/100/120/200/300/400/500 comes standard with one of the meshes, according to different fiber characteristics
- Outer diameter of forming mesh
- F257mm
- Mesh clamp material
- 304 #stainless steel
- Film thickness
- 12mm
- Outer diameter of drain net
- F220mm
- Film thickness of drain net
- 15mm
- Drainage net material
- Pure bronze
- discharge efficiency
- 0.7/4h/cm2
- drain tank
- 20Cir
- drain aperture
- F3mm
- Pulp advection
- 18mmH
- Vacuum method
- Fully enclosed replica semi-enclosed water-sealed Vacuumpump assembly, which strongly improves the vacuum strength
- Vacuum channel
- 5-3 high-strength vacuum channel to achieve multi-channel high-flow vacuum dehydrate
- vacuum tube
- The vacuum tube adopts Teflon pipe with high temperature resistance, high Voltage resistance and high physical strength
- Vacuum pressure plate
- Made of pure bronze
- Exhaust aperture
- F3mm
- Heating method
- Disc heating, to ensure the lateral Temperature Uniformity to achieve the purpose of uniform heating.
- Drying temperature
- Room temperature~ 120 ℃ stepless adjustable
- temperature Control system
- Imported Omron temperature Control system
- Drying time
- Adjustable from 1 to 99.99min
- Drying station
- 2 drying stations
- Drying efficiency
- 0.7/4h/cm2
- Fluid motion tank
- 20Cir
- Vacuum sealing film cover
- Pure silicone film cover
- Sealing ring
- Pure silicon sealing ring
- Drying method
- Secondary drying method
- Drying Film thickness
- Film thickness 15mm, Film thickness 25mm
- Sealing ring
- Pure silicone sealing ring, W9mm, H4mm
- Handle lever
- 120mm
- Handle diameter
- F3mm
- Shaft size
- Φ40mm*40mm
- buckle position
- Using a circular V-shaped eccentric circular booster
- afterburner
- Use 304 stainless steel material
- Tap water cycle
- One-button tap water circulation system
- white water cycle
- Equipped with white water circulation system
- Add water manually
- Equipped with manual water filling window 10 * 16mm
- Drainage system
- One-button drainage system with intelligent angle valve drain function
- White pool structure
- Integrated white water circulation, connected to the vacuum tank, connected to the water body, all 304 stainless steel.
- Heating power
- 1.6Kw × 2 groups, Vacuumpump motor power
- Dimensions
- 1500*800*1450mm
- Power
- 220v，50Hz
YN-CP01
Sheet Former
use
The sheet forming machine is a kind of experimental equipment that uses the rapid Kaiser method to form the pulp and perform rapid vacuum drying. In the laboratory, after various fibers such as plants and minerals are cooked, beaten, and sieved, the pulp is decomposed according to the standard, and then put into the sheet-making barrel, stirred and quickly filtered to form, and then squeezed and vacuumed on the machine. Dried to form a circular paper sheet with a diameter of 200 mm, which can be used as a paper sample for further physical testing.
Standards
GB/T24324-2009, QB/T3703-1999, SO 5269/2 & ISO 5269/3, 5269/2, NBR 14380/99, TAPPI T-205, DIN 54358, ZM V/8/76
