Defelsko PosiTector BDYSTD Standard host, new, probe available separately
SE
BDYSTD
Defelsko BDYSTD Coating Thickness GaugeSPEC
Defelsko BDYSTD Coating Thickness GaugeDetails
Defelsko BDYSTD Coating Thickness GaugePacking list
- SKU
- NB034033
- Measurement range
- Determined by the probe
- margin of error
- Depending on the probe
- Resolution
- 0.1μm
- probe
- Probe decision
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- Yes.
- Power Supply
- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808,ISO 19840,ASTM B244/B499/D1186/D1400/D7091/E376/G12,BS3900-C5
- Calibrated Certificate
- Yes.
- Language
- Chinese, English, French, Japanese, German, Spanish, Italian, Dutch, Korean, Portuguese, Norwegian, Russian, Czech, Polish, Turkish
- Display screen
- 2.8-Inch Impact Resistant Color Touch Screen
- Interface
- USB
- supporting software
- Yes.
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 1000 Measured values
- Standards
- SSPC-PA2,US Navy NAVSEA PPI 63101-000,US Navy NAVSEA 009-32,AS 2331.1.4,AS3894.3-B

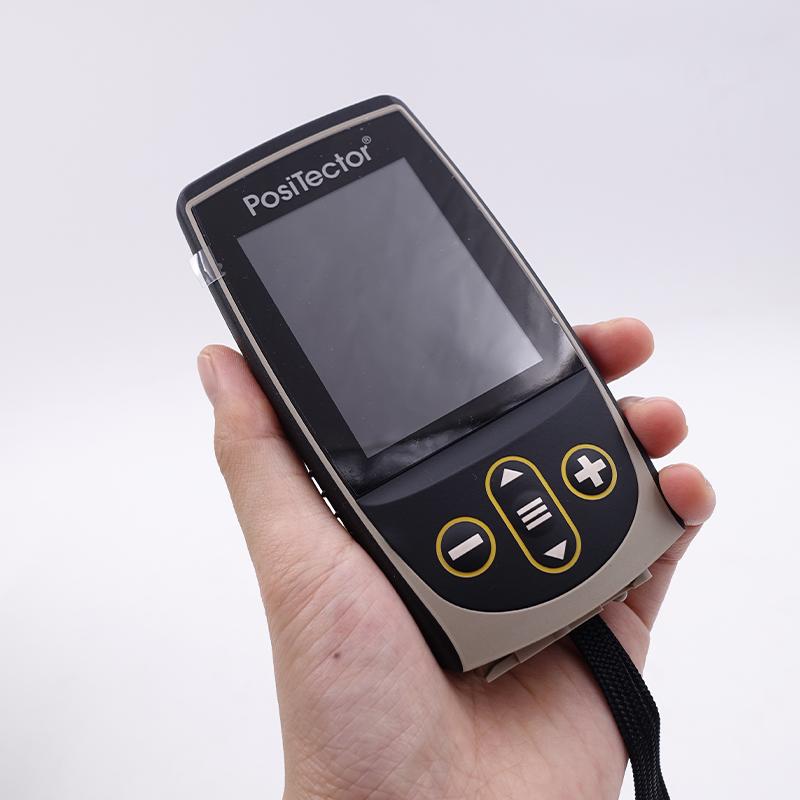

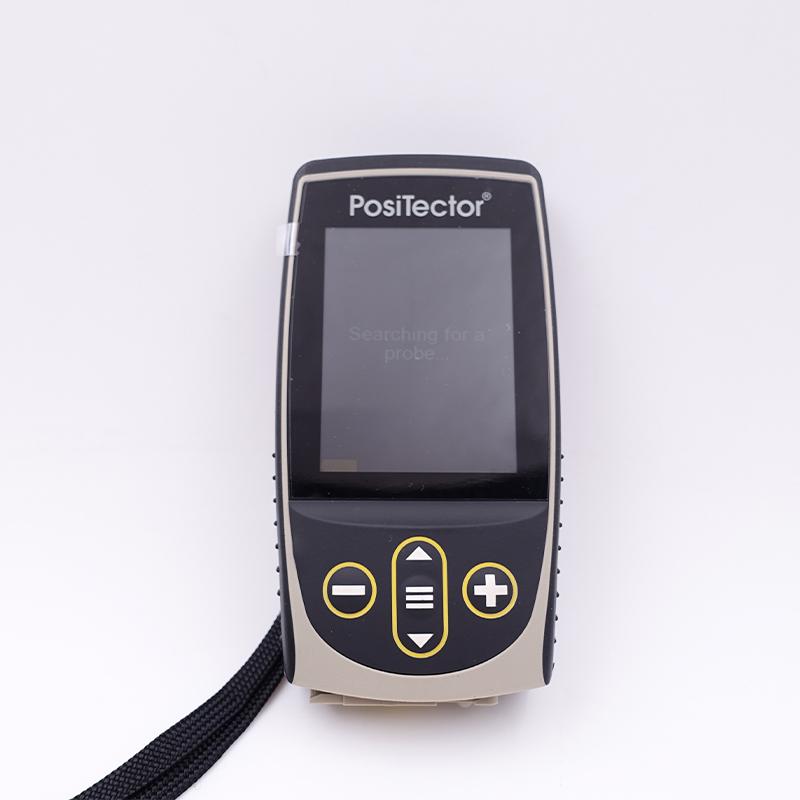

Introduction
The Defelsko PosiTector mainframe is compatible with any PosiTector probe, including 6000 Coating Thickness Measurement, RTR Roughness, 200 Ultrasonic Coating Thickness Measurement, DPM Dew Point Testing, SPG Surface Profile, IRT Infrared Temperature Measurement, SST Soluble Salt Testing, and more. It is a multi-functional host.
The new standard unit has 1000 readings and can be used to view or download measurements.
New console features
 | New ergonomic design, durable rubber grip, all-day comfortable check |  | Weatherproof, dustproof and waterproof - the IP65-rated casing and shock-absorbing rubber holster are the perfect choice for the harshest environmental conditions, including heavy rain |
 | A larger 2.8-inch impact-resistant color touchscreen with a redesigned keypad for quick menu navigation |  | Up to 30% longer battery life |
 | Touchscreen keypad to quickly rename batches, add notes, and more (Premium only) |  | The stylized, updated user interface retains the same familiar menu structure, making it easy to navigate menus with or without gloves |
 | Function Help: Menu items can be interpreted at the push of a button |  | Universal 1/4"-20 mounting points for securing gauges to optional belt clips and other accessories |
 | The instant-on feature powers the gage in less than a second without the use of a power source |  | PosiTector 6000 SSPC-PA2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting maximum/minimum specifications, displaying necessary readings, and automatically calculating pass/fail statistics for results. |
The host is fully functional
● Simple
New Larger 2.8-inch impact-resistant color touchscreen with a redesigned keypad for quick menu navigation
The new On-gage help explains menu items at the touch of a button
Flashing display - suitable for noisy environments
The reset function enables an immediate factory reset
● powerful
The statistical mode continuously displays/updates the mean, standard deviation, min/max thickness and number of readings while measuring
New Screen Capture – Save 100 screen images for saving and viewing

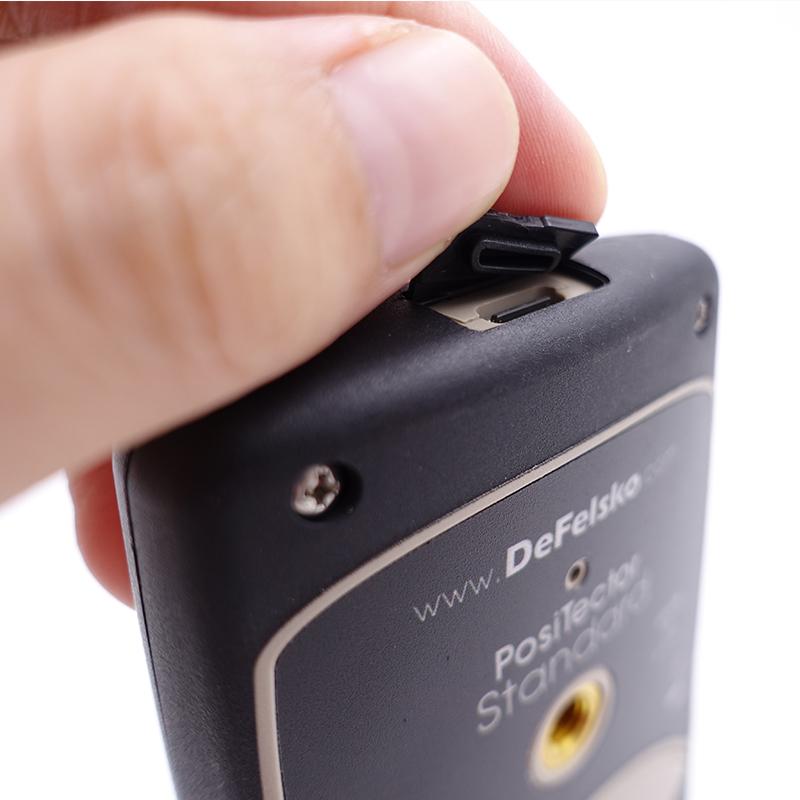

Sealed USB port for quick and simple connection to PC and continuous power. USB cable included
Each stored measurement is stamped with a date and time stamp
● durable
New weatherproof, dustproof and waterproof - IP65 rated enclosure
New ergonomic design, durable rubber grip
Shock-absorbing protective rubber holster for increased impact resistance
Two-year warranty on gage body and probe
● accurate
Includes calibration certificate traceable to NIST or PTB (long form)
Complies with national and international standards, including ISO and ASTM
● multifunction
You can choose the display language
New auto-rotating display with flip lock

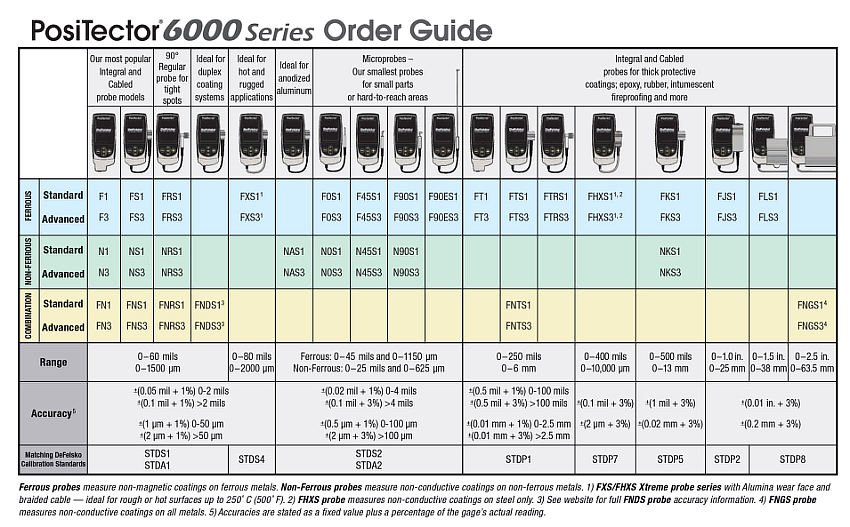

Probe Selection Guide

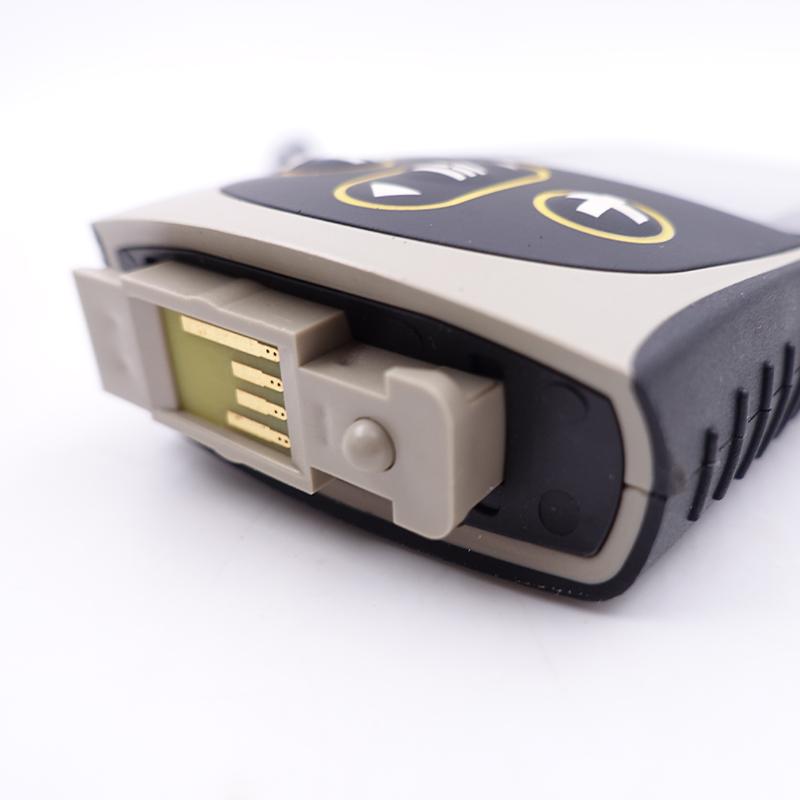

Compatible with all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes, the PosiTector mainframe easily converts from a coating Thickness Gauge to a dew point gage, surface profile meter, soluble salt Tester, Hardness Tester, or ultrasonic wall thickness gage.
F – Ferrous Metals (Steel & Cast Iron)
N——For non-ferrous metals (aluminum, copper, titanium, etc.)
FN——Suitable for all metal substrates – the substrate is automatically identified and measured
| Probe model | substrate | Probe style | Range |
| F | F | integral | 0~1500μm |
| FS | F | regular cabled | 0~1500μm |
| FXS Xtreme"i | F | regular cabled | 0~2000μm |
| FRS | F | 90° regular cabled | 0~1500μm |
| F0S | F | 0° microprobe | 0~1150μm |
| F45S | F | 45° microprobe | 0~1150μm |
| F90S | F | 90° microprobe | 0~1150μm |
| F90ES | F | 90° extended microprobe | 0~1150μm |
| FT | F | integral | 0~6mm |
| FTS | F | high-range cabled | 0~6mm |
| FTRS | F | 90° high-range cabled | 0~6mm |
| FHXS Xtreme" | F | high-range cabled | 0~10000μm |
| FKS | F | high-range cabled | 0~13mm |
| FJS | F | high-range cabled | 0~24mm |
| FLS | F | high-range cabled | 0~38mm |
| N | N | integral | 0~1500μm |
| NS | N | regular cabled | 0~1500μm |
| NRS | N | 90* regular cabled | 0~1500μm |
| NAS | N | regular cabled | 0~625μm |
| N0S | N | 0° microprobe | 0~625μm |
| N45S | N | 45° microprobe | 0~625μm |
| N90S | N | 90° microprobe | 0~625μm |
| NKS | N | high-range cabled | 0~13mm |
| FN | FN | integral | 0~1500μm |
| FNS | FN | regular cabled | 0~1500μm |
| FNRS | FN | 90° regular cabled | 0~1500μm |
| FNDS (duplex | FN | regular cabled | 0~1500μm |
| FNTS | FN | high-range cabled | 0~6mm |
| FNGS | FN | high-range cabled | 0~63.5mm |
