CHINA ZY-CH-10KPa Battery Fiber Shelf Thickness Gauge

ZY-CH-10KPa battery fiber Shelf Thickness Gauge measurement range 0-18mm, measurement accuracy 0.01mm, Measuring pressure 10 +/- 0.5kpa, measurement head diameter 28mm, ZY-CH-10KPa battery fiber Shelf Thickness Gauge is suitable for ceramic fiber paper, battery fiber Shelf thickness measurement.
Model：
Contact
Details SPEC

zy ZY-CH-10KPa Battery Fiber Shelf Thickness GaugeSPEC

zy ZY-CH-10KPa Battery Fiber Shelf Thickness GaugeDetails

zy ZY-CH-10KPa Battery Fiber Shelf Thickness GaugePacking list

SKU
NB034038
Measurement range
0~18mm
Measurement Accuracy
0.01mm
Measuring pressure
10±0.5kpa
Probe diameter
28mm
Measurement of parallelism between planes
<0.035mm
Dimensions
80×120×120(mm)
Weight
2.5kg
ZY-CH-10KPa
Battery Fiber Shelf Thickness Gauge

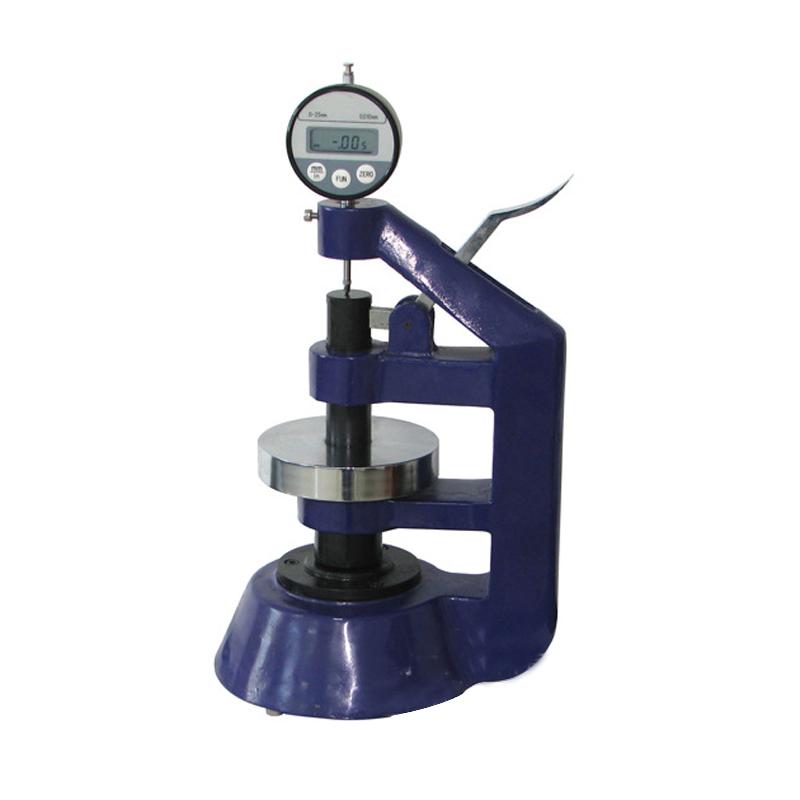

CHINA ZY-CH-10KPa Battery Fiber Shelf Thickness Gauge Picture

Product desciption

This equipment is suitable for measuring the thickness of ceramic fiber paper and battery fiber separators. GB/T451.3 Method for determination of thickness of paper and cardboard; JBT7630.1 Ultra-fine glass fiber separator for lead-acid batteries.
