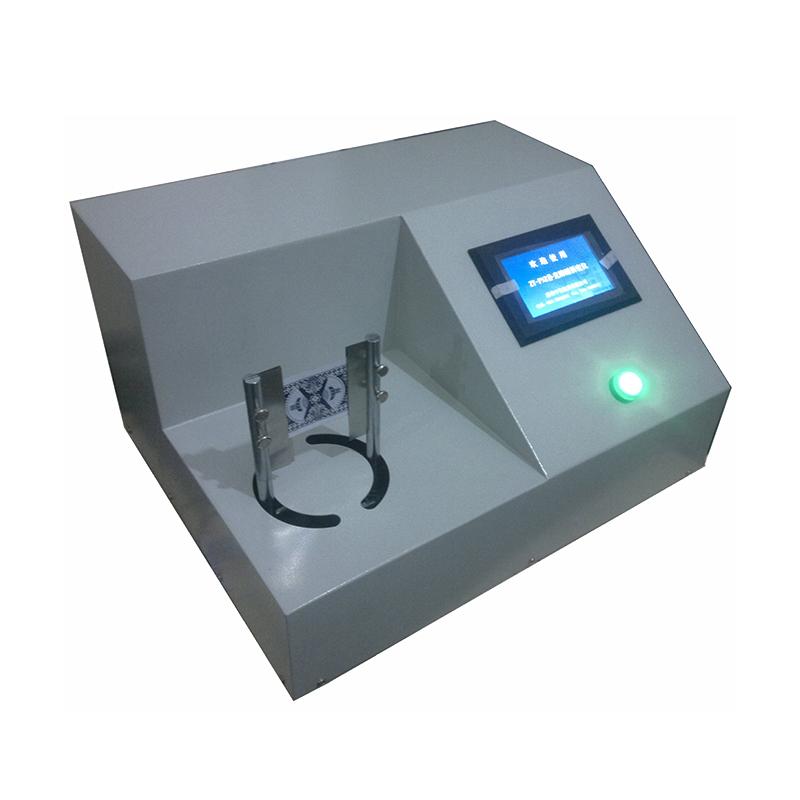

CHINA ZY-PNZ playing card folding resistance instrument
SE
ZY-PNZ
-
JINGWEN JW107C MIT Paper Folding Endurance Tester$ 1446.00SE -
CHINA ZY-NZ1 folding resistance instrument$ 1594.00SE -
CHINA ZY-NZ-1 Folding Tester Cardboard Folding Tester$ 1563.00SE -
YINUO YN-MIT135 MIT type folding resistance Tester 135 °/15mm * ≥ 140mm: 1~ 99999 times$ 2418.00SE -
IMT-FOLD01 MIT Folding Tester
zy ZY-PNZ Poker folding meterSPEC
zy ZY-PNZ Poker folding meterDetails
zy ZY-PNZ Poker folding meterPacking list
- SKU
- NB034039
- Machine running speed
- 85-90 times/Min
- Sample size
- 87MM (length) × 62MM (width); 88MM (length) × 63MM (width); 87MM (length) × 57MM (width); 88MM (length) × 58MM (width)
- thickness
- ≤0.5MM
- folding angle
- 180°
- Power
- AC220V 50Hz
1 Scope
It is suitable for measuring the ability of playing cards to resist 180° reciprocating folding times. It is specially used to test the folding endurance of playing card products.
2. Production standard
QB/T 2807-2006 "Poker board" GBT 2679.5-1995 Determination of folding endurance of paper and board (MIT folding endurance Tester method)
QBT 2228-2013 Playing Cards
3. Instrument description
3.1 Instrument control buttons
start machine run fold motion switch
The total number of clear tests and the number of folds this time
3.2 Functional description
Specimen holder: used to hold the specimen.
Speed: Fixed sample clamp running (folding) speed. 87 times/min
Power switch: control the main power of the machine
Leveling feet: used to adjust the balance of the machine
NC display: display test information, the upper number: the total number of folding, the lower number: the number of this folding.
4. Operation process
Prepare the sample——→ clamp the sample——→ turn on the instrument——→ press [Stop/Start] to stop the machine——→ view the results——→ the end of the test
