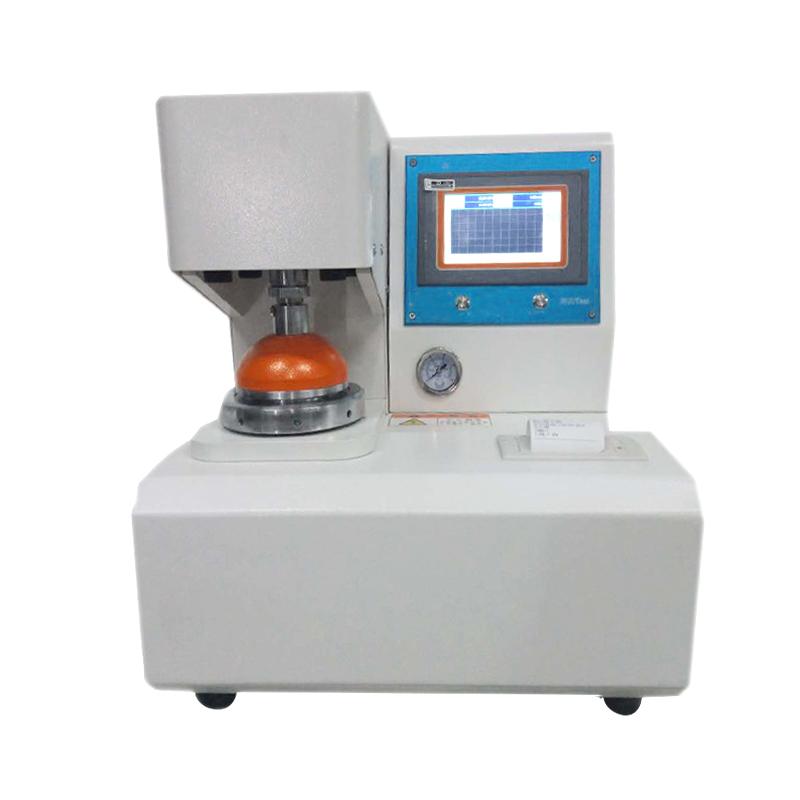

CHINA ZY-NP-2 Cardboard Burst Tester
SE
ZY-NP-2
-
Taichang TC-NPD5600Q Pneumatic Cardboard Burst Tester 250kPa~ 5600kPa$ 1311.00SE -
CHINA ZY-NP-1 paper Burst Tester$ 1361.00SE -
CHINA ZY-NP-ZBB Automatic Cardboard Burst Tester$ 1345.00SE -
PUYUN PY-H601A Automatic Burst Strength Tester (Cardboard Type) ≤ 5600Kpa Cardboard Burst Resistance$ 1283.00SE -
YANTE YT-NPY5600Q paper Burst Strength Tester Cardboard corrugated fibreboard$ 2345.00SE
zy ZY-NP-2 Cardboard Burst TesterSPEC
zy ZY-NP-2 Cardboard Burst TesterDetails
zy ZY-NP-2 Cardboard Burst TesterPacking list
- SKU
- NB034064
- Operation mode
- Membrane button
- Display mode
- LCD liquid crystal display
- Resolution
- 1kPa
- Measurement range
- 350~5500kPa
- Resolution
- 1kPa
- Error of indication
- ±0.5%FS
- Indication variability
- ≤0.5%
- Oil delivery speed
- 170±15mL/min
- Film resistance
- When the protruding height is 10mm, the resistance range is (170-220) kpa; when the protruding height is 18mm, the resistance range is (250-350) kpa.
- Clamping Force
- ≥690Kpa
- Hydraulic oil
- Glycerin 85%, distillation water 15%
- Clamp ring diameter
- Upper ring: high Voltage type Should be 31.50mm Lower ring: high Voltage type Should be 31.50mm
- Volume
- 44×42×56cm
- Power
- AC220V±10% , 50Hz 120W
- Weight
- About 75Kg
a brief introdction
This equipment is the basic instrument for testing the bursting strength of cardboard.
Product desciption
This equipment is the basic instrument for testing the bursting strength of cardboard. Its various performance parameters and technical indicators conform to ISO2759 "Cardboard - Determination of Bursting Strength" and GB1539 "Determination of Bursting Strength of Cardboard". Using signal transmission pressure, test When the material breaks, the maximum breaking strength value is automatically reserved.
Features
Large blue LCD display,
One-button automatic test, automatic stop and return when the pattern breaks, and automatically retain the maximum breaking strength value.
Automatically calculate the average value, maximum value and minimum value of multiple sets of test data.
Data report can be printed.
