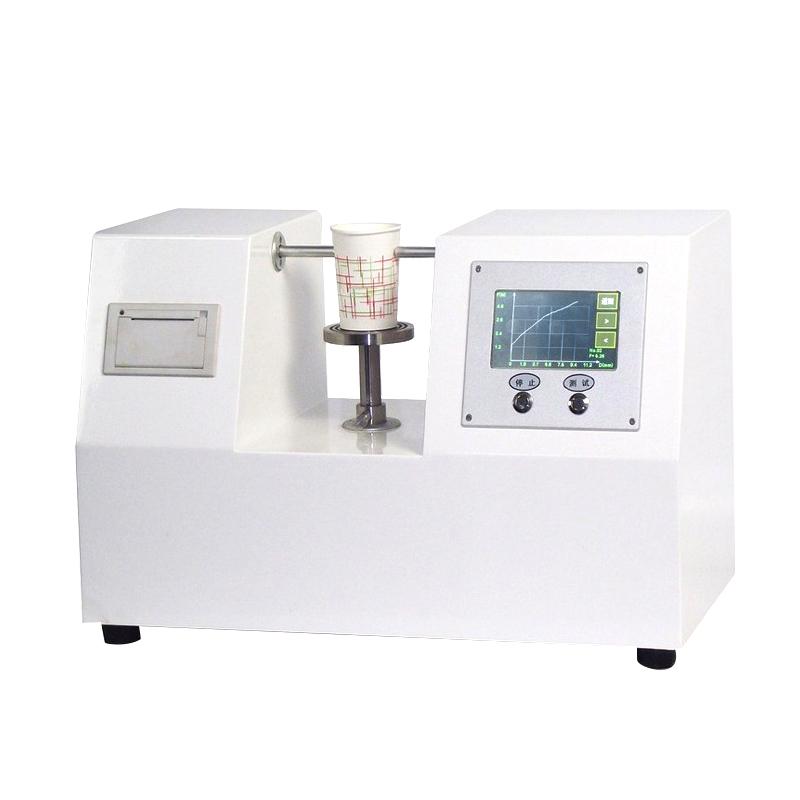

CHINA ZY-ZBT paper cup stiffness Tester

ZY-ZBT

Cup stiffness Tester

Measurement range 1~ 30N, resolution 0.01N, indication Precision +/- 1%, Test speed (50 +/- 2.5) mm/min.

Introduction

ZY-ZBT Paper Cup Paper Bowl Stiffness Tester is suitable for measuring the stiffness of paper cup body and paper bowl. It is a special instrument for testing the stiffness of paper cup body and paper bowl. The basic requirements of the standard for the instrument and the general technical requirements of JJG157 "Non-metal Tensile, Compression and Multifunctional Testing Machine" are designed to be the physical performance testing equipment for paper cups required by paper cup manufacturers and related scientific research and quality inspection departments.

Executive standard: QB/T 2294, JJG157, GB/T 27590-2011.

Features

The instrument adopts single-chip microcomputer control technology, equipped with aluminum alloy panel, standard buttons are sensitive and durable, LCD Chinese display, with test data memory function, high-speed thermal printer printout, fully automatic test completion, automatic reset of the probe, and test data statistical processing Function. It can also be connected to a computer for operation. When connected to a computer, in addition to automatically memorizing and storing the results, it can also display and save the compression curve.

1. High-precision High-precision load cell and chip processor system imported from the United States, the measured value is accurate.

2. Good repeatability In the test system, the two measuring heads move relative to each other through the precision screw rod, the test speed is accurate and constant, and the test results have good repeatability.

3. Easy to use, easy to operate LCD Chinese display, friendly man-machine interface operation, fully automatic test, with test data statistical processing function, micro-printer output, and can also be connected to a computer for operation. When connected to a computer, in addition to automatically memorizing and storing the results, it can also The compression curve can be displayed and saved.

4. Convenient for measurement and calibration The instrument is specially equipped with a calibration probe pad, which is convenient for users or measurement and calibration departments (third parties) to use standard weights for force calibration.

Packing list：Host X1, operation manual X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
