CHINA ZY-TD stiffness Tester Cardboard Stiffness meter paper Bending Stiffness Tester

SE
Equipment designed for the measurement of bending stiffness of paper, Cardboard and Miscellaneous Non-metallic sheet materials with a thickness of less than 2mm, using the two-point static bending method. Measurement range 0~500mN/0~5000mN.
$2216.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

zy ZY-TD Stiffness meterSPEC

zy ZY-TD Stiffness meterDetails

zy ZY-TD Stiffness meterPacking list

SKU
NB034077
Measurement range
0~500mN/0~5000mN
Resolution
0.01mN/1mN
Indication Precision
±1%
Test speed
200 °/min +/- 10 ° In the case of bending 15 °, the bending time is not less than 3s and not more than 20s
Nominal bending length
50mm
bending angle
Adjustable from 0 to 90 degrees (commonly used 15 degrees)
Fixture width
38mm ±0.1mm
Power
AC220V 50Hz
Dimensions
330*340*290mm
Net Weight
14Kg
ZY-TD
Stiffness meter
Equipment designed for the measurement of bending stiffness of paper, Cardboard and Miscellaneous Non-metallic sheet materials with a thickness of less than 2mm, using the two-point static bending method. Measurement range 0~500mN/0~5000mN.

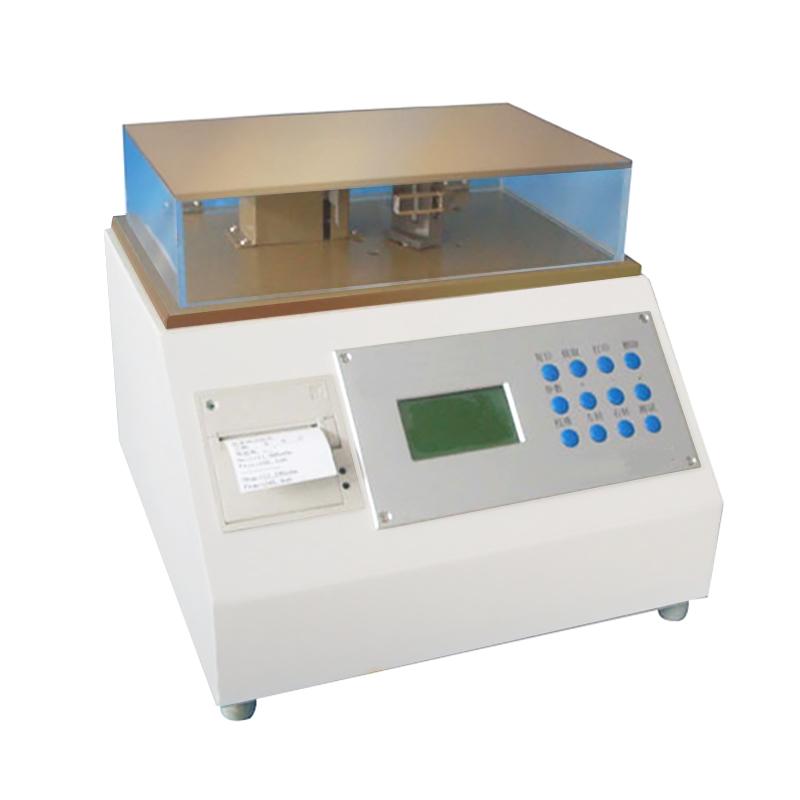

CHINA ZY-TD stiffness Tester Cardboard Stiffness meter paper Bending Stiffness Tester Picture

Introduction

The Stiffness Tester is used to measure the bending stiffness of paper, cardboard and other non-metallic sheet materials with a thickness of less than 2mm (two-point static bending method). The force value is determined by clamping the cardboard test sample at one end and bending the other end to a certain angle.

Standards

GB/T22364 GB/T2679.3 QB/T1051 ISO5628

FAQ
QOur company mainly makes Cardboard Encasement, which needs to measure stiffness. Do you have any recommended instruments?
A ZY-TD stiffness tester is specially used to measure the bending stiffness of sheet materials such as Cardboard, in line with national standards, Measurement range, high accuracy, very suitable for Cardboard Encasement industry quality control.
QWhere is this Stiffness meter generally used? Why is it needed?
A Stiffness meters are commonly used in the papermaking, Encasement and printing industries. In these scenarios, stiffness directly affects the processing performance and finished mass of the material, such as the compressire strength of the carton and the crispness of the book. By measuring stiffness, you can ensure that the material meets the production requirements and avoid product defects caused by insufficient stiffness.
QHow is this stiffness meter measured?
A Hello, it is through the two-point static bending method.
