CHINA ZY-DL-A15 single wing Dropping Tester

ZY-DL-A15 single-wing Dropping Tester is used to test the damage of the product Encasement by falling, and evaluate the impact strength during transportation and handling. The drop height of ZY-DL-A15 single-wing Dropping Tester is 400-1500mm, the maximum weight measurement is 60kg, the maximum size of the specimen is 800 * 1000 * 800mm, and the impact panel size is 1400 x 1200mm.
Model：
Contact
Details SPEC
Similar products

zy ZY-DL-A15 Single Dropping TesterSPEC

zy ZY-DL-A15 Single Dropping TesterDetails

zy ZY-DL-A15 Single Dropping TesterPacking list

SKU
NB034083
drop height
400~1500mm
test load
60kg
Maximum size of specimen
800*1000*800mm
Baseplate size
1400*1200mm
drop error
<1°
Drop height error
±10mm
Dimensions
1400*1200*1915mm
Net Weight
About 250kg
Power
1.85KW
ZY-DL-A15
Single Dropping Tester

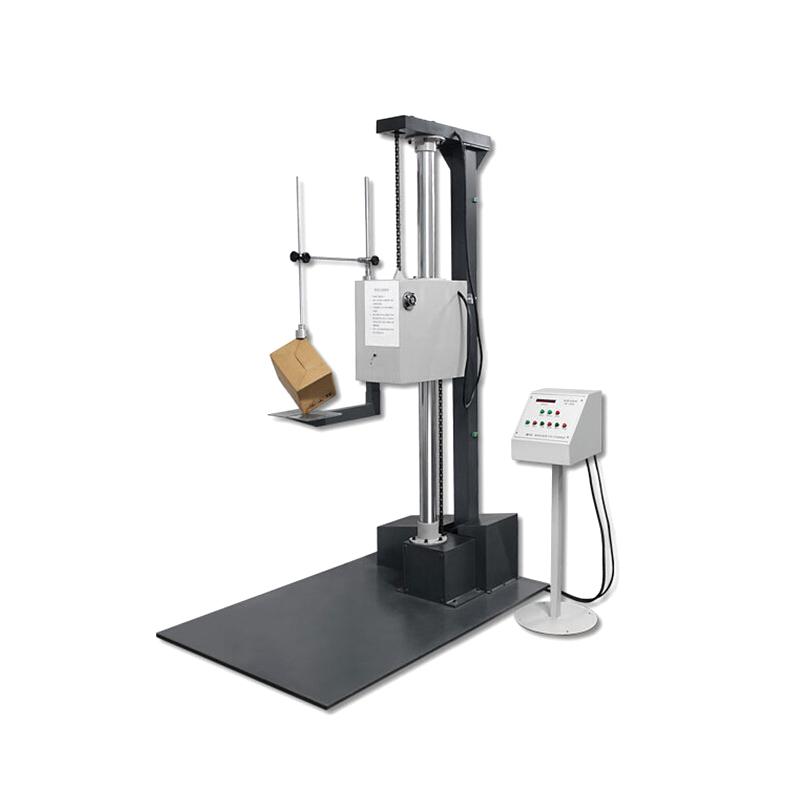

CHINA ZY-DL-A15 single wing Dropping Tester Picture

a brief introdction

This machine is specially used to test the damage of product packaging caused by falling, and to evaluate the impact resistance during transportation and handling. It can perform free drop tests on the faces, corners, and edges of packages. It is equipped with a digital height display and a decoder. Height tracking, so that the product drop height can be accurately given, with an error of no more than 2% or 10mm from the preset drop height. This machine adopts a single-arm double-column structure, with electric reset, electronically controlled drop and electric lifting devices, which is easy to use; the single-arm setting can conveniently place products; the drop arm can be telescopic to facilitate the dropping of different boxes.　

Applicable standards: ISO 2248 JIS Z0202-87 GB/T4857.5-92
