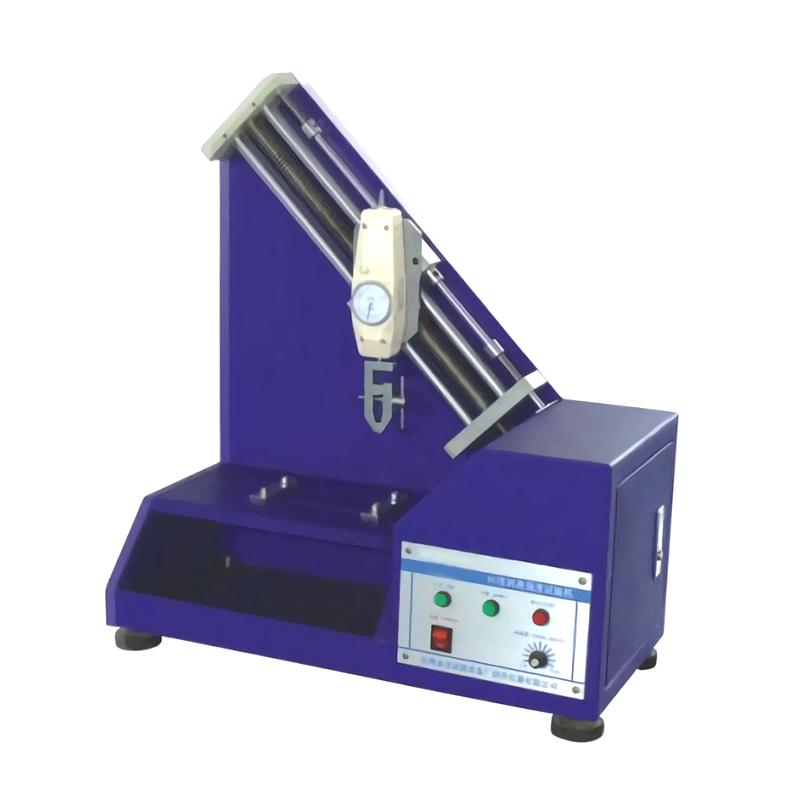

CHINA ZY-BL-2 Peel strength Tester
ZY-BL-2 Peel strength Tester is dedicated to testing the adhesion of copper foil, tin foil, aluminum foil and tape on PCB boards. ZY-BL-2 Peel strength Tester has a stroke of 200mm, a measurement range of 0~500N (50KG), a measurement accuracy of 0.5% and 1% (determined by the tensIon Meter), and a speed range of 0-200mm/min or specified (analog adjustable).
Model：
ZY-BL-2
zy
Manufacturer authorization
zy ZY-BL-2 Peel strength TesterSPEC
zy ZY-BL-2 Peel strength TesterDetails
zy ZY-BL-2 Peel strength TesterPacking list
- SKU
- NB034088
- Power
- AC220/50HZ
- Power
- 30W
- The machine bears the load
- 50Kg (machine bearing Capacity)
- effective travel
- 200mm
- Measurement range
- 0~500N（50KG）
- Measurement Accuracy
- 0.5% and 1% (determined by the tension gauge)
- Test speed range
- 0~200mm/min
- Dimensions
- 430*220*475mm
- control
- Stepless speed regulation (automatic, jog function)
- Weight
- About 45KG
ZY-BL-2
Peel strength Tester
a brief introdction
The 90-degree peel Strength Tester is specially designed and manufactured for vertical peel testing. It is equipped with various digital display (pointer or digital meter) push and pull force meters. It is specially used to test the adhesion of copper foil, tin foil, aluminum foil and tape on PCB boards. .
The frame adopts a trapezoidal screw drive and an integral nut design. The slider is 45 degrees horizontally. The movement ensures that it moves synchronously with the peeled object to be tested during the test to meet the vertical peeling test requirements. It has the advantages of manual operation, simplicity and stability.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
Standard
