Specifications
| Detection Voltage | 500~35000V |
| type | Pulsed DC (30Hz) |
| Voltage range | 10V at 500~1000V; 100V at 1kV-35kV |
| Output Accuracy | ±5% |
| operating temperature | -20 ℃ to 60 ℃ (-4 ° F to 140 ° F) |
| battery | 72Wh rechargeable smart lithium battery |
| Charging time | 3 hours |
| battery life | Depends on test Voltage and electrode load |
| Typical battery life | Φ12 inch rolled steel spring @10kV, 40 hours; φ40 inch rolled steel spring @10kV, 30 hours |
| Weight | 1.8 kg (4 lbs) with battery (no electrodes) |
| size | 640x64x130mm |
| Standards | AS 3894.1、ASTM D4787、ASTM D5162、ASTMG62、ISO 29601、NACE SPO274、NACE SP0188和NACESP0490 |
Packing list

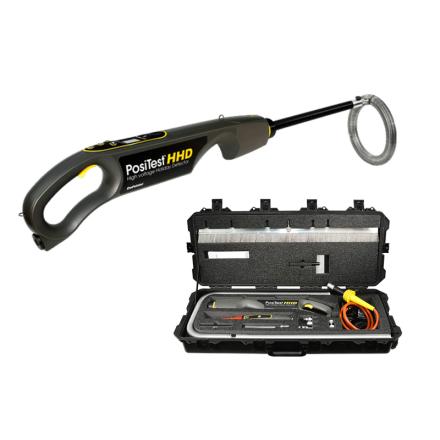

Host x1, extension rod and wing screw x1, 50cm stainless steel fan brush x1, 7.6m grounding cable with grounding clip x1, shoulder strap x1, lithium-ion battery pack with built-in charge status indicator x1, with universal AC voltage input Smart battery charger x1, Peliken crash box x1,
After-sales instructions
Warranty days: 367 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/34103/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
