MODERNER Combination 75 * 150 * 300 * 400 quadrilateral fabricator, custom application width 100mm

SE
Wet film thickness 75/150/300/400μm, application width 100mm, material: stainless steel, type: 4-sided, Total length 130mm.
Certificate
Contact
Details SPEC Con

Moderner SZQ-100 combination 75 * 150 * 300 * 400 Quadrilateral PreparerSPEC

Moderner SZQ-100 combination 75 * 150 * 300 * 400 Quadrilateral PreparerDetails

Moderner SZQ-100 combination 75 * 150 * 300 * 400 Quadrilateral PreparerPacking list

SKU
NB034127
WFT
75 / 150 / 300 / 400µm
Application width
100mm
material
stainless steel
type
4-Sided
Total length
130mm
SZQ-100 combination 75 * 150 * 300 * 400
Quadrilateral Preparer
Wet film thickness 75/150/300/400μm, application width 100mm, material: stainless steel, type: 4-sided, Total length 130mm.

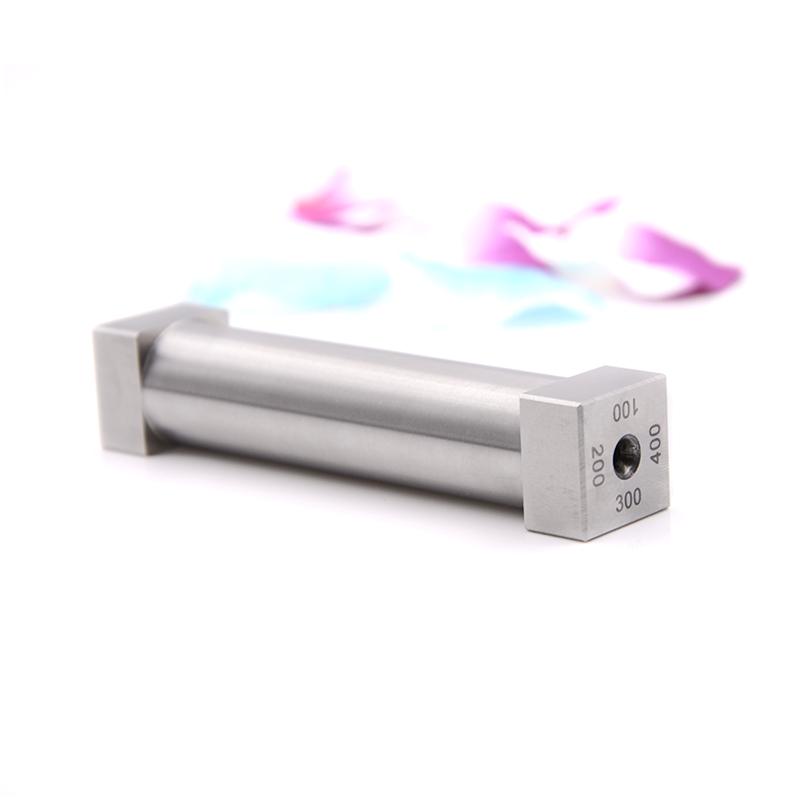

MODERNER Combination 75 * 150 * 300 * 400 quadrilateral fabricator, custom application width 100mm Picture

Introduction

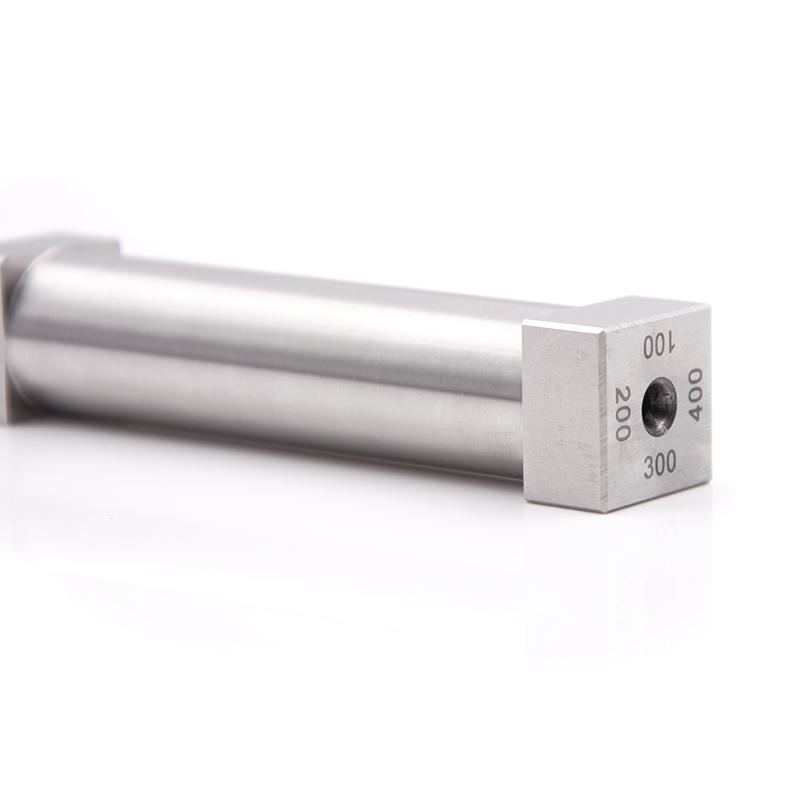

MODERNER Combination - 75*150*300*400 Quadrilateral Preparator has a wet film thickness of 75 /150/300/400μm and is made of 9Cr18Mo stainless steel with a hardness of HRC48±2. The quadrilateral preparer is a Wet Film Applicator with square ends and a cylinder in the middle.

Applications

Combination - 75/150/300/400 Quad Prep is a wet film prep for preparing specific wet film thickness, determining hiding power and color or preparing samples .

FAQ
Q4-Sided Film Applicator accuracy +/- 2μm refers to the same plane, the total deviation of 4 microns, or 2 microns?
A Accuracy +/- 2 microns is the overall deviation of 4 microns, that is, on the same plane, a total of 4 microns up and down.
QSZQ-10075*150*300*400 quadrilateral fabricator capable of film 75 μm, 150 μm, 300 μm, 400 μm wet film thickness?
A No problem, this 4-sided Film Applicator is for scraping samples 75/150/300/400μm
