DRICK DRK105 smoothness Tester

The DRICK DRK105 smoothness Tester is used for the testing of high-smoothness paper and Cardboard, and is not used to test materials with a thickness of more than 0.5mm or paper or Cardboard with a large Porosity. The test area of the DRK105 smoothness Tester is 10 +/- 0.05cm2, and the vacuum setting range is 50.66 to 48.00 (kpa), 50.66 to 48.00 (kpa), and 50.66 to 29.33 (kpa).
Model：
Certificate
Contact
Details SPEC
Similar products

Drick DRK105 Smoothness meterSPEC

Drick DRK105 Smoothness meterDetails

Drick DRK105 Smoothness meterPacking list

SKU
NB034165
Power supply Voltage
AC220V±5% 50HZ
Precision
0.1s
Measurement range
0-9999 seconds, divided into (1~ 15) s, (15~ 300) s, (300~9999) s three gears
effective test area
10±0.05cm²
Timing Accuracy
Timing 1000s, the error does not exceed +/- 1s
Large vacuum container
380±1ml
Vacuum range
First file 50.66~ 48.00kpa Second file 50.66~ 48.00kpa Third file 50.66~ 29.33kpa
Volume of leaked air
(50.66kPa down to 48.00kPa) Large vacuum container 10.00 +/- 0.20ml; small vacuum container 1.00 +/- 0.05ml
test pressure
100±2KPa
monitor
Chinese dot matrix menu
Operating Environment
Temperature 5~ 35 ℃, Relative Humidity does not exceed 85%.
Dimension
318*362*518mm
Product Weight
47kg
Small vacuum container
38±1ml
DRK105
Smoothness meter

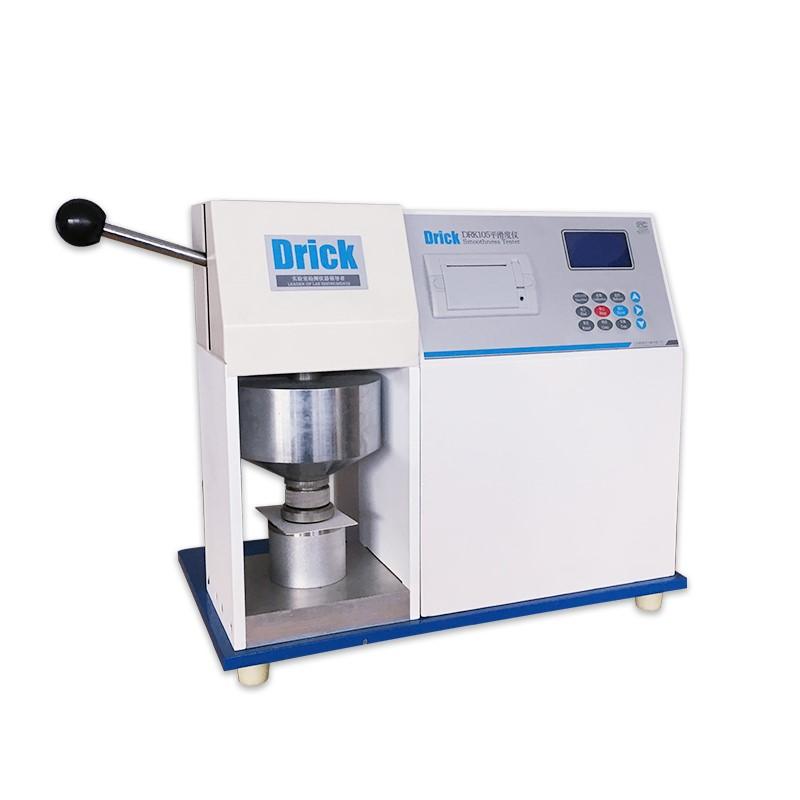

DRICK DRK105 smoothness Tester Picture

Product Details:

DRK105 smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument newly designed and developed according to the working principle of the internationally used Buick (Bekk) smoothness Tester.

Features

1. Oil-free Vacuum Pump: using a Vacuum Pump imported from South Korea, the Vacuum Pump can work without refueling, and the use of this instrument is oil-free and pollution-free.

2. Preload time selection: The instrument has the function of "60 seconds preload automatic control", and the user can choose whether to use this function according to his needs.

3. Fast measurement: small volume cavity can be used for measurement, and the measurement time is only one-tenth of that of large volume cavity, which greatly saves measurement time and realizes fast measurement.

4. Good sealing: foreign vacuum sealant and professional sealing technology are used to make the instrument seal meet the requirements of national standards.

5. Modular all-in-one printer, easy to install and low failure; Thermal printers and dot matrix printers are optional.

6. Free switching between Chinese and English, using large LCD display module, Chinese display operation steps, display measurement and statistical results, friendly man-machine interface makes the instrument simple and convenient to operate, reflecting the humanized design idea.

Product Applications

It is an instrument required for the inspection of various high-smooth papers. This smoothing instrument is used for the testing of high-smoothness paper and cardboard, and should not be used to test materials with a thickness of more than 0.5mm or paper or cardboard with high air permeability, because the amount of air passing through the specimen can cause unrealistic results.

Technical standards

Experimental Criteria:

ISO5627 "Determination of Smoothness of Paper and Cardboard (Buick Method)"

GB456 "Determination of Smoothness of Paper and Cardboard (Buick Method)"
