Japan OSP-04/250 + KHC.20 Proofing rod Drawdown Plate set

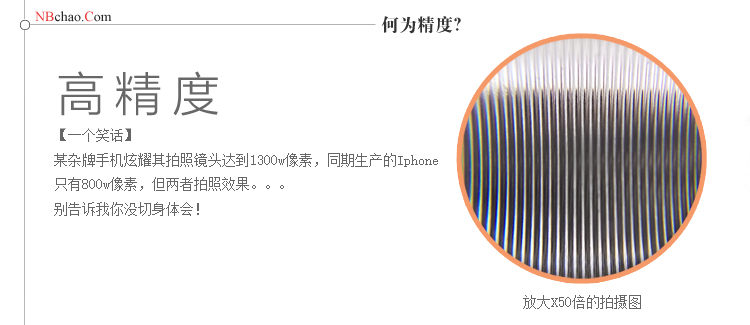

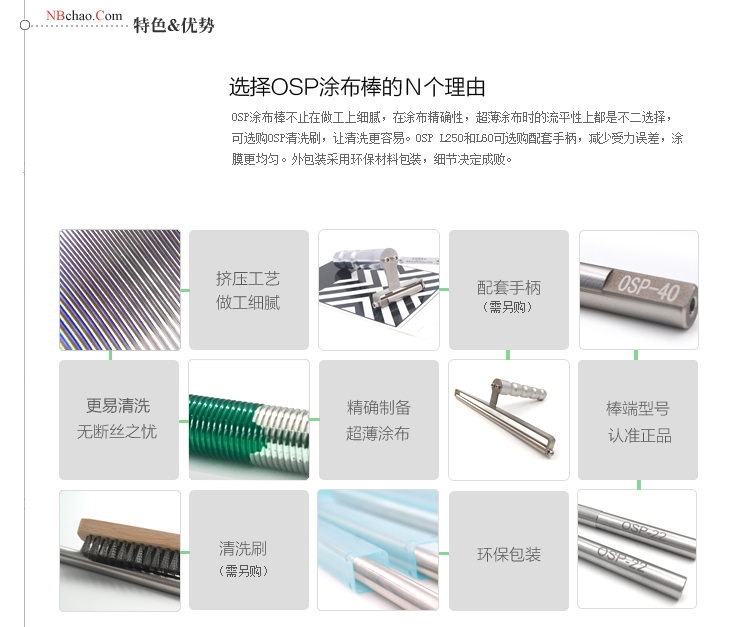

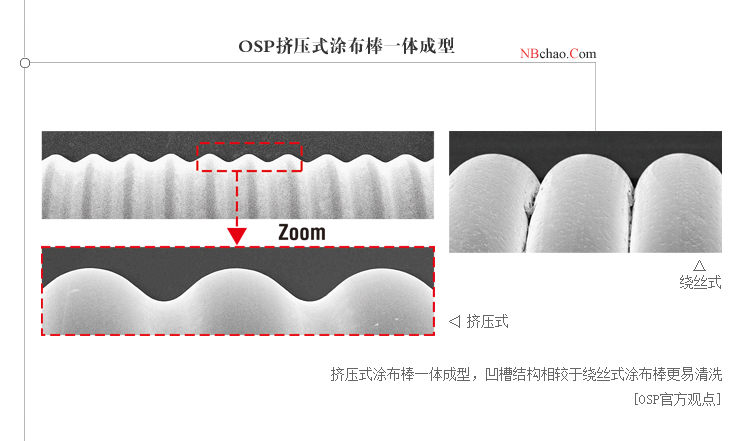

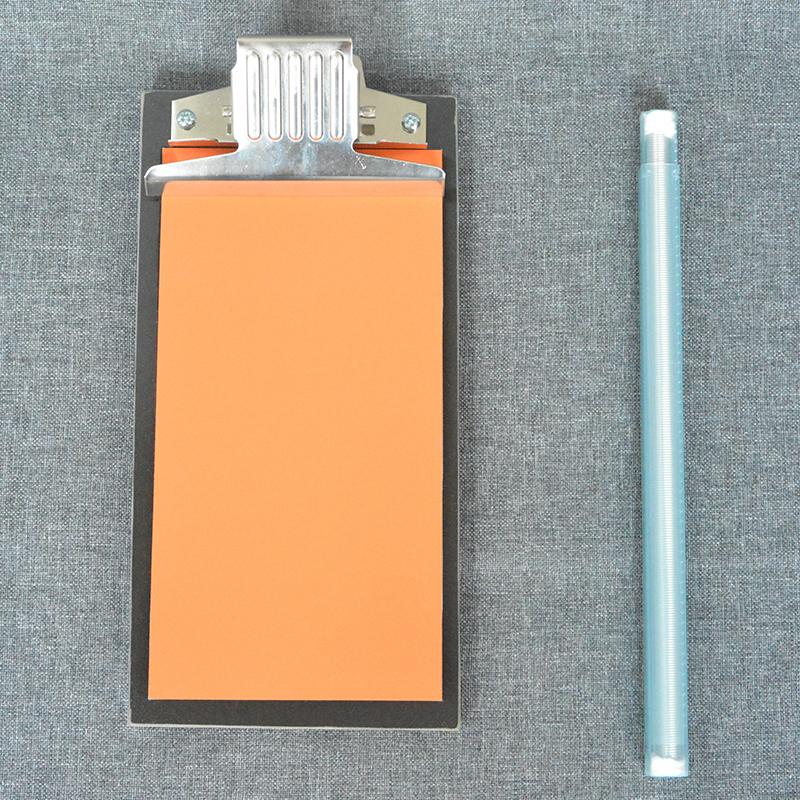

Japan OSP-04/250 Proofing rod Drawdown Plate set comes standard with 1 Drawdown Plate, which is an rk Spreader table imported from the UK. The Film thickness of OSP Proofing rod No. 4 is 4 μm, and the width of the Spreader is 250mm. It adopts the extrusion design process of continuous silk.
Model：
OSP-04/250+KHC.20
Similar products
OSP OSP-04/250+KHC.20 Applicator rod L250 setSPEC
OSP OSP-04/250+KHC.20 Applicator rod L250 setDetails
OSP OSP-04/250+KHC.20 Applicator rod L250 setPacking list
- SKU
- NB034263
- Production process
- Formed
- WFT
- 4μm

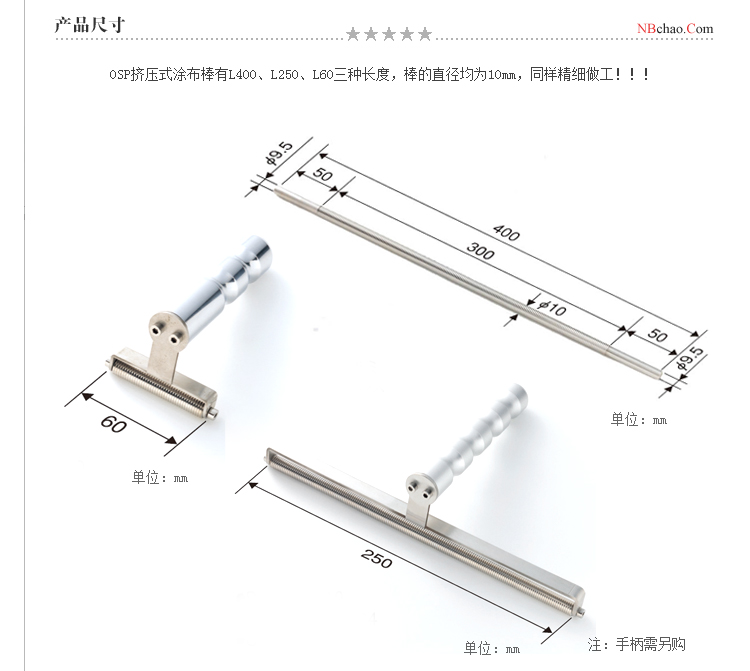

- diameter
- 10mm
- Total length
- 250mm
- Spreader width
- 250mm
- grip width
- 0
- material
- 304 stainless steel
- Drawdown Plate Model
- KHC.20
- Coating table size
- 11*18cm
- Baseplate size
- 247*124*12mm
- Drawdown Plate net Weight
- 0.66kg
- Drawdown Plate Material
- rigid polyester board + foam layer + rubber cushion
- Packing size
- 300*140*60mm
- Drawdown Plate Gross Weight
- 0.78kg

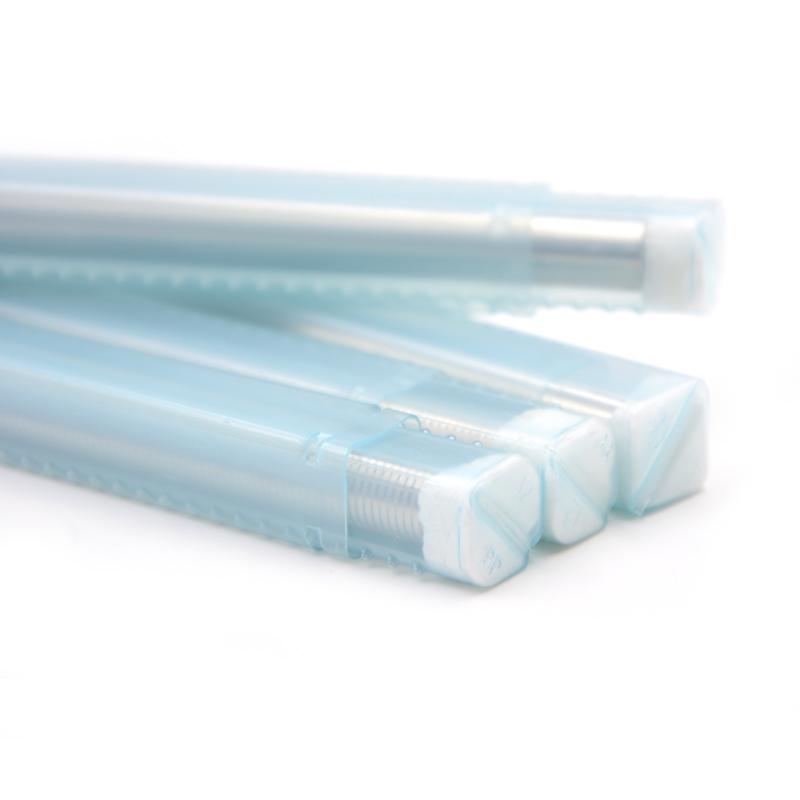

OSP-04/250+KHC.20
Applicator rod L250 set

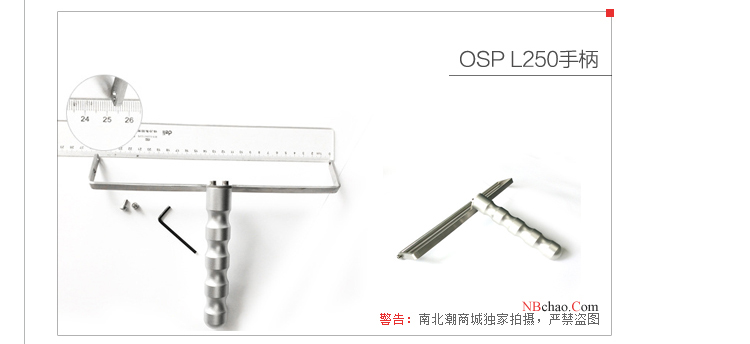

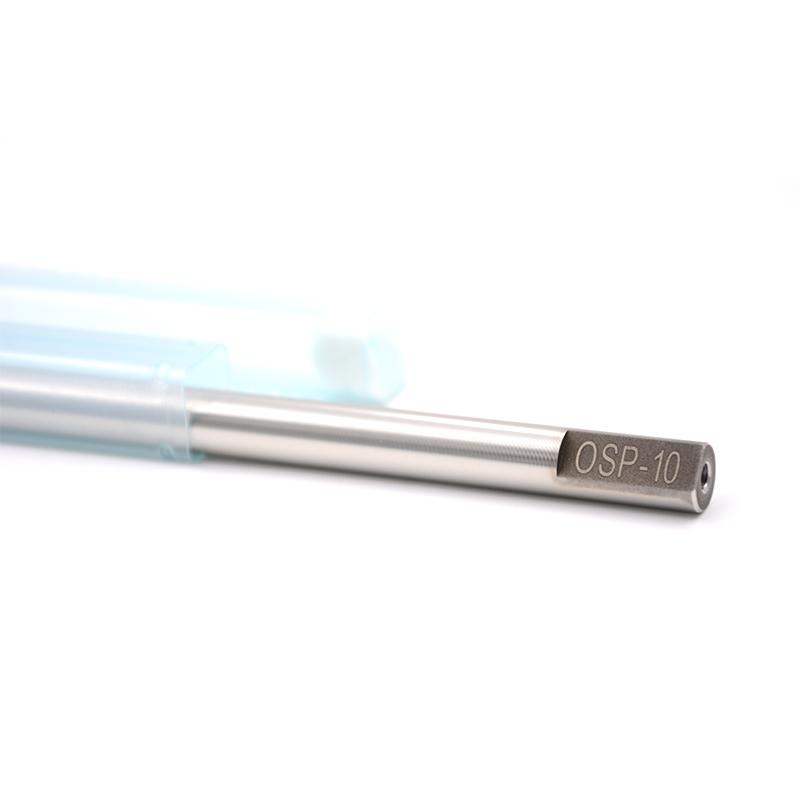

The imprint bed is specially designed for coating experiments by RK in the UK, and it is composed of three layers of pads of different materials, which can effectively improve the uniformity and reproducibility of the coating film. OSP-04/250 is an extruded coating rod with a coating thickness of 4 μm and a coating width of 250 mm. If it is equipped with an embossing bed, the effective coating width is 140mm. It is a hot-selling film coating rod imported from Japan, which realizes ultra-thin film coating and can be used with a handle.

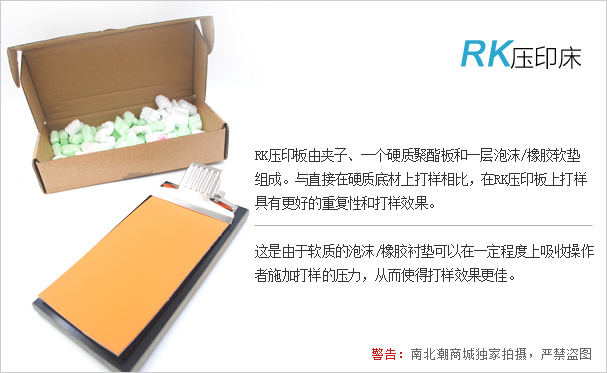

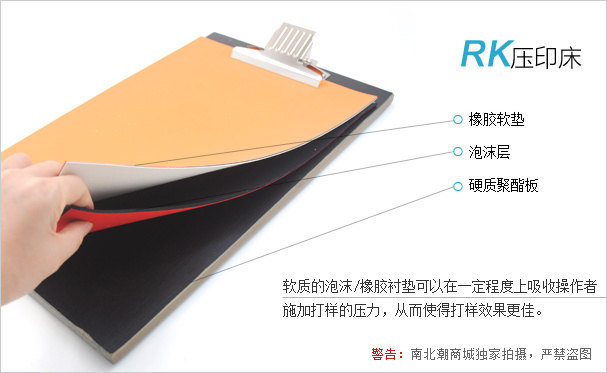

Illustration of the RK imprint bed
Optional
|
|
|
FAQ
QSolid content of the sample is 18% and Dry-Film is 1 micron. Do you have any suggestions?
A
This one is fine.
