OSP-1.5 L1000/φ 10 ultra-thin wire rod film glued wire rod 1.5μm can be customized

OSP-1.5 L1000/φ 10 ultra-thin rod film wet film thickness 1.5μm, Total length 1000mm, can be used for paper, tape protective film and other film control. Accurate and wear-resistant.
Certificate
Contact
Details SPEC VIDEO CAT

OSP OSP-1.5 L1000/Φ10 Formed wire scraperSPEC

OSP OSP-1.5 L1000/Φ10 Formed wire scraperDetails

OSP OSP-1.5 L1000/Φ10 Formed wire scraperPacking list

SKU
NB034267
WFT
1.5μm
Main rod diameter
10mm
Effective Spreader Width
1000mm
clamping length at both ends
0mm
Total length
1000mm
material
SUS304
OSP-1.5 L1000/Φ10
Formed wire scraper

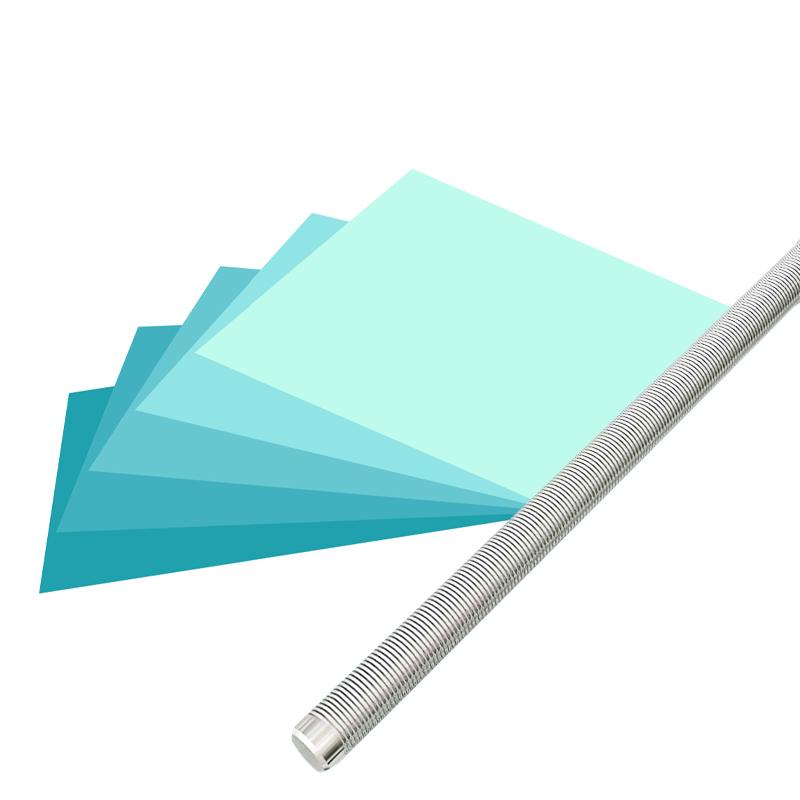

OSP-1.5 L1000/φ 10 ultra-thin wire rod film glued wire rod 1.5μm can be customized Picture

OSP series metering rods can be used for printing and coating of paper, film, etc., and the coating amount, length and surface treatment can be customized according to requirements. It is widely used in coatings, inks, paper printing and packaging, tape protective films and other industries. Nanbeichao provides system selection guidance and comprehensive customization services.

D-Bar (Standard) Groove Specification Sheet

OSP OSP-1.5 L1000/Φ10 Customized Wire Bar Detail Figure 1

OSP OSP-1.5 L1000/Φ10 Customized Wire Bar Details Figure 2

D-Bar about the selection of groove specifications

Although it depends on the coating conditions, the amount of coating solution transfer is usually related to (D-Bar> wire rod). Therefore, in the case of the same 1mm areaBelow, it can be considered that D-Bar has more applications.

It's just a guide, but when it comes to choosing a D-Bar by comparing it to a wire bar,Please refer to the excerpt from the list of groove specifications below, we recommend that you use the smallest size as a guide, such as A.

OSP OSP-1.5 L1000/Φ10 Customized Wire Bar Details Figure 3

*The 1 mm area shown in the groove specification table is the measurement data of a test piece with a material diameter of φ10.

*The test piece used for the measurement data is not surface treated.

* The area of 1 mm may vary depending on the selected material diameter, surface treatment type, and thickness.

*Our 1 mm area does not guarantee the coating amount, and depending on the coating conditions and the physical characteristics of the coating solution, it may differ from the estimated film thickness due toPlease use this as a reference value only.

D-BAR model

OSP OSP-1.5 L1000/Φ10 Customized Wire Bar Details Figure 4
