JINGTIAN NDJ-8S digital Rotational Viscometer with RTD temperature transducer

SE
Shanghai JINGTIAN digital display Rotational Viscometer NDJ-8S is a digital display Viscometer, with RTD temperature transducer measuring range 20~2000000mPa·s, rotor specifications L1, L2, L3, L4 rotors each, reproducibility ± 0.5%, measurement accuracy ± 1%
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-8S RTD Digital Rotational ViscometerSPEC

JingTian NDJ-8S RTD Digital Rotational ViscometerDetails

JingTian NDJ-8S RTD Digital Rotational ViscometerPacking list

SKU
NB034340
Display
digital display
Measuring range
20~2000000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Temperature transducer
RTD
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
NDJ-8S RTD
Digital Rotational Viscometer

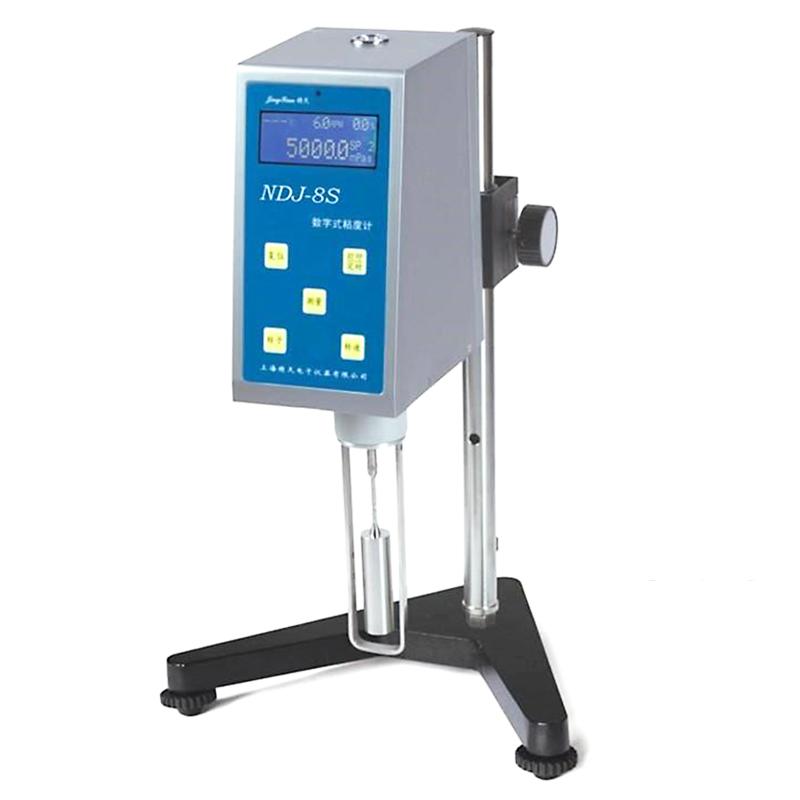

JINGTIAN NDJ-8S digital Rotational Viscometer with RTD temperature transducer Picture

Introduction

The LCD of JINGTIAN NDJ-8S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.



JINGTIAN NDJ-8S RTD Digital Display Rotary Viscometer Details Figure 1

FAQ
QI test the polymer here, the viscosity is about 10mpa.s, is it suitable for testing?
A Sure.
Q1~ 200,000 Viscometer for measuring cellulose, emulsion, etc. Which model is it?
A That NDJ-5S and NDJ-8S should be fine.
QWhich Viscometer is used for viscosity testing of salad dressing?
A You can use NDJ-8S for this.
QWhat is the viscosity range of general water-based paints? I don't know what range to choose for the viscosity measurement of industrial water-based paints
A Is there a rotor number, Rotation speed, temperature requirements, if not, NDJ series can.
QCan I get the limit value?
A This effective range is 10-90%.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
