JINGTIAN NDJ-5S digital display Rotational Viscometer with RTD temperature probe

SE
Shanghai JINGTIAN NDJ-5S digital display Rotational Viscometer can display Viscosity, speed, temperature and other parameters, with RTD temperature probe, with eight speed, NDJ-5S Rotational Viscometer measurement accuracy of ± 1%.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-5S RTD Digital Rotational ViscometerSPEC

JingTian NDJ-5S RTD Digital Rotational ViscometerDetails

JingTian NDJ-5S RTD Digital Rotational ViscometerPacking list

SKU
NB034341
Display
digital display
Measuring range
20~100000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Temperature transducer
RTD temperature probe
Rotor speed
6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
Four speed
NDJ-5S RTD
Digital Rotational Viscometer

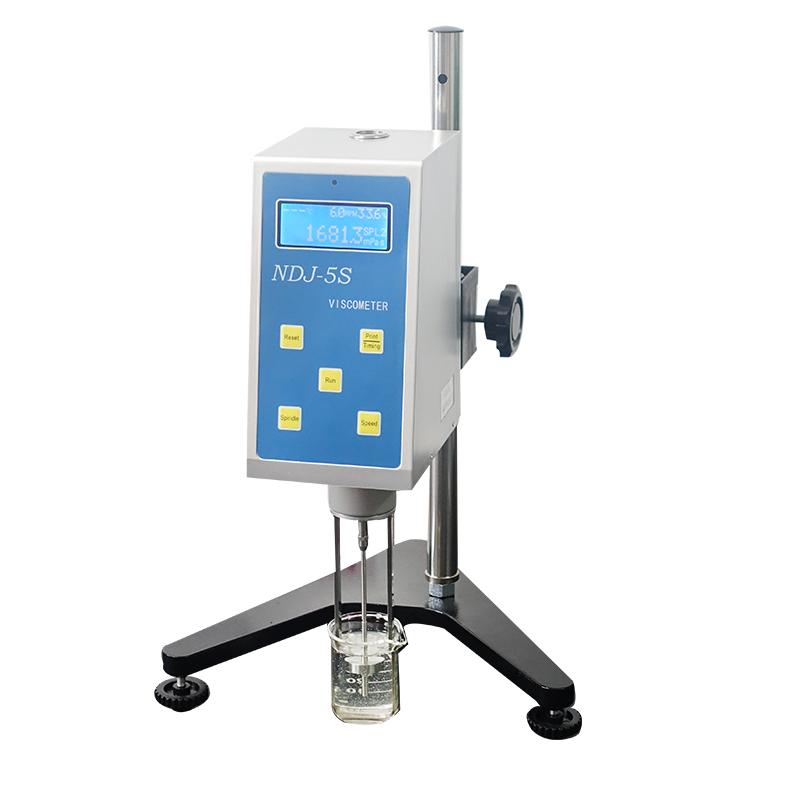

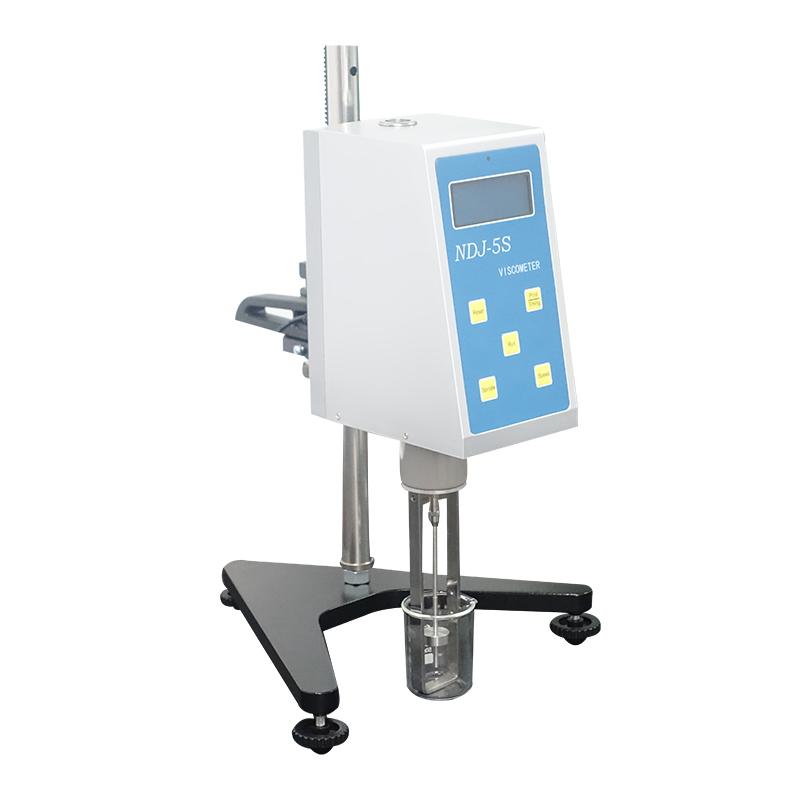

JINGTIAN NDJ-5S digital display Rotational Viscometer with RTD temperature probe Picture

Introduction

The LCD of JINGTIAN NDJ-5S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display rotary viscometer with a measuring range of 20 to 100,000 mPa·s.

JINGTIAN NDJ-5S RTD Digital Display Rotary Viscometer Details Figure 1


FAQ
QWhat is the recommended viscosity measurement instrument for lithium battery slurry?
A This is generally NDJ-5S\ 8S.
QDoes this have a data collection Communication interface?
A 232 interface can be installed.
QWhat is the Temperature range of this Viscometer with temperature sensor?
A Hello, Temperature range is 0~ 100 ℃.
QWhich one is suitable for about 5mpa.s with small viscosity?
A The viscosity is relatively small, you can use NDJ series with No. 0 rotor [separately purchased]
QMeasure the viscosity of latex, is this Viscometer suitable?
A Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
