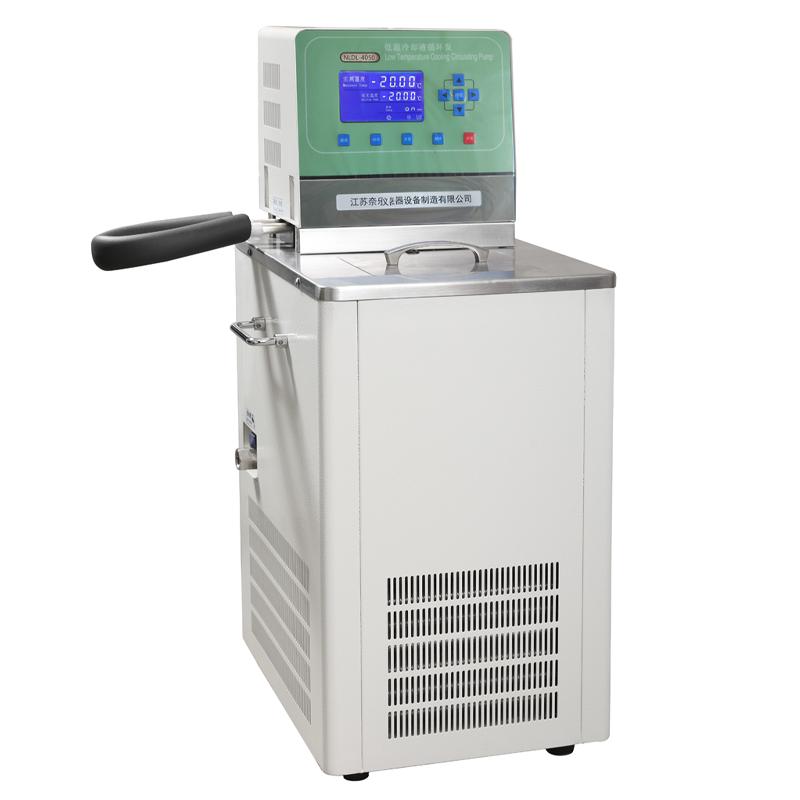

NELE DL-3050 Circulating Chiller 50L/-30 ℃

DL-3050

Circulating Chiller

-30~ RT ℃, liquid storage tank volume 50L, cooling capacity 5800W, temperature display accuracy 0.01 ℃, thermostatic accuracy +/- 0.5 ℃, pump maximum Flow rate 13L/min

System Features

This series of products is a low-temperature liquid circulation equipment that adopts mechanical refrigeration, and has the function of providing low-temperature liquid and low-temperature Water Bath. Used for circulating refrigeration of rotary evaporators, vacuum freeze-Drying Ovens, circulating water Vacuum Pumps, ultraviolet Spectrophotometer s, magnetic stirrers and other instruments, and can perform chemical reactions, biological reactions, and drug reactions under multifunctional low temperature conditions.

Microcomputer intelligent control system Totally enclosed compressor refrigeration microcomputer can be set to 0~9999 minutes, timing shutdown, digital display resolution +0.01°C, large-screen LCD display with microcomputer software

main feature

• Digital display resolution: 0.01°C

• Temperature fluctuation: +0.05

• Temperature range controllable: -120~ room temperature

technical features

• Fully enclosed environmental protection compressor refrigeration system imported brand (Panasonic of Japan or Taikang of France).

• Temperature range: optional -50 ~ room temperature (media choose pure water, ethylene glycol, alcohol according to the temperature range);

• Temperature control function: integrated new-generation PID automatic temperature control program is equipped with a large-screen high-brightness LCD in Chinese and English, and the resolution of the digital display is

• 0.01°C to ensure stable operation of the equipment.

• Capacity range: 5L, 10L, 15L, 20L, 30L, 50L, 100L, and non-standard products can also be designed and produced completely according to user requirements.

• The internal circulation function adopts a heatless centrifugal circulation pump to avoid the influence of the traditional water pump on the temperature field of the tank due to its own heat generation. The internal circulation system is designed on the principle of porous U-shaped reflux circulation , which realizes the smooth flow and high uniformity of the flow field and temperature field in the tank.

• The shell of the fuselage adopts anti-aging electrostatic spray technology, and the liner and table are made of high-quality S304 brushed stainless steel.

• The fine workmanship of the front panel and table top of the chassis, coupled with the unique humanized R rounded corner design structure, can prevent operators from being injured by edges and corners inadvertently.

• The water release system can meet the needs of various laboratories and enterprises for liquid replacement.

• Safety protection device:

1. With power-off protection function

2 has the upper and lower limit temperature alarm setting function

3. Low water level protection and alarm function

4. Temperature runaway protection and alarm function

5. The heating device has low water level anti-dry and explosion-proof functions

6. Multiple protection functions for compressor overheating and overcurrent

DL series selection table

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
