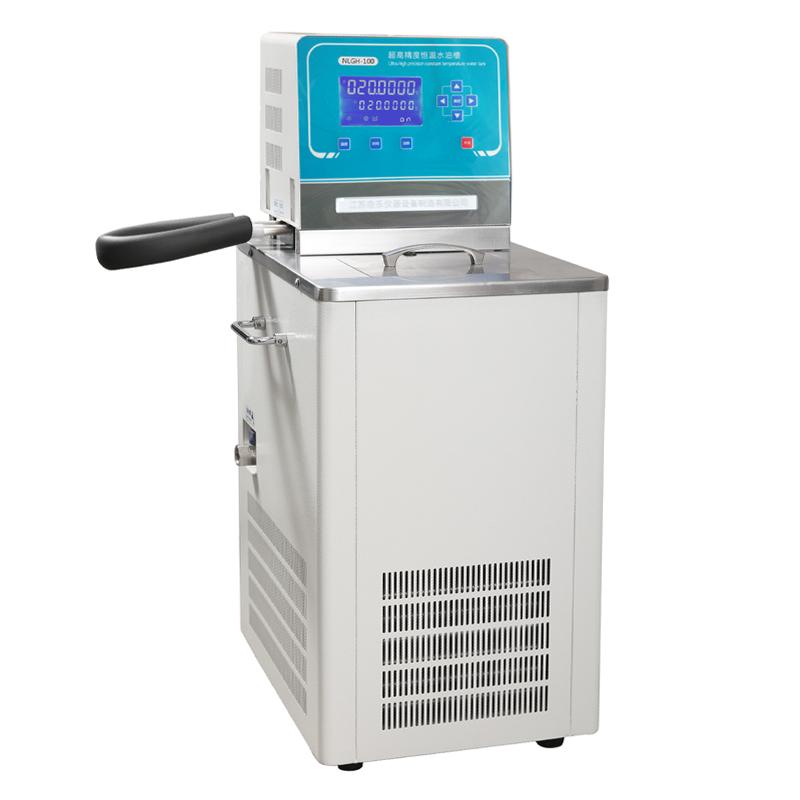

NELE GDH-0515 Ultra high accuracy Thermostatic Bath 15L/-5 ℃

GDH-0515

Ultra-Precision Low-Temperature Thermostatic Bath

-5~ 100 ℃, Temperature uniformity +/- 0.0050 ℃, working groove size 300 * 250 * 200mm, working groove volume 15L, groove opening size 235 * 160mm, Circulating Chiller type U.

Features

Totally enclosed environment-friendly compressor refrigeration system is imported from French Taikang or Japanese Panasonic.

Temperature range: 120~100°C is optional (pure water, ethylene glycol alcohol is selected as the medium according to the temperature range);

Temperature control function: Built-in integrated new-generation PID automatic temperature control program, built-in highest precision PT100 temperature sensor AAA level. Equipped with a large bright LCD, Chinese and English bilingual display, digital display resolution: 0.0001 ℃, to ensure accurate and stable temperature control.

Capacity range: 6L, 10L, 15L. 20L, 30L, 50L, 100L, non-standard can also be designed and produced completely according to user's requirements.

Internal circulation function: Adopt a heatless centrifugal circulation pump to avoid the influence of the traditional water pump on the temperature field of the tank due to its own heat production. The internal circulation system is designed on the principle of porous U-shaped reflux circulation, which realizes the turbulence and high uniformity of the flow field and temperature field in the tank.

The shell of the fuselage adopts anti-aging electrostatic spray technology, and the liner and table are made of high-quality S304 brushed stainless steel.

The fine workmanship of the front panel and table top of the chassis, coupled with the unique humanized R rounded corner design structure, can prevent operators from being injured by edges and corners inadvertently.

Safety protection device:

1. With power-off protection function

2. With upper and lower limit temperature alarm setting function

3. Low water level protection and alarm function

4. Temperature runaway protection and alarm function

5. The heating device has low water level anti-dry and explosion-proof functions

6. Multiple protection functions for compressor overheating and overcurrent

GDH selection table

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
