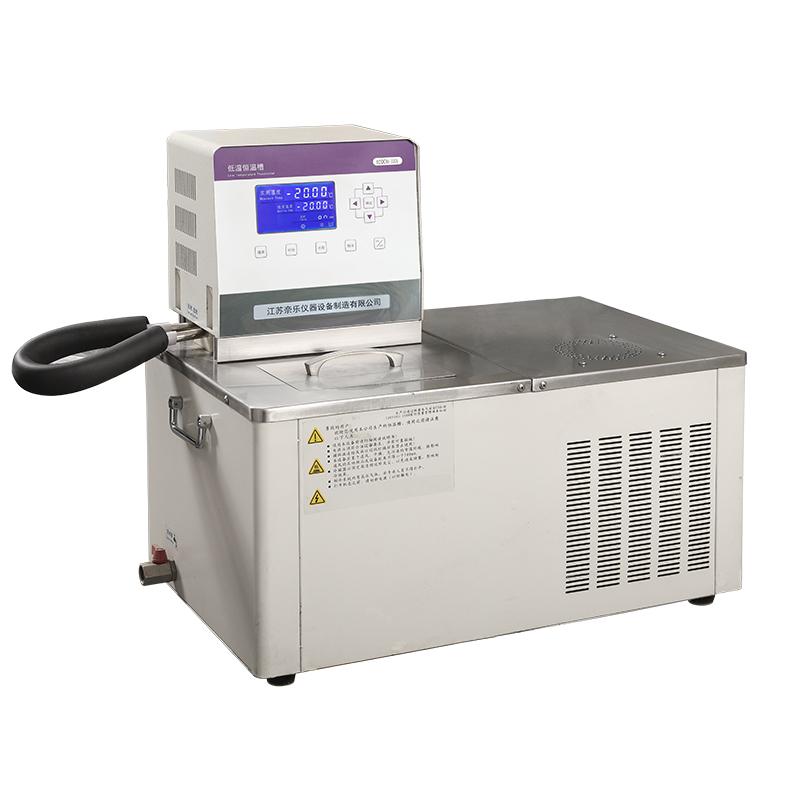

NELE DC-20100 Thermostatic Bath horizontal 100L/-20 ℃ +/- 0.05 ℃

DC-20100 (horizontal)

Thermostatic Bath

Introduction

The high-precision low-temperature thermostat adopts a fluorine-free refrigeration system, and the main components are directly imported, with stable and reliable performance. Widely used in petroleum, chemical industry, electronic instruments, physics, chemistry, biological engineering, life science, light industry food, physical property testing and chemical analysis and other research departments, colleges and universities, enterprise quality inspection and production departments, to provide users with a cold and hot controlled, uniform and constant temperature liquid environment, the test samples or production of products in the tank directly for constant temperature test or test can be used for direct heating or refrigeration, as a temperature source for auxiliary heating or refrigeration, such as the reactor, automatic synthesis instrument, Extraction and temperature control of condensation units.

System features:

Digital display resolution: 0.01°C

Temperature fluctuation value: ±0.05°C

Temperature range controllable: -120~100°C (need to select the corresponding model)

Features

Fully enclosed and environmentally friendly compressor refrigeration system, CFC-free.

Temperature range: optional -60 ~ 100 °C (pure water, ethylene glycol, alcohol, etc. are selected according to the temperature range);

Temperature control function: Embedded in the new generation of PID automatic temperature control program, built-in high-precision PT100 temperature sensor 1/3B level. Equipped with a large-screen high-brightness LCD screen, the resolution of digital display in Chinese and English is 0.01°C, to ensure accurate and stable temperature control.

Capacity range: 6L, 10L, 15L, 20L, 30L, 50L, 100L, can also be designed and produced in accordance with the user's requirements.

Internal circulation function: the heatless centrifugal circulation pump is used to avoid the traditional water pump from affecting the temperature field of the tank due to its own heat production. The internal circulation system is designed based on the principle of porous U-shaped reflux circulation, which realizes the turbulent flow and high uniformity of the flow field and temperature field in the tank.

The fuselage shell is made of anti-aging electrostatic spraying technology, and the inner tank and table top are made of good S304 brushed stainless steel.

The finely crafted front panel and countertop, coupled with the unique humanized R-rounded corner design structure, can prevent operators from inadvertently being injured by edges and corners.

The water discharge system can meet the needs of various laboratories and enterprises for production and liquid exchange.

Safety protection device:

1. It has the function of power-off protection

2. It has the function of setting the upper and lower limit temperature alarm

3. Low water level protection and alarm function

4. Temperature runaway protection and alarm function

5. The heating device has the function of low water level anti-dry burning and explosion-proof

6. Compressor overheating and overcurrent multiple protection functions

Optional functions

1. Optional extended external PT100 temperature sensor, which can detect and control the temperature of the external system in real time during external circulation.

2. Built-in 1~30 temperature control program or constant speed program temperature control can be selected, which can automatically program temperature control and display the set temperature-time program running status in real time.

3. RS232 or RS485 communication interface can be selected to easily connect to the host computer, with ModbusRTU communication protocol.

4. Optionally design and install a magnetic stirring system, which can directly stir the liquid samples in the beaker in the thermostatic bath workshop, without the need for an external vertical mixer, reducing redundant operations.

5. The built-in cooling coil of the tank can be optional, which can quickly cool down and control the exothermic reaction of the system.

6. Optional height-adjustable immersion loading platform can easily adjust the liquid level height of the immersion sample.

7. Optional horizontal modeling, with compact structure, lower center of gravity, strong stability and other characteristics.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
