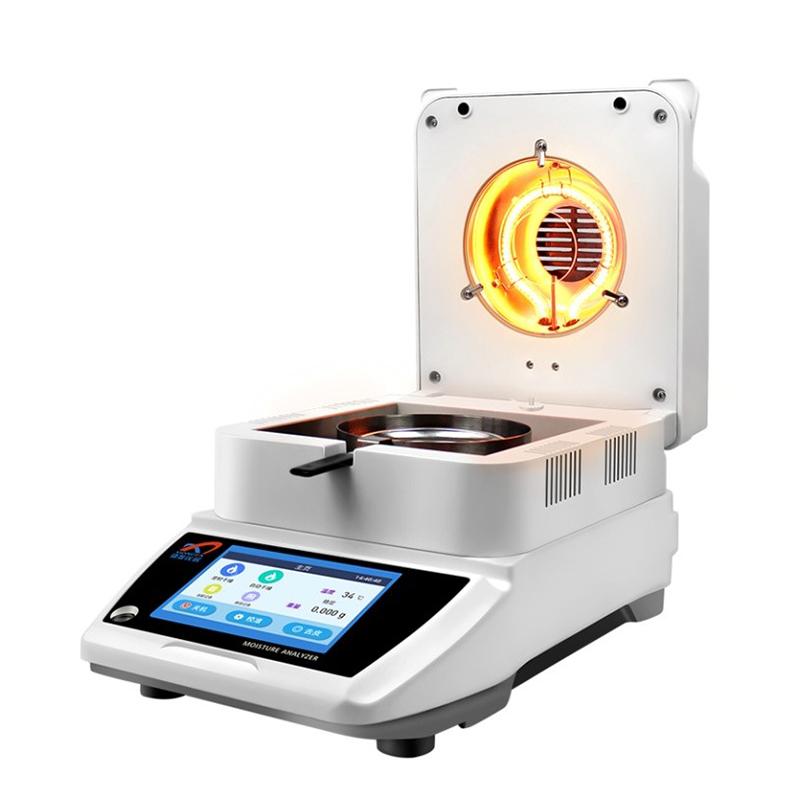

XIONGFA XF-1005MB halogen Fast Moisture Analyzer 100g/180 ℃
SE
XF-1005MB
-
XIONGFA XF-1203MA halogen Fast Moisture Analyzer 120g/200 ℃$ 517.00SE -
Xiongfa XFSFY-120A Halogen Moisture Meter Graduation 0.001g Moisture accuracy 0.01%$ 599.00SE -
XIONGFA XF-1203MB halogen Fast Moisture Analyzer 120g/180 ℃$ 444.00SE -
XIONGFA XF-1102MA halogen Fast Moisture Analyzer 110g/200 ℃$ 476.00SE -
XIONGFA XF-1102MB Tea halogen Moisture Analyzer 110g/180 ℃$ 377.00SE
XIONGFA XF-1005MB Halogen Fast Moisture AnalyzerSPEC
XIONGFA XF-1005MB Halogen Fast Moisture AnalyzerDetails
XIONGFA XF-1005MB Halogen Fast Moisture AnalyzerPacking list
- SKU
- NB034718
- Maximum weighing value
- 0.005~100g
- Water readability
- 0.02%
- Moisture range
- 0.02~100.00%
- Weighing Sensors
- Domestic (CN)
- Heating temperature range
- 180℃
- data storage
- 10 groups
- Sample tray
- Φ85mm (material aluminum, can be washed and used repeatedly)
- Test method
- Automatic/Manual/Timing
- test data
- Moisture content, dry-wet ratio (Solid content), Weight (before and after drying), wet Weight ratio, moisture regain
- Communication interface
- Standard RS232 interface
- Baud rate
- 9600/S bit
- Power
- Voltage 220V ± 10% Frequency 50HZ ± 1HZ
- Display
- 5 inch touch screen display
- Product size
- 370*215*195mm
- Dimensions
- 445*300*330mm
- Net Weight
- 3.5kg
- Gross Weight
- 4.5kg
Introduction
XF series rapid moisture analyzer is a new type of rapid moisture analyzer, which can be used to determine the moisture content of any substance (except for substances that undergo dangerous chemical reactions through heating). At the same time, the halogen heating unit and the moisture evaporation channel dry the samples quickly. During the drying process, the instrument continuously measures and immediately displays the moisture content % lost in the sample during the drying process. After the drying is completed, the final measured moisture content is locked. Press the switch button to observe the moisture value, weight initial value, initial value, test data such as time.
Halogen Moisture Meter can be used in all industries that need to measure moisture quickly, such as medicine, food, tobacco, chemical industry, tea, food, textile, agriculture and forestry, etc. The Moisture Meter can communicate with the computer, and print out the test moisture data results through the computer, or directly print out the test moisture data results through the optional printer.
Models
| model | Weighing range | moisture readability | Test Range |
| XF-1005MB | 0.005-100g | 0.0002 | 0.02%-100.00% |
| XF-1005MA | 0.005-100g | 0.0002 | 0.02%-100.00% |
| XF-1102MB | 0.002-110g | 0.0001 | 0.01%-100.00% |
| XF-1102MA | 0.002-110g | 0.0001 | 0.01%-100.00% |
| XF-1203MB | 0.001-120g | 0.0001 | 0.01%-100.00% |
| XF-1203MA | 0.001-120g | 0.0001 | 0.01%-100.00% |
| Other parameters | |||
| heating temperature | MA is 200°C; MB is 180°C | ||
| load cell | MA has passed HBM; MB is made in CHINA | ||
| Sample pan size | φ85mm (material aluminum, can be cleaned and used repeatedly) | ||
| test method | Auto/Manual/Timing | ||
| Test Data | Moisture content, dry-wet ratio (solid content), weight (before and after drying), wet weight rate, moisture regain | ||
| Communication Interface | Standard RS232 interface | ||
| baud rate | 9600/S bit | ||
| Power supply | Voltage 220V±10% Frequency 50HZ±1HZ | ||
| monitor | 5 inch touch screen display | ||
| digital storage | MA is 20 groups; MB is 10 groups | ||
